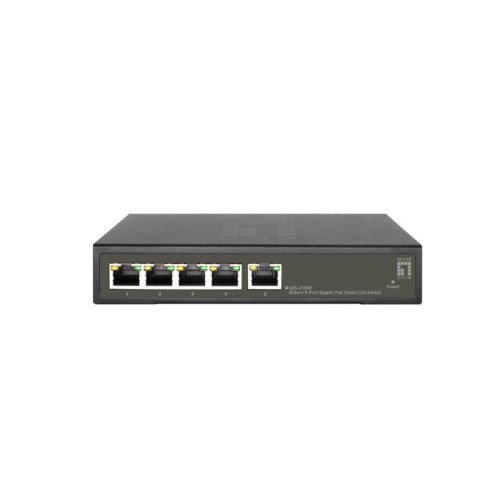

NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE

NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE
NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE
  • Switch type: Managed
  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Switching capacity: 10
Врз основа на 0 коментари. - Напиши коментар
7,805ден.
  • Достапност: Има залиха
  • Шифра: 430884
  • Гарантен рок: 12 месеци
  • Рок на испорака: 13-16 дена
LEVELONE
Во кошничка
Листа на желби Спореди
Сподели

Technical Specifications

  • Summary: LevelOne Hilbert 5-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 4 PoE Outputs, 60W PoE Power Budget. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
  • Vendor Homepage: https://www.level1.com/level1_en/ges-2105p-hilbert-5-port-gigabit-poe-smart-lite-switch-802-3at-af-poe-4-poe-outputs-60w-poe-power-budget-52090703101
  • Name: NET SWITCH 5PORT 4POE 1000M/GES-2105P LEVELONE
  • Category Code: SWI
  • Model name: GES-2105P
  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
  • Copper ethernet cabling technology: 1000BASE-T/100BASE-TX/10BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • MAC address auto-aging supported: Yes
  • MAC address auto-learning supported: Yes
  • Rate limiting: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 32
  • Switching capacity: 10
  • MAC address table: 2000
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 1.5
  • IGMP snooping: Yes
  • Multicast support: Yes
  • Product colour: Black
  • LED indicators: Yes
  • Flash memory: 2
  • Noise level: 0
  • Mean time between failures (MTBF): 43800
  • Power source: DC/PoE
  • Power supply included: Yes
  • Input current: 1.2
  • Input voltage: 54
  • Power consumption (max): 65
  • Surge protection: Yes
  • Surge protection voltage: 8
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Power over Ethernet (PoE) power per port: 30
  • Total Power over Ethernet (PoE) budget: 60
  • Operating temperature (T-T): 0 - 45
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 90
  • Storage relative humidity (H-H): 5 - 95
  • Heat dissipation: 23.88
  • Width: 160
  • Depth: 95
  • Height: 29
  • Weight: 400
  • Cables included: AC
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Package type: Box
  • Package width: 310
  • Package depth: 230
  • Package height: 65
  • Package weight: 920
  • Sustainability compliance: Yes
  • Compliance certificates: CE/RoHS
  • Master (outer) cases per pallet (air): 18
  • Pallet gross length: 800
  • Pallet gross width: 1200
  • Pallet height (air): 1584
  • Certification: UKCA, FCC Class A
  • Master (outer) case net weight: 600
  • Country of origin: China
  • Master (outer) case width: 350
  • Master (outer) case length: 330
  • Master (outer) case height: 480
  • Master (outer) case gross weight: 9800
  • Products per master (outer) case: 10
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.005376
  • Unit Calculated Weight: 1
