ECS-AGGREGATION

ECS-AGGREGATION
ECS-AGGREGATION
  • Switch type: Managed
  • Switch layer: L2/L3
  • Switching capacity: 3600
Врз основа на 0 коментари. - Напиши коментар
283,252ден.
  • Достапност:
  • Бренд: UBIQUITI
  • Шифра: 436397
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Ubiquiti UniFi ECS-Aggregation. Switch type: Managed, Switch layer: L2/L3. Switching capacity: 3600 Gbit/s. Rack mounting, Form factor: 1U
  • Vendor Homepage: https://store.ui.com/us/en/products/ecs-aggregation
  • Name: NET SWITCH ENTERPRISE CAMPUS/ECS-AGGREGATION UBIQUITI
  • Category Code: SWI
  • Model: ECS-AGGREGATION
  • Model name: Enterprise Campus Aggregation
  • Switch type: Managed
  • Switch layer: L2/L3
  • QSFP28 ports quantity: 6
  • SFP28 ports quantity: 48
  • 10G support: Yes
  • Port mirroring: Yes
  • Broadcast storm control: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Switching capacity: 3600
  • Throughput: 1800
  • Forwarding rate: 2300
  • Jumbo frames support: Yes
  • DHCP features: DHCP guarding/DHCP relay/DHCP snooping
  • IGMP snooping: Yes
  • Loop protection: Yes
  • MAC address filtering: Yes
  • Multicast support: Yes
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Grey
  • LED indicators: Yes
  • Power source: AC
  • Power supply included: Yes
  • Number of power supply units: 2
  • AC input voltage: 100 - 240
  • Power consumption (max): 340
  • Operating temperature (T-T): -5 - 40
  • Operating relative humidity (H-H): 10 - 95
  • Width: 442.4
  • Depth: 496
  • Height: 43.7
  • Weight: 9900
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.1109
  • Unit Calculated Weight: 17.4
Specifications
10G supportYes
AC input voltage100 - 240
Broadcast storm controlYes
Depth496
DHCP featuresDHCP guarding/DHCP relay/DHCP snooping
Flow control supportYes
Form factor1U
Height43.7
IGMP snoopingYes
Jumbo frames supportYes
LED indicatorsYes
Link aggregationYes
Loop protectionYes
MAC address filteringYes
Multicast supportYes
Number of power supply units2
Operating relative humidity (H-H)10 - 95
Operating temperature (T-T)-5 - 40
Port mirroringYes
Power consumption (max)340
Power supply includedYes
Product colourGrey
QSFP28 ports quantity6
Rack mountingYes
SFP28 ports quantity48
SummaryUbiquiti UniFi ECS-Aggregation. Switch type: Managed, Switch layer: L2/L3. Switching capacity: 3600 Gbit/s. Rack mounting, Form factor: 1U
Switch layerL2/L3
Throughput1800
Weight9900
Width442.4
Specs
Category CodeSWI
Description

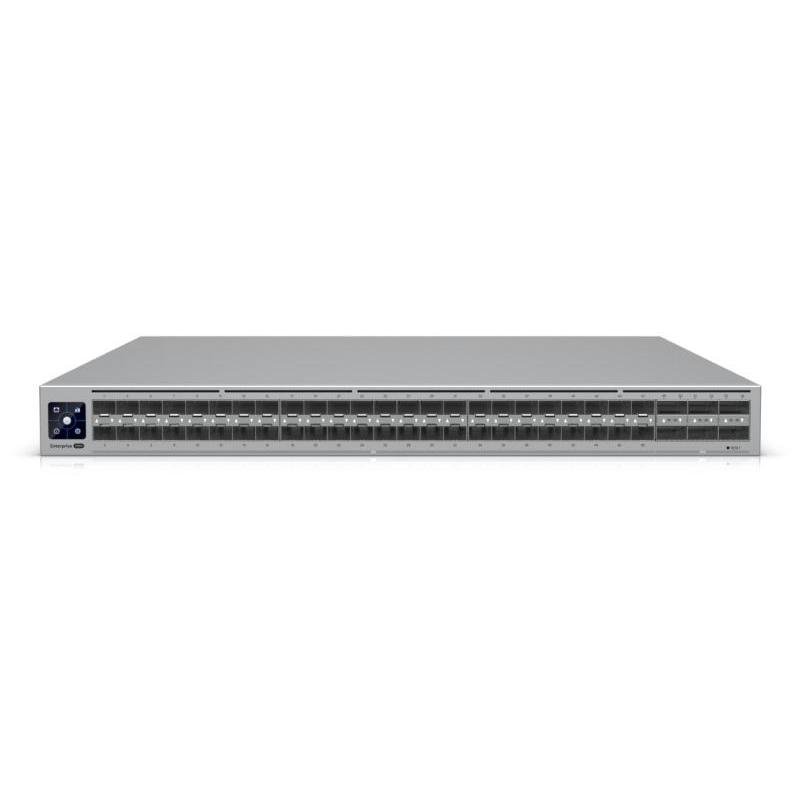

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.

  • (48) 25G SFP28 and (6) 100G QSFP28 ports
  • Multi-Chassis Link Aggregation (MC-LAG) support
  • Layer 3 automatic failover (VRRP) support
  • BGP Dynamic Routing
  • (2) included hot-swappable power modules, with 1+1 redundancy
  • (5) included hot-swappable fan modules, with 4+1 redundancy

Forwarding rate2300
ModelECS-AGGREGATION
Model nameEnterprise Campus Aggregation
NameNET SWITCH ENTERPRISE CAMPUS/ECS-AGGREGATION UBIQUITI
PictureUrlhttps://static.elko.cloud/ProductImages/ffa0df23-001c-4d00-aa05-14f623d633f4.Jpeg
Power sourceAC
Switch typeManaged
Switching capacity3600
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/ffa0df23-001c-4d00-aa05-14f623d633f4.Jpeg
Unit Calculated Volume0.1109
Unit Calculated Weight17.4
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://store.ui.com/us/en/products/ecs-aggregation
