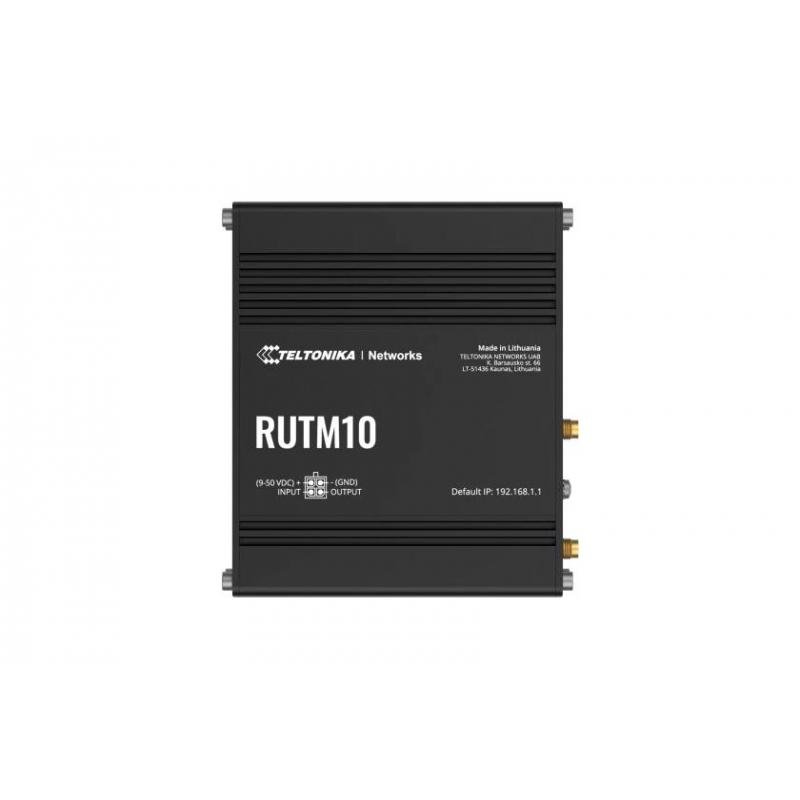

RUTM10 Industrial router

RUTM10 Industrial router
RUTM10 Industrial router
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867
  • Ethernet LAN data rates: 10/100/1000
  • Ethernet LAN (RJ-45) ports: 4
  • USB port: Yes
Врз основа на 0 коментари. - Напиши коментар
10,310ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 423886
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika RUTM10. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts..., Firewall security: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI;.... Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,.... Product type: Industrial router, Product colour: Black
  • Vendor Homepage: https://teltonika-networks.com/products/routers/rutm10
  • Name: NET ROUTER 10/100/1000M 4PORT/RUTM10 TELTONIKA
  • Category Code: WRO
  • Model: RUTM10
  • Model name: RUTM10
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867
  • Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
  • Ethernet WAN: Yes
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10/100/1000
  • Cabling technology: 10/100/1000Base-T(X)
  • Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Port forwarding: Yes
  • Load balancing system: Yes
  • Dynamic DNS (DDNS): Yes
  • Policy-based routing: Yes
  • SSID-based VLAN assignment: Yes
  • Static route: Yes
  • Support Samba (storage): Yes
  • Ethernet LAN (RJ-45) ports: 4
  • USB port: Yes
  • USB 2.0 ports quantity: 1
  • Quality of Service (QoS) support: Yes
  • Wake-on-LAN ready: Yes
  • Reset button: Yes
  • Intelligent Mesh technology: Yes
  • MU-MIMO technology: Yes
  • Security algorithms: AES-CCMP/EAP-TLS/OWE/TKIP/WPA2-Enterprise-PEAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK
  • Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
  • Firewall: Yes
  • Firewall security: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • DDoS protection: Yes
  • MAC address filtering: Yes
  • DMZ support: Yes
  • Network address translation (NAT): Yes
  • Routing protocols: BGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
  • Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
  • Product colour: Black
  • Indication light: Yes
  • Product type: Industrial router
  • Antenna design: External
  • Built-in processor: Yes
  • Processor manufacturer: MediaTek
  • Processor architecture: MIPS
  • Processor frequency: 880
  • Processor cores: 2
  • Internal memory: 256
  • Internal memory type: DDR3
  • Flash memory: 256
  • Operating system installed: RutOS
  • Power source type: DC
  • Power consumption (typical): 3.51
  • Operating relative humidity (H-H): 10 - 90
  • Operating temperature (T-T): -40 - 75
  • Depth: 95.2
  • Height: 32.2
  • Weight: 359
  • Width: 115
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00189
  • Unit Calculated Weight: 1
Specifications
Antenna designExternal
Authentication methodPre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
Auto MDI/MDI-XYes
Built-in processorYes
Cabling technology10/100/1000Base-T(X)
DDoS protectionYes
Depth95.2
DMZ supportYes
Dynamic DNS (DDNS)Yes
Ethernet LANYes
Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10/100/1000
Ethernet LAN interface typeGigabit Ethernet
Ethernet WANYes
FirewallYes
Firewall securityPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Flash memory256
Height32.2
Indication lightYes
Intelligent Mesh technologyYes
Internal memory256
Internal memory typeDDR3
Load balancing systemYes
MAC address filteringYes
MU-MIMO technologyYes
Network address translation (NAT)Yes
Networking standardsIEEE 802.3/IEEE 802.3az/IEEE 802.3u
Operating relative humidity (H-H)10 - 90
Operating system installedRutOS
Operating temperature (T-T)-40 - 75
Policy-based routingYes
Port forwardingYes
Power consumption (typical)3.51
Power source typeDC
Processor architectureMIPS
Processor cores2
Processor frequency880
Processor manufacturerMediaTek
Product colourBlack
Quality of Service (QoS) supportYes
Reset buttonYes
Routing protocolsBGP/EIGRP/NHRP/OSPFv2/RIP-1/RIP-2
Security algorithmsAES-CCMP/EAP-TLS/OWE/TKIP/WPA2-Enterprise-PEAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK
SSID-based VLAN assignmentYes
Static routeYes
SummaryTeltonika RUTM10. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts..., Firewall security: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI;.... Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,.... Product type: Industrial router, Product colour: Black
Support Samba (storage)Yes
Supported network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
USB 2.0 ports quantity1
USB portYes
Wake-on-LAN readyYes
Weight359
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Width115
WLAN data transfer rate (max)867
Specs
Category CodeWRO
Description

RUTM10
WIRED WI-FI ROUTER
The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.

- INTERFACES
4 x Gigabit RJ45 ports with up to 128 tag/port-based VLANs supported
- WI-FI 5
Dual-band Wi-Fi with mesh and fast-roaming functionalities
- VPN
Numerous VPN Protocols supported, including OpenVPN, IPsec, and Tailscale
- M2M PROTOCOLS
Multiple industrial protocols supported, including MQTT, Modbus, DNP3, DLMS

ModelRUTM10
Model nameRUTM10
NameNET ROUTER 10/100/1000M 4PORT/RUTM10 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/7835bf69-ad9d-4d15-ac03-740be6108939.Jpeg
Product TypeIndustrial router
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/7835bf69-ad9d-4d15-ac03-740be6108939.Jpeg
Unit Calculated Volume0.00189
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://teltonika-networks.com/products/routers/rutm10
