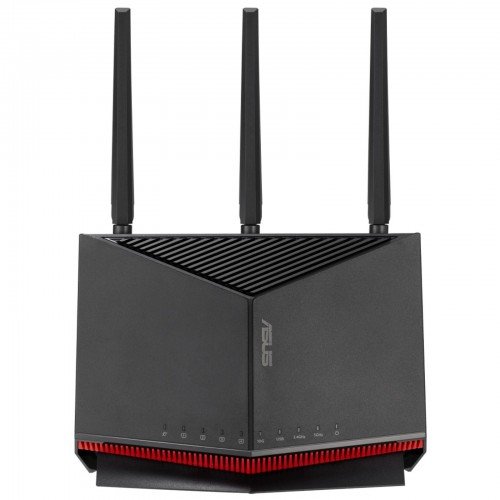

RT-BE86U Tabletop router

Technical Specifications

• Summary: ASUS RT-BE86U. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 5764 Mbit/s. Ethernet LAN interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n. Security algorithms: WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS, MAC address table: 64 entries, NAT functionality: PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through H.323 Pass-Through SIP.... Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WAN
• Vendor Homepage: https://www.asus.com/networking-iot-servers/wifi-routers/asus-wifi-routers/rt-be86u/
• Name: WRL ROUTER 6800MBPS/DUAL BAND RT-BE86U ASUS
• Category Code: WRO
• Model name: RT-BE86U
• Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• WLAN data transfer rate (max): 5764
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
• WLAN data transfer rate (first band): 1032
• WLAN data transfer rate (second band): 5764
• Ethernet WAN: Yes
• WAN connection type: RJ-45
• Ethernet LAN: Yes
• Ethernet LAN interface type: 10 Gigabit Ethernet
• Ethernet LAN data rates: 10/100/1000/10000/2500
• Networking standards: IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n
• Port forwarding: Yes
• Port triggering: Yes
• Dynamic DNS (DDNS): Yes
• Support Samba (storage): Yes
• Media server: Yes
• VPN server: VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard
• VPN support: Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark
• Ethernet LAN (RJ-45) ports: 4
• USB port: Yes
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• DC-in jack: Yes
• Web-based management: Yes
• Bandwidth control: Yes
• Quality of Service (QoS) support: Yes
• Wake-on-LAN ready: Yes
• Reset button: Yes
• Intelligent Mesh technology: Yes
• WPS push button: Yes
• MU-MIMO technology: Yes
• Security algorithms: WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Personal/WPS
• Firewall: Yes
• Guest access: Yes
• Parental control: Yes
• Filtering: Yes
• MAC address filtering: Yes
• MAC address table: 64
• URL filtering: Yes
• DMZ support: Yes
• Network address translation (NAT): Yes
• NAT functionality: PPTP Pass-Through L2TP Pass-Through IPSec Pass-Through RTSP Pass-Through H.323 Pass-Through SIP Pass-Through PPPoE Relay
• DHCP server: Yes
• Product colour: Black
• Indication light: Yes
• LED indicators: LAN,Power,WAN
• On/off switch: Yes
• Product type: Tabletop router
• Cables included: LAN (RJ-45)
• AC adapter included: Yes
• Warranty card: Yes
• Quick start guide: Yes
• Packaging content: RT-BE86U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card
• Antenna design: Internal & external
• Antennas quantity: 4
• Built-in processor: Yes
• Processor frequency: 2.6
• Processor cores: 4
• Internal memory: 1000
• Flash memory: 256
• Firmware upgradeable: Yes
• Power source type: DC
• AC input voltage: 110 - 240
• AC input frequency: 50/60
• Output voltage: 12
• Output current: 5
• Depth: 90
• Height: 316
• Weight: 854
• Width: 235
• Package type: Box
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009152
• Unit Calculated Weight: 2
