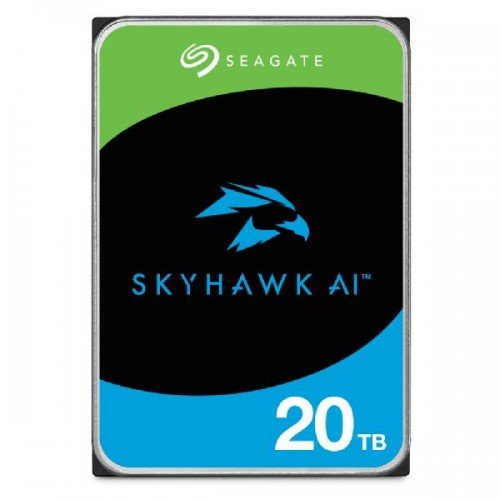

HDD SATA 20TB 7200RPM 256MB/ST20000VE003 SEAGATE

Technical Specifications

• Summary: Seagate SkyHawk AI. HDD capacity: 20 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III
• Vendor Homepage: https://www.seagate.com/gb/en/products/surveillance-drives/skyhawk-hard-drive/
• Name: HDD SATA 20TB 7200RPM 256MB/ST20000VE003 SEAGATE
• Category Code: HDU
• Model: Seagate SkyHawk AI
• HDD Family name: SkyHawk AI
• HDD capacity: 20000
• HDD speed: 7200
• Storage drive buffer size: 512
• HDD size: 3.5
• Interface: Serial ATA III
• Type: HDD
• Component for: Surveillance system
• HDD interface transfer rate: 6
• HDD sustained transfer rate: 260
• Uncorrectable Bit Error Rate (UBER): < 1 per 10^15 bits read
• Rotational Vibration (RV) sensors: Yes
• Number of AI channels: 32
• Start/stop cycles: 600000
• Mean time between failures (MTBF): 2000000
• Power consumption (typical): 7.72
• Power consumption (standby): 1
• Power consumption (idle): 3.5
• Operating voltage: 5 / 12
• Start-up current: 2
• Operating temperature (T-T): 0 - 65
• Width: 101.85
• Depth: 146.99
• Height: 26.11
• Weight: 680
• Harmonized System (HS) code: 84717050
• Products per pallet layer: 8
• Master (outer) cases per pallet: 40
• Products per master (outer) case: 20
• Maximum number of cameras supported: 64
• Units per Pallet: 0
• Units per Shipping Box: 20
• Unit Calculated Volume: 0.001623
• Unit Calculated Weight: 1
