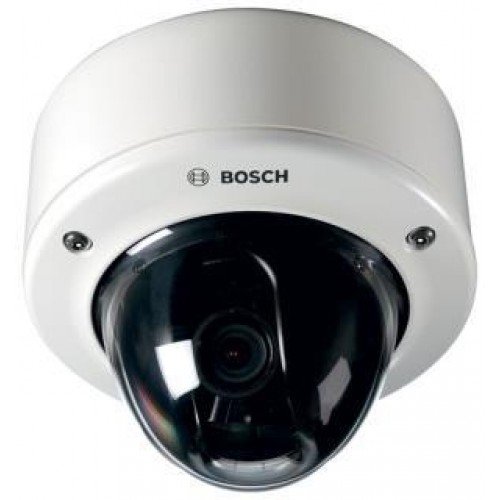

NET CAMERA 1080P IP DOME/NIN-73023-A3AS BOSCH

Technical Specifications

• Summary: Bosch FLEXIDOME IP starlight 7000. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0075 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 117°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1280 x 720 pixels. Focus: Motorized
• Vendor Homepage: https://www.boschsecurity.com/
• Name: NET CAMERA 1080P IP DOME/NIN-73023-A3AS BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• LED indicators: Yes
• Housing material: Aluminium
• Protection features: Impact resistant
• International Protection (IP) code: IP66
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• Auto-tracking: Yes
• Day/night mode: Yes
• Alarm input/output: Yes
• Minimum illumination: 0.0075
• Angle of rotation: 270
• Lens viewing angle, horizontal: 117
• Lens viewing angle, vertical: 59
• Tilt angle range: 0 - 90
• Pan range: 0 - 360
• Camera shutter type: Electronic
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 1280 x 720
• Sensor type: CMOS
• Zoom capability: Yes
• Auto focus: Yes
• Focus: Motorized
• Maximum resolution: 1920 x 1080
• Total megapixels: 1
• Video compression formats: H.264/M-JPEG
• Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/704 x 480/768 x 432
• Supported video modes: 1080p/480p/720p
• Frame rate: 60
• Analog signal format system: NTSC/PAL
• Video streaming: Yes
• Noise reduction: Yes
• Flip & mirror: Yes
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Privacy masking: Yes
• Region of Interest (ROI) encoding: Yes
• Time stamp overlay: Yes
• Audio system full duplex: Yes
• Audio formats supported: G.711/LC-AAC
• Sample rate: 16
• Signal-to-Noise Ratio (SNR): 50
• Ethernet LAN: Yes
• Networking standards: IEEE 802.3af/IEEE 802.3at
• Cabling technology: 10/100Base-T(X)
• Quality of Service (QoS) support: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Maximum memory card size: 2000
• Ethernet LAN (RJ-45) ports: 1
• HTTPS encryption: Yes
• Security algorithms: 3DES/802.1x RADIUS/DES/MD5/SHA-1/SHA-256/SNMP
• Firmware upgradeable: Yes
• Power source type: PoE
• Power consumption (typical): 7.2
• DC output voltage: 48
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -34 - 74
• Storage temperature (T-T): -50 - 70
• Operating relative humidity (H-H): 5 - 93
• Storage relative humidity (H-H): 5 - 98
• Depth: 158
• Height: 124
• Weight: 850
• Number of cameras: 1
• Iris: Yes
• Lens mount interface: Board mount
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008
• Unit Calculated Weight: 1
