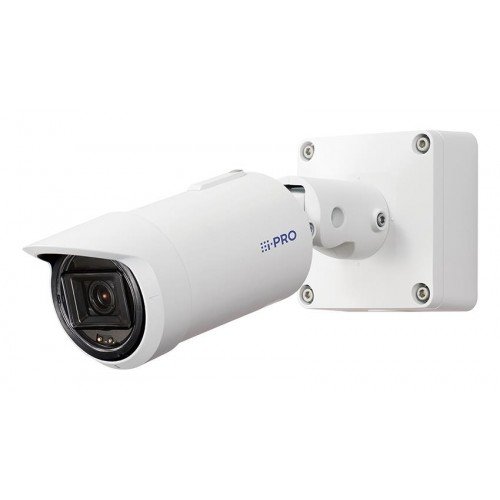

NET CAMERA 2MP BULLET AI OUTD./VANDAL WV-S1536LTNA I-PRO

Technical Specifications

• Summary: i-PRO WV-S1536LTNA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 11 - 36°, Lens viewing angle, vertical: 9 - 20°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 6.9x, Focal length range: 9 - 21 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s1536ltna
• Name: NET CAMERA 2MP BULLET AI OUTD./VANDAL WV-S1536LTNA I-PRO
• Category Code: FNC
• Form factor: Bullet
• Mounting type: Ceiling/wall
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)/Resin
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Alarm input/output: Yes
• Dynamic range: 144
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
• Minimum illumination: 0.008
• Lens viewing angle, horizontal: 11 - 36
• Lens viewing angle, vertical: 9 - 20
• Tilt angle range: -100 - 100
• Pan range: -180 - 180
• White balance: ATW/AWC
• Camera shutter speed: 1/60 - 1/10000
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 6.9
• Number of lenses: 1
• Focal length range: 9 - 21
• Auto focus: Yes
• Focus: Motorized
• Maximum aperture number: 3
• Minimum aperture number: 1.7
• Closest focusing distance: 29.2
• Detect distance (tele): 291.7
• Detect distance (wide): 118.2
• Identify distance (tele): 11.8
• Identify distance (wide): 58.3
• Observe distance (tele): 116.7
• Observe distance (wide): 47.3
• Recognize distance (tele): 23.6
• Recognize distance (wide): 4.7
• Night vision: Yes
• Night vision distance: 70
• LED type: IR
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
• Frame rate: 60
• Video intelligence analytic: Yes
• Analog signal format system: NTSC/PAL
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Bit rate range: 16 - 128
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3af
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
• Privacy protection: Yes
• Web-based management: Yes
• Web browser: Yes
• Power source type: DC,PoE
• Power consumption (typical): 10.8
• Power consumption (Power over Ethernet (PoE)): 10.6
• Operating temperature (T-T): -40 - 60
• Operating relative humidity (H-H): 10 - 100
• Width: 133
• Depth: 383
• Height: 133
• Weight: 2400
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0153
• Unit Calculated Weight: 3
