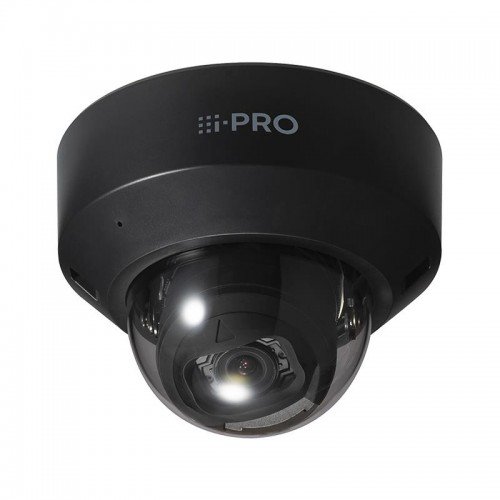

NET CAMERA 2MP DOME AI INDOOR/WV-S2136A-B I-PRO

Technical Specifications

• Summary: i-PRO WV-S2136A-B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Product colour: Black, Form factor: Dome, Housing material: Acrylic, Acrylonitrile butadiene styrene (ABS). Minimum illumination: 0.006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 36 - 115°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 9.3x, Focal length range: 2.9 - 9 mm, Focus: Motorized/Manual
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2136a-b
• Name: NET CAMERA 2MP DOME AI INDOOR/WV-S2136A-B I-PRO
• Category Code: FNC
• Form factor: Dome
• Product colour: Black
• Housing material: Acrylic/Acrylonitrile butadiene styrene (ABS)
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Alarm input/output: Yes
• Dynamic range: 144
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
• Camera tilt control: Yes
• Minimum illumination: 0.006
• Angle of rotation: 360
• Lens viewing angle, horizontal: 36 - 115
• Lens viewing angle, vertical: 20 - 61
• Tilt angle range: -30 - 85
• White balance: ATW/AWC
• Camera shutter speed: 1/60 - 1/10000
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 5.57 x 3.13
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 9.3
• Number of lenses: 1
• Focal length range: 2.9 - 9
• Auto focus: Yes
• Focus: Motorized/Manual
• Maximum aperture number: 2.5
• Minimum aperture number: 1.3
• Closest focusing distance: 0.3
• Detect distance (tele): 118.2
• Detect distance (wide): 24.5
• Identify distance (tele): 11.8
• Identify distance (wide): 2.4
• Observe distance (tele): 47.3
• Observe distance (wide): 9.8
• Recognize distance (tele): 23.6
• Recognize distance (wide): 4.9
• Maximum resolution: 2048 x 1536
• Total megapixels: 2
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
• Frame rate: 60
• Video intelligence analytic: Yes
• Analog signal format system: NTSC/PAL
• Noise reduction: Yes
• Gain control type: Auto
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Brightness
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Bit rate range: 16 - 128
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP,
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Composite video out: 1
• Microphone in: Yes
• Terminal block port: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• Intelligent Video Surveillance (IVS) system features: Abnormal sound detection/Face detection/Scene change/Vehicle detection
• Video motion detection: Yes
• Web browser: Yes
• Power source type: DC,PoE
• AC input voltage: 12-48
• Power consumption (typical): 4.9
• Power consumption (Power over Ethernet (PoE)): 5.3
• Operating temperature (T-T): -10 - 50
• Operating relative humidity (H-H): 10 - 90
• Width: 129.5
• Depth: 129.5
• Height: 101
• Weight: 470
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.7
