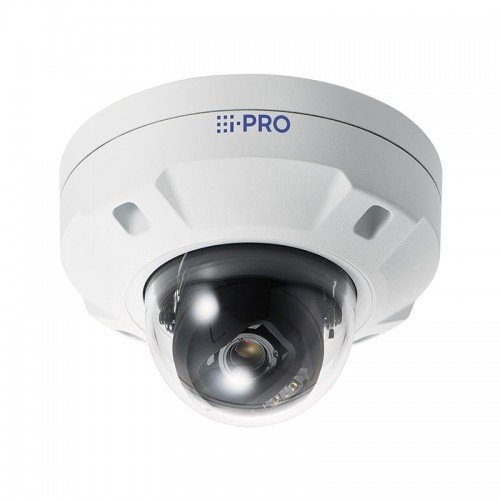

NET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LTA I-PRO

NET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LTA I-PRO
NET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LTA I-PRO
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
56,678ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 454083
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S2536LTA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 2.3x, Focal length range: 9 - 21 mm, Detect distance (wide): 118.2 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2536lta
  • Name: NET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LTA I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Minimum illumination: 0
  • White balance: ATW/AWC
  • Number of Privacy masking areas: 8
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 2.3
  • Focal length range: 9 - 21
  • Auto focus: Yes
  • Detect distance (tele): 291.7
  • Detect distance (wide): 118.2
  • Identify distance (tele): 29.2
  • Identify distance (wide): 11.8
  • Observe distance (tele): 116.7
  • Observe distance (wide): 47.3
  • Recognize distance (tele): 58.3
  • Recognize distance (wide): 23.6
  • Night vision: Yes
  • Night vision distance: 70
  • LED type: IR
  • Maximum resolution: 2048 x 1536
  • Total megapixels: 2
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/320 x 180/640 x 360
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: G.711/G.726
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Number of users: 14
  • Card reader integrated: Yes
  • Compatible memory cards: SD/SDHC/SDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Web browser: Yes
  • Power source type: DC,PoE
  • Power consumption: 860
  • Power consumption (typical): 10.3
  • Power consumption (Power over Ethernet (PoE)): 10.1
  • DC output voltage: 12
  • Operating temperature (T-T): -40 - 60
  • Operating relative humidity (H-H): 10 - 100
  • Height: 105
  • Diameter: 154
  • Weight: 1100
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Unit Calculated Volume: 0.00594
  • Unit Calculated Weight: 1.5
Specifications
Audio formats supportedG.711/G.726
Auto focusYes
Back Light Compensation (BLC)Yes
Card reader integratedYes
Compatible memory cardsSD/SDHC/SDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
DC output voltage12
Detect distance (tele)291.7
Detect distance (wide)118.2
Diameter154
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range9 - 21
Form factorDome
Height105
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)29.2
Identify distance (wide)11.8
IK codeIK10
International Protection (IP) codeIP66
LED typeIR
Maximum resolution2048 x 1536
Minimum illumination0
Mounting typeCeiling
Night visionYes
Night vision distance70
Number of cameras1
Number of Privacy masking areas8
Number of users14
Observe distance (tele)116.7
Observe distance (wide)47.3
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.8
Optical zoom2.3
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))10.1
Power consumption (typical)10.3
Power source typeDC,PoE
Product colourWhite
Recognize distance (tele)58.3
Recognize distance (wide)23.6
Sensor typeCMOS
Summaryi-PRO WV-S2536LTA. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. White balance: ATW, AWC. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 2.3x, Focal length range: 9 - 21 mm, Detect distance (wide): 118.2 m
Supported graphics resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/320 x 180/640 x 360
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Total megapixels2
TypeIP security camera
Web browserYes
Weight1100
White balanceATW/AWC
Zoom capabilityYes
Specs
Category CodeFNC
Description

  • 2MP Outdoor dome camera
  • Up to 2 Edge AI analytic apps
  • Built-in IR-LED(70m, 230ft)
  • IP66, IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 2MP DOME AI OUTDOOR/VANDAL WV-S2536LTA I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/349f24e6-8849-4520-b9af-a29c8683d6d5.Jpeg
Power consumption860
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/349f24e6-8849-4520-b9af-a29c8683d6d5.Jpeg
Unit Calculated Volume0.00594
Unit Calculated Weight1.5
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s2536lta
