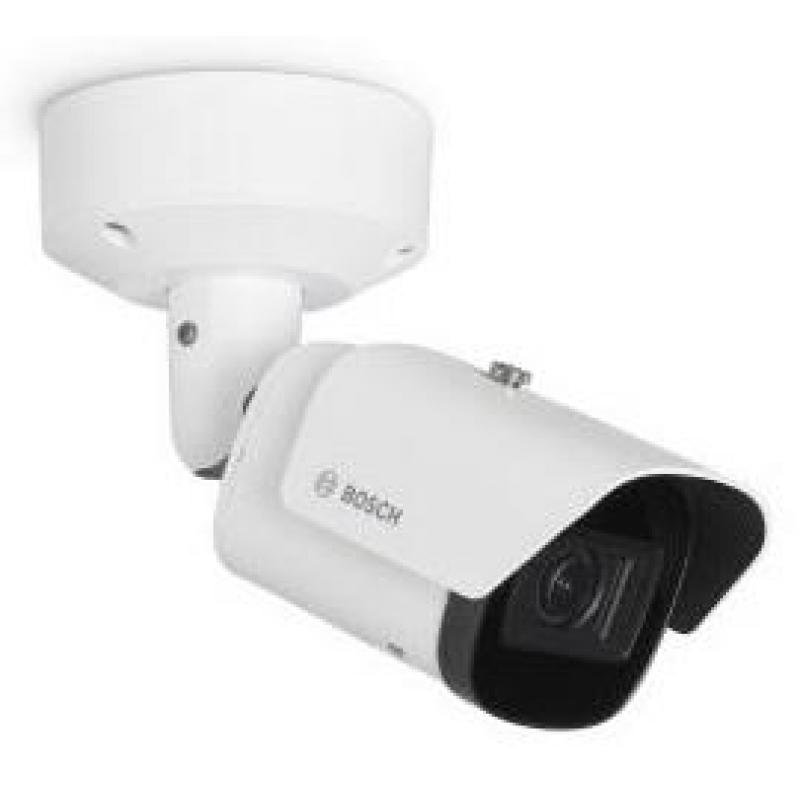

NET CAMERA 2MP IP BULLET/NBE-5702-AL BOSCH

NET CAMERA 2MP IP BULLET/NBE-5702-AL BOSCH
NET CAMERA 2MP IP BULLET/NBE-5702-AL BOSCH
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
62,860ден.
  • Достапност: Има залиха
  • Бренд: BOSCH
  • Шифра: 418758
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch NBE-5702-AL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.004 lx, Lens viewing angle, horizontal: 105 - 31°, Lens viewing angle, vertical: 57 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Focal length range: 3.2 - 10.5 mm
  • Vendor Homepage: https://commerce.boschsecurity.com/us/en/DINION-5100i-IR/p/F.01U.393.997/
  • Name: NET CAMERA 2MP IP BULLET/NBE-5702-AL BOSCH
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/Pole
  • Product colour: Black/White
  • Housing material: Aluminium/Plastic
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10
  • Country of origin: Thailand
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Minimum illumination: 0.004
  • Lens viewing angle, horizontal: 105 - 31
  • Lens viewing angle, vertical: 57 - 18
  • White balance: Auto/Manual/Sodium lamp
  • Camera shutter type: Electronic
  • Number of Privacy masking areas: 8
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 1920 x 1080
  • Sensor type: CMOS
  • Focal length range: 3.2 - 10.5
  • Night vision: Yes
  • Night vision distance: 60
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/768 x 432
  • Frame rate: 60
  • Video streaming: Yes
  • Privacy masking: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711
  • Signal-to-Noise Ratio (SNR): 55
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/ TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, noip.com); SMTP;
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • USB port: Yes
  • Mirror: Yes
  • Security algorithms: 128-bit AES/256-bit AES/MD5/SHA-1/SHA-256/TLS
  • Power source type: AC,DC,PoE
  • AC input voltage: 24
  • DC output voltage: 12
  • Operating temperature (T-T): -40 - 55
  • Storage temperature (T-T): -30 - 70
  • Operating relative humidity (H-H): 5 - 93
  • Storage relative humidity (H-H): 0 - 98
  • Height: 97
  • Length: 148
  • Weight: 2500
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.027
  • Unit Calculated Weight: 3
Specifications
AC input voltage24
Alarm input/outputYes
Audio formats supportedAAC-LC/G.711
Audio system full duplexYes
Camera shutter typeElectronic
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Country of originThailand
Day/night modeYes
DC output voltage12
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range3.2 - 10.5
Form factorBullet
Frame rate60
Height97
Housing materialAluminium/Plastic
IK codeIK10
Infra-red wavelength850
International Protection (IP) codeIP66, IP67
LED typeIR
Lens viewing angle, horizontal105 - 31
Lens viewing angle, vertical57 - 18
Maximum memory card size2000
Maximum resolution1920 x 1080
Minimum illumination0.004
MirrorYes
Mounting typeCeiling/Pole
Night visionYes
Night vision distance60
Number of cameras1
Number of effective pixels (H x V)1920 x 1080
Number of Privacy masking areas8
Operating relative humidity (H-H)5 - 93
Operating temperature (T-T)-40 - 55
Optical sensor size1/2.8
Placement supportedIndoor & outdoor
Power source typeAC,DC,PoE
Privacy maskingYes
Product colourBlack/White
Security algorithms128-bit AES/256-bit AES/MD5/SHA-1/SHA-256/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)0 - 98
Storage temperature (T-T)-30 - 70
SummaryBosch NBE-5702-AL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.004 lx, Lens viewing angle, horizontal: 105 - 31°, Lens viewing angle, vertical: 57 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Focal length range: 3.2 - 10.5 mm
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/768 x 432
Supported network protocolsIPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/ TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, noip.com); SMTP;
Total megapixels2
TypeIP security camera
USB portYes
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video streamingYes
Weight2500
White balanceAuto/Manual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

The camera is a versatile and professional surveillance camera for outdoor monitoring. It offers a 1/2.8’’ sensor and HDR technology at HD 1080p resolution with a built-in intelligent infrared illuminator that provides high performance in dark environments.
Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
The robust design and stable housing with sunshield prevent overexposure in certain periods of the day
and help to provide optimal image stability.

  • 1080p60 for highly detailed images
  • Starlight camera technology with excellent low-light performance
  • IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
  • Built-in intelligent IR illuminator with up to 60 m (197 ft) viewing distance

Length148
NameNET CAMERA 2MP IP BULLET/NBE-5702-AL BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/df1bdc92-8c2f-454d-9dc2-69fa0823fa49.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/df1bdc92-8c2f-454d-9dc2-69fa0823fa49.Jpeg
Unit Calculated Volume0.027
Unit Calculated Weight3
Units per Shipping Box1
Vendor Homepagehttps://commerce.boschsecurity.com/us/en/DINION-5100i-IR/p/F.01U.393.997/
