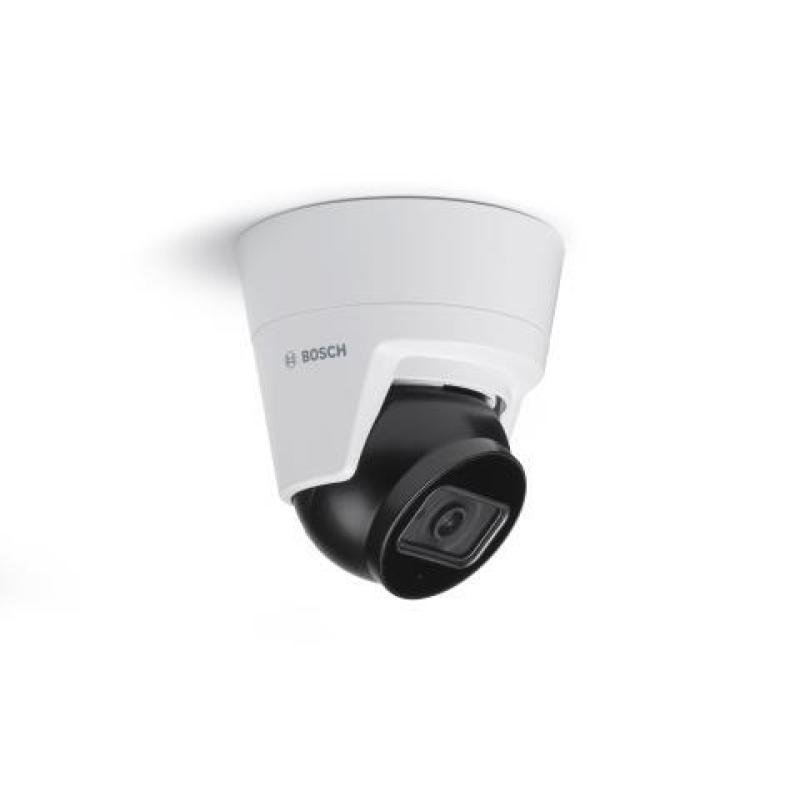

NET CAMERA 2MP IP DOME TURRET/NTV-3502-F02L BOSCH

NET CAMERA 2MP IP DOME TURRET/NTV-3502-F02L BOSCH
NET CAMERA 2MP IP DOME TURRET/NTV-3502-F02L BOSCH
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
19,391ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 304040
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch FLEXIDOME IP turret 3000i IR. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 350°, Tilt angle range: 0 - 78°, Pan range: 0 - 350°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 2MP IP DOME TURRET/NTV-3502-F02L BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Protection features: Impact resistant
  • International Protection (IP) code: IP42
  • IK code: IK08
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Certification: FCC, cULus, WEEE, RCM, VCCI, CMIM, EAC
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Field of view (FOV) angle: 350
  • Tilt angle range: 0 - 78
  • Pan range: 0 - 350
  • Camera shutter speed: 1/15000 - 1/25
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focal length: 2.8
  • Night vision: Yes
  • Night vision distance: 15
  • Number of illumination LEDs: 2
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Total megapixels: 2
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/640 x 480 (VGA)/720 x 480/768 x 432
  • Frame rate: 30
  • Noise reduction: Yes
  • Audio system full duplex: Yes
  • Signal-to-Noise Ratio (SNR): 55
  • Built-in microphone: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Di
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Ethernet LAN (RJ-45) ports: 1
  • Mirror: Yes
  • Video motion detection: Yes
  • Power source type: DC,PoE
  • Power consumption (typical): 3.1
  • Power consumption (Power over Ethernet (PoE)): 3.5
  • DC output voltage: 12
  • Operating temperature (T-T): -20 - 50
  • Storage temperature (T-T): -30 - 70
  • Operating relative humidity (H-H): 5 - 100
  • Storage relative humidity (H-H): 5 - 93
  • Height: 129
  • Diameter: 122
  • Weight: 576
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.1169
  • Unit Calculated Weight: 18
Specifications
Audio system full duplexYes
Built-in microphoneYes
Camera pan controlYes
Camera shutter speed1/15000 - 1/25
Camera tilt controlYes
Card reader integratedYes
CertificationFCC, cULus, WEEE, RCM, VCCI, CMIM, EAC
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output voltage12
Diameter122
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Field of view (FOV) angle350
Fixed focal length2.8
Form factorDome
Frame rate30
Height129
IK codeIK08
Infra-red wavelength850
International Protection (IP) codeIP42
Maximum resolution1920 x 1080
MirrorYes
Mounting typeCeiling
Night visionYes
Night vision distance15
Noise reductionYes
Number of cameras1
Number of illumination LEDs2
Number of lenses1
Operating relative humidity (H-H)5 - 100
Operating temperature (T-T)-20 - 50
Optical sensor size1/2.8
Pan range0 - 350
Placement supportedIndoor
Power consumption (Power over Ethernet (PoE))3.5
Power consumption (typical)3.1
Power source typeDC,PoE
Product colourWhite
Protection featuresImpact resistant
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage relative humidity (H-H)5 - 93
Storage temperature (T-T)-30 - 70
SummaryBosch FLEXIDOME IP turret 3000i IR. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 350°, Tilt angle range: 0 - 78°, Pan range: 0 - 350°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
Supported graphics resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/640 x 480 (VGA)/720 x 480/768 x 432
Supported network protocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), Di
Tilt angle range0 - 78
Total megapixels2
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video motion detectionYes
Weight576
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

  • 1080p and 5MP resolutions
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Fully configurable H.265 multi-streaming
  • High Dynamic Range (120 dB) for challenging bright and dark scenes
  • Built-in IR illuminator with 15 m (49 ft) viewing distance

NameNET CAMERA 2MP IP DOME TURRET/NTV-3502-F02L BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/6247f2e3-793f-4a5e-9052-141b27504df1.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/6247f2e3-793f-4a5e-9052-141b27504df1.Jpeg
Unit Calculated Volume0.1169
Unit Calculated Weight18
Units per Shipping Box1
Vendor Homepagehttps://www.boschsecurity.com/
