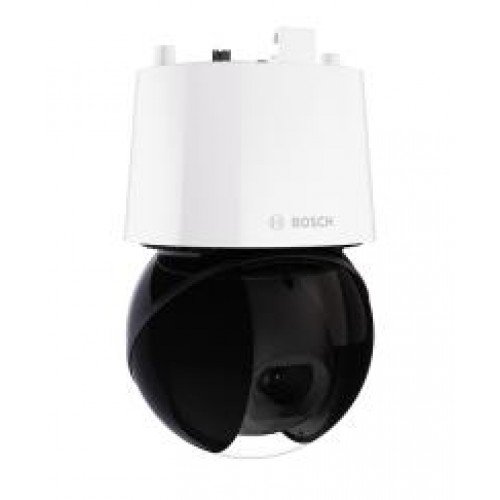

NET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH

Technical Specifications

• Summary: Bosch AUTODOME 7100i. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.001 lx, Lens viewing angle, horizontal: 66.35°, Tilt angle range: -90 - 20°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 32x, Detect distance: 2316 m
• Vendor Homepage: https://commerce.keenfinity.tech/us/en/PTZ-2MP-HDR-40x-IP66-pendant-IR/p/F.01U.419.732/
• Name: NET CAMERA 2MP IP PTZ DOME/NDP-7802-Z40L BOSCH
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Country of origin: Portugal
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Alarm input/output: Yes
• Colour temperature: 10000
• Minimum illumination: 0.001
• Lens viewing angle, horizontal: 66.35
• Tilt angle range: -90 - 20
• Tilt speed: 400
• Pan range: 0 - 360
• Pan speed: 400
• Auto flip: Yes
• White balance: ATW/Auto/Indoor/Outdoor
• Camera shutter type: Electronic
• Camera shutter speed: 1 - 1/30000
• Number of Privacy masking areas: 32
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 40
• Digital zoom: 32
• Number of lenses: 1
• Detect distance: 2316
• Recognize distance: 463
• Focal length range: 4.25 - 170
• Identify distance: 232
• Maximum aperture number: 4.95
• Minimum aperture number: 1.6
• Night vision: Yes
• Night vision distance: 300
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265/HEVC/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/512 x 288/704 x 480/704 x 576/720 x 480/720 x 576/768 x 432
• Frame rate: 60
• Video streaming: Yes
• Gain control type: Auto
• Back Light Compensation (BLC): Yes
• Image quality adjustment: Saturation
• Image stabilizer: Yes
• Audio system full duplex: Yes
• Audio formats supported: AAC/AAC-LC/G.711
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.3bt
• Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/ RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); SOAP; CHAP; Digest authentication; HSTS; RTSPS
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: SD
• Maximum memory card size: 2000
• Flash memory: 8192
• Internal memory: 4096
• Ethernet LAN (RJ-45) ports: 1
• Active tampering alarm: Yes
• Digital watermark: Yes
• HTTPS encryption: Yes
• Pixel counter: Yes
• Security algorithms: 128-bit AES/256-bit AES/256-bit AES-CBC/4096-bit RSA/TLS
• Video motion detection: Yes
• Cloud-managed: Yes
• Power source type: AC,DC,PoE
• AC input voltage: 24
• AC input frequency: 50/60
• Power consumption (max): 66.6
• Power consumption (Power over Ethernet (PoE)): 64.8
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 70
• Operating relative humidity (H-H): 0 - 100
• Storage relative humidity (H-H): 0 - 95
• Width: 210.6
• Depth: 210.6
• Height: 324
• Weight: 5620
• Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/RoHS/Trade Agreements Act (TAA)/UL/VCCI/WEEE
• Number of cameras: 1
• Manual: Yes
• Doesnt contain: PVC
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.04263
• Unit Calculated Weight: 4
