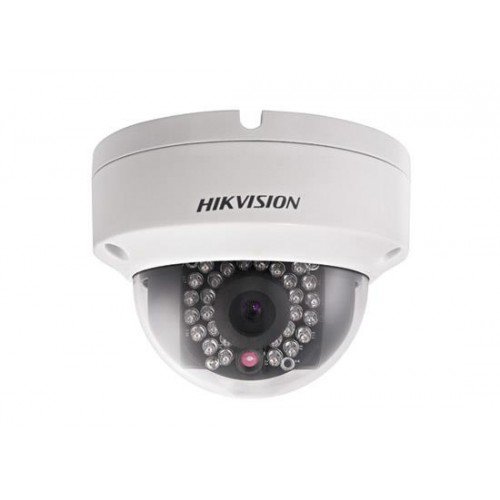

NET CAMERA 2MP IR DOME/DS-2CD2120F-I 4MM HIKVISION

Technical Specifications

• Summary: Hikvision DS-2CD2120F-I. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Field of view (FOV) angle: 85°, Angle of rotation: 355°, Tilt angle range: 0 - 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 4 mm
• Vendor Homepage: https://www.hikvision.com/europe/Products_accessries_158_i8595.html
• Name: NET CAMERA 2MP IR DOME/DS-2CD2120F-I 4MM HIKVISION
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Protection features: Splash proof
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Minimum illumination: 0
• Field of view (FOV) angle: 85
• Angle of rotation: 355
• Tilt angle range: 0 - 75
• Pan range: 0 - 355
• Camera shutter speed: 1/3 - 1/100000
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Maximum aperture number: 2
• Fixed focal length: 4
• Night vision: Yes
• Night vision distance: 30
• LED type: IR
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video compression formats: H.264/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960
• Supported video modes: 1080p/720p
• Frame rate: 30
• Noise reduction: Yes
• Automatic gain control: Yes
• Flip & mirror: Yes
• Image quality adjustment: Brightness/Contrast/Saturation
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
• Cabling technology: 10/100Base-T(X)
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 128
• Ethernet LAN (RJ-45) ports: 1
• Interface: RJ-45
• Active tampering alarm: Yes
• Motion sensor: Yes
• Reset button: Yes
• Power source type: PoE
• Power consumption (max): 5
• DC output voltage: 12
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 0 - 95
• Height: 82
• Diameter: 111
• Weight: 500
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.002005
• Unit Calculated Weight: 0.641
