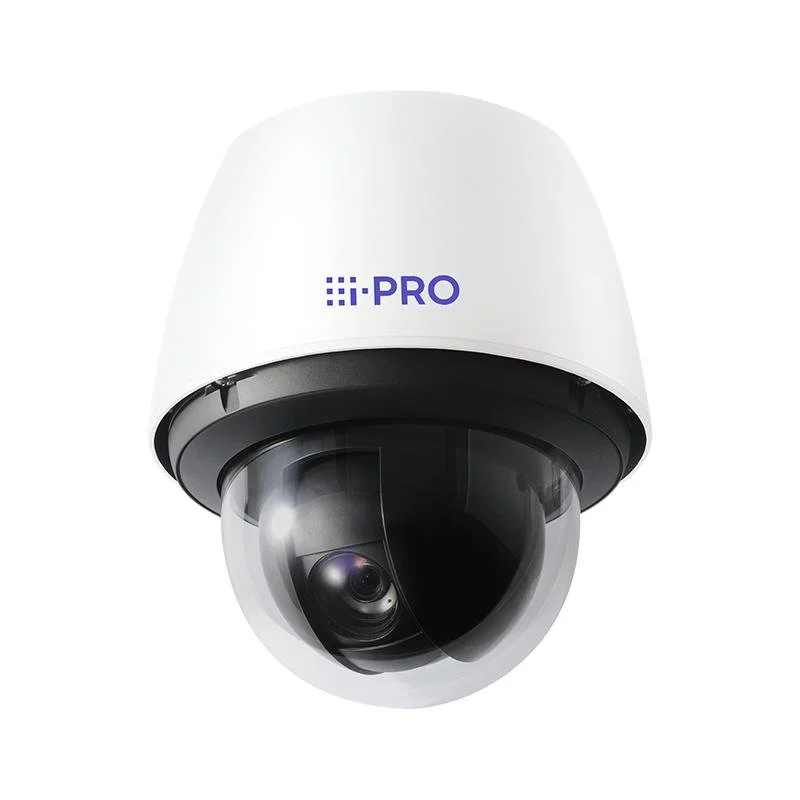

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO

Technical Specifications

• Summary: i-PRO WV-S65340-Z4N. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0004 lx, Tilt angle range: -15 - 195°, Tilt preset speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 40x, Digital zoom: 16x, Focal length range: 4.25 - 170 mm
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s65340-z4n
• Name: NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S65340-Z4N I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Dynamic range: 144
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.0004
• Tilt angle range: -15 - 195
• Tilt manual speed: 0.065 - 150
• Tilt preset speed: 500
• Pan range: 0 - 360
• Pan manual speed: 0.065 - 150
• Pan preset speed: 500
• White balance: ATW/AWC
• Camera shutter speed: 1/60 - 1/10000
• Number of Privacy masking areas: 32
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 40
• Digital zoom: 16
• Focal length range: 4.25 - 170
• Auto focus: Yes
• Detect distance (tele): 2095.2
• Detect distance (wide): 60.3
• Identify distance (tele): 209.5
• Identify distance (wide): 6
• Observe distance (tele): 838.1
• Observe distance (wide): 24.1
• Recognize distance (tele): 419
• Recognize distance (wide): 12.1
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/320 x 180/640 x 360
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPn
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
• Web browser: Yes
• Power source type: AC,DC,PoE
• AC input voltage: 24
• DC output voltage: 54
• Operating temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 100
• Height: 278
• Diameter: 229
• Weight: 4300
• Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.015
• Unit Calculated Weight: 5
