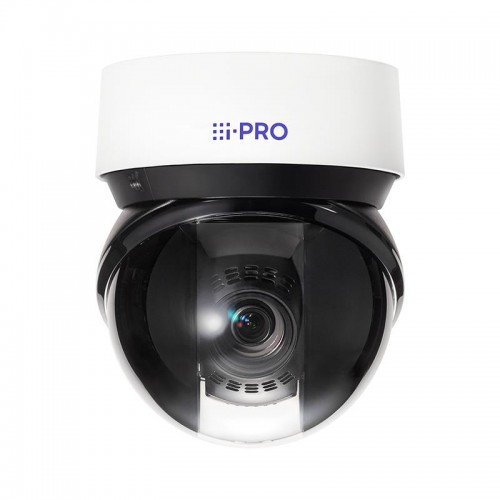

NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO

Technical Specifications

• Summary: i-PRO WV-S66300-Z3. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Spherical. Minimum illumination: 0.006 lx, Angle of rotation: 360°, Tilt angle range: -20 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Focal length range: 4.25 - 136 mm, Detect distance (wide): 60.3 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66300-z3
• Name: NET CAMERA 2MP PTZ AI OUTDOOR/VANDAL WV-S66300-Z3 I-PRO
• Category Code: FNC
• Form factor: Spherical
• Mounting type: Ceiling
• Product colour: Black/White
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Auto pan/Preset point
• Auto-tracking: Yes
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Preset points: Yes
• Dynamic range: 144
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 NEMA-TS2
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.006
• Angle of rotation: 360
• Tilt angle range: -20 - 90
• Tilt preset speed: 700
• Tilt speed: 150
• Pan preset speed: 500
• Pan speed: 150
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 1/60
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Focal length range: 4.25 - 136
• Detect distance (tele): 1833.2
• Detect distance (wide): 60.3
• Identify distance (tele): 183.3
• Identify distance (wide): 6
• Observe distance (tele): 733.3
• Observe distance (wide): 24.1
• Recognize distance (tele): 366.6
• Recognize distance (wide): 12.1
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265
• Frame rate: 60
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Built-in microphone: Yes
• Audio detection: Yes
• Bit rate range: 16 - 128
• Ethernet LAN: Yes
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Alarm input channels: 3
• Power source type: PoE
• Power consumption: 700
• Power consumption (typical): 37.8
• Operating temperature (T-T): -50 - 60
• Operating relative humidity (H-H): 10 - 100
• Height: 205
• Diameter: 167
• Weight: 3000
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.015
• Unit Calculated Weight: 4
