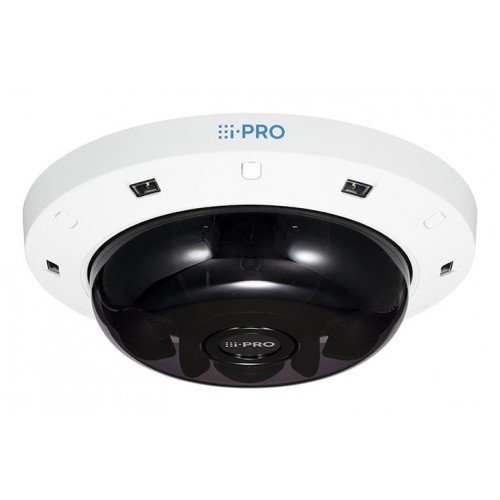

NET CAMERA 4K AI OUTDOOR/VANDAL WV-S8574LG I-PRO

Technical Specifications

• Summary: i-PRO WV-S8574LG. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.24 lx, Tilt angle range: 10 - 105°, Pan range: 125 - 125°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 55.8 m, Observe distance: 22.3 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s8574lg
• Name: NET CAMERA 4K AI OUTDOOR/VANDAL WV-S8574LG I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Corrosion resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Alarm input/output: Yes
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Number of languages: 9
• Minimum illumination: 0.24
• Tilt angle range: 10 - 105
• Pan range: 125 - 125
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/25
• Number of Privacy masking areas: 8
• Number of sensors: 4
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 1
• Detect distance: 55.8
• Observe distance: 22.3
• Recognize distance: 11.2
• Focal length range: 3.1
• Identify distance: 5.6
• Normal focusing range: 3
• Night vision: Yes
• Night vision distance: 30
• LED type: IR
• Maximum resolution: 3840 x 2160
• Total megapixels: 25
• Video compression formats: H.264/H.265/M-JPEG
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Audio system full duplex: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, LLDP, MQTT IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP,
• Number of users: 24
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD/SDHC/SDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Alert notification type: E-mail
• Video motion detection: Yes
• Web browser: Yes
• Behavior analysis: Scene change detection
• Power source type: DC,PoE
• Power consumption: 470
• Power consumption (typical): 25.4
• DC output voltage: 54
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -20 - 60
• Operating relative humidity (H-H): 10 - 100
• Height: 90
• Diameter: 300
• Weight: 3300
• Compliance certificates: CE/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Unit Calculated Volume: 0.0239
• Unit Calculated Weight: 4
