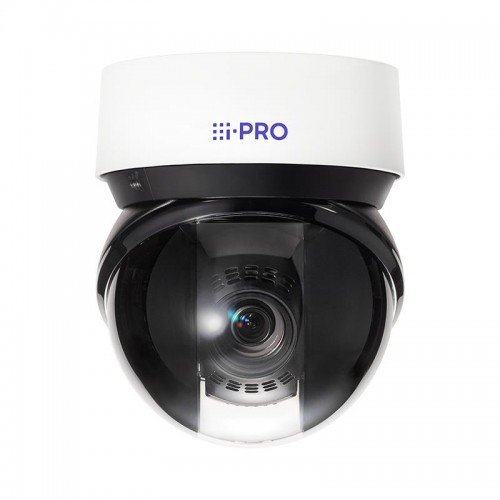

NET CAMERA 4K PTZ AI OUTDOOR/VANDAL WV-S66700-Z3LN I-PRO

Technical Specifications

• Summary: i-PRO WV-S66700-Z3LN. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 2.5 - 62°, Lens viewing angle, vertical: 1.4 - 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical zoom: 30x, Focal length range: 4.25 - 135 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s66700-z3ln
• Name: NET CAMERA 4K PTZ AI OUTDOOR/VANDAL WV-S66700-Z3LN I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black
• Housing material: Aluminium/Polycarbonate (PC)/Stainless steel
• Protection features: Tamper resistant/Wind resistant
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Auto pan/Preset point
• Auto-tracking: Yes
• Auto pan mode: Yes
• Auto patrol mode: Yes
• Preset points: Yes
• Alarm input/output: Yes
• Dynamic range: 132
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035
• Camera tilt control: Yes
• Minimum illumination: 0.1
• Lens viewing angle, horizontal: 2.5 - 62
• Lens viewing angle, vertical: 1.4 - 37
• Tilt angle range: -20 - 90
• Tilt preset speed: 500
• Tilt speed: 150
• Pan range: 0 - 360
• Pan speed: 700
• White balance: ATW/AWC
• Camera shutter speed: 16/25 - 1/10000
• Number of Privacy masking areas: 32
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 5.57 x 3.13
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 30
• Number of lenses: 1
• Focal length range: 4.25 - 135
• Focus: Motorized
• Maximum aperture number: 4.7
• Minimum aperture number: 1.6
• Closest focusing distance: 3
• Detect distance (tele): 3519.7
• Detect distance (wide): 127.8
• Identify distance (tele): 352
• Identify distance (wide): 12.8
• Observe distance (tele): 1407.9
• Observe distance (wide): 51.1
• Recognize distance (tele): 703.9
• Recognize distance (wide): 25.6
• Night vision: Yes
• Night vision distance: 280
• Maximum resolution: 3840 x 2160
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/320 x 180/640 x 360
• Frame rate: 30
• Noise reduction: Yes
• Gain control type: Auto
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Bit rate range: 16 - 128
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3bt
• Supported network protocols: IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• Intelligent Video Surveillance (IVS) system features: Face detection/Scene change/Vehicle detection
• Security algorithms: FIPS 140-2
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE
• Power consumption: 850
• Power consumption (Power over Ethernet (PoE)): 45.9
• Operating temperature (T-T): -50 - 60
• Operating relative humidity (H-H): 10 - 100
• Mobile operating systems supported: iOS 8.0
• Width: 167
• Depth: 167
• Height: 205
• Weight: 3000
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0231
• Unit Calculated Weight: 4
