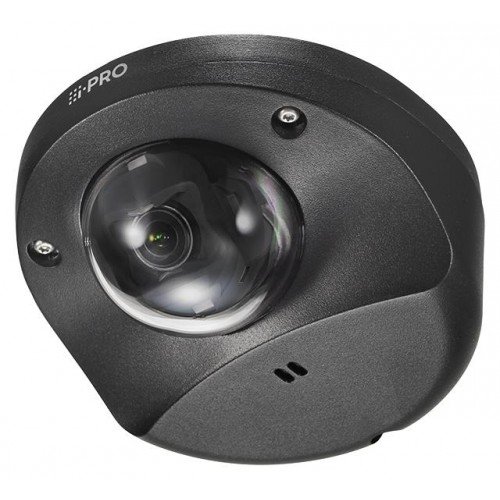

NET CAMERA 4MP DOME INDOOR/VANDAL WV-S32402-F2L1 I-PRO

NET CAMERA 4MP DOME INDOOR/VANDAL WV-S32402-F2L1 I-PRO
NET CAMERA 4MP DOME INDOOR/VANDAL WV-S32402-F2L1 I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
30,101ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 453958
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-S32402-F2L1. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 121°, Tilt angle range: 0 - 90°, Pan range: -45 - 45°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 29 m, Observe distance: 11.6 m
  • Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s32402-f2l1
  • Name: NET CAMERA 4MP DOME INDOOR/VANDAL WV-S32402-F2L1 I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black
  • Housing material: Aluminium/Polycarbonate (PC)
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • Dynamic range: 132
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 121
  • Tilt angle range: 0 - 90
  • Pan range: -45 - 45
  • White balance: ATW/AWC
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Optical zoom: 1
  • Detect distance: 29
  • Observe distance: 11.6
  • Recognize distance: 5.8
  • Focal length range: 2.4
  • Identify distance: 2.9
  • Maximum aperture number: 2.1
  • LED type: IR
  • Maximum resolution: 2688 x 1520
  • Total megapixels: 4
  • Video formats supported: H.264/H.265
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Audio formats supported: AAC-LC/G.711/G.726
  • Built-in microphone: Yes
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, FTP, SFTP, MQTT IPv4: TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
  • Compatible memory cards: MicroSD (TransFlash)/SDHC/SDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Intelligent Video Surveillance (IVS) system features: Face detection/People counting/Vehicle detection
  • Security algorithms: FIPS 140-2
  • Video motion detection: Yes
  • Web browser: Yes
  • Power source type: DC,PoE
  • DC output voltage: 48
  • Operating temperature (T-T): 0 - 40
  • Operating relative humidity (H-H): 10 - 90
  • Mobile operating systems supported: Android/iOS/iPadOS
  • Width: 109
  • Depth: 119
  • Height: 53
  • Weight: 455
  • Compliance certificates: National Defense Authorization Act (NDAA)
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 0.8
Specifications
Audio detectionYes
Audio formats supportedAAC-LC/G.711/G.726
Back Light Compensation (BLC)Yes
Built-in microphoneYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Compatible memory cardsMicroSD (TransFlash)/SDHC/SDXC
Compliance certificatesNational Defense Authorization Act (NDAA)
Connectivity technologyWired
DC output voltage48
Depth119
Detect distance29
Dynamic range132
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.4
Fog proofYes
Form factorDome
Height53
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance2.9
IK codeIK10
Intelligent Video Surveillance (IVS) system featuresFace detection/People counting/Vehicle detection
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Lens viewing angle, horizontal121
Maximum aperture number2.1
Maximum memory card size512
Maximum resolution2688 x 1520
Minimum illumination0
Mobile operating systems supportedAndroid/iOS/iPadOS
Mounting typeCeiling
Noise reductionYes
Number of cameras1
Number of sensors1
Observe distance11.6
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)0 - 40
Optical sensor size1/2.8
Optical zoom1
Pan range-45 - 45
Placement supportedIndoor
Power source typeDC,PoE
Product colourBlack
Recognize distance5.8
Security algorithmsFIPS 140-2
Sensor typeCMOS
Summaryi-PRO WV-S32402-F2L1. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 121°, Tilt angle range: 0 - 90°, Pan range: -45 - 45°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 1x, Detect distance: 29 m, Observe distance: 11.6 m
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, FTP, SFTP, MQTT IPv4: TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
Tilt angle range0 - 90
Total megapixels4
TypeIP security camera
Video formats supportedH.264/H.265
Video motion detectionYes
Web browserYes
Weight455
White balanceATW/AWC
Width109
Specs
Category CodeFNC
Description

  • 4MP Compact dome camera
  • Up to 1 Edge AI analytic app
  • Discreet design
  • Wide angle of view (Horizontal 121°)
  • Built-in IR-LED (14m/46ft)
  • Built-in microphone
  • IK10 certified
  • Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 4MP DOME INDOOR/VANDAL WV-S32402-F2L1 I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/67ca275e-df4b-4f84-9aea-780dfd9b1978.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/67ca275e-df4b-4f84-9aea-780dfd9b1978.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight0.8
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/en/surveillance/products/wv-s32402-f2l1
