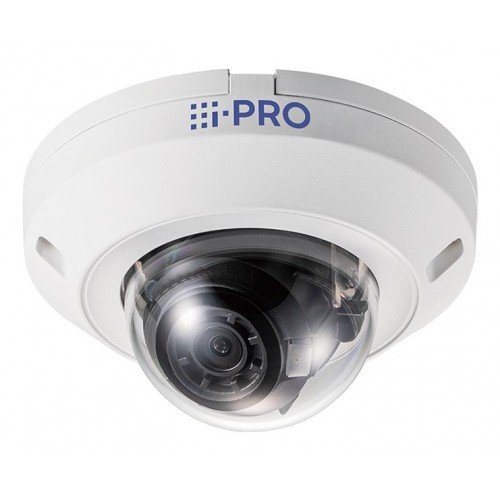

NET CAMERA 4MP DOME INDOOR/WV-U2140LA I-PRO

Technical Specifications

• Summary: i-PRO WV-U2140LA. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 100°, Lens viewing angle, vertical: 54°, Tilt angle range: -30 - 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 1x, Digital zoom: 4x, Detect distance: 43 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-u2140la
• Name: NET CAMERA 4MP DOME INDOOR/WV-U2140LA I-PRO
• Category Code: FNC
• Model: WV-U2140LA
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Number of languages: 9
• Minimum illumination: 0
• Lens viewing angle, horizontal: 100
• Lens viewing angle, vertical: 54
• Tilt angle range: -30 - 80
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 s to Max. 16/30 s
• Number of sensors: 1
• Optical sensor size: 1/2.7
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 1
• Digital zoom: 4
• Number of lenses: 1
• Detect distance: 43
• Observe distance: 17.2
• Recognize distance: 8.6
• Fixed focus: Yes
• Identify distance: 4.3
• Maximum aperture number: 2
• Fixed focal length: 3.2
• Normal focusing range: 1
• Night vision: Yes
• Night vision distance: 20
• LED type: IR
• Maximum resolution: 2560 x 1440
• Total megapixels: 4
• Video compression formats: H.265
• Frame rate: 30
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Brightness
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3/IEEE 802.3af/IEEE 802.3u
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Security algorithms: 802.1x RADIUS/HTTPS/SNMP/SNMPv2/SNMPv3/SSL/TLS
• Power source type: PoE
• Operating temperature (T-T): -10 - 50
• Operating relative humidity (H-H): 10 - 90
• Height: 62
• Diameter: 109
• Weight: 250
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.4
