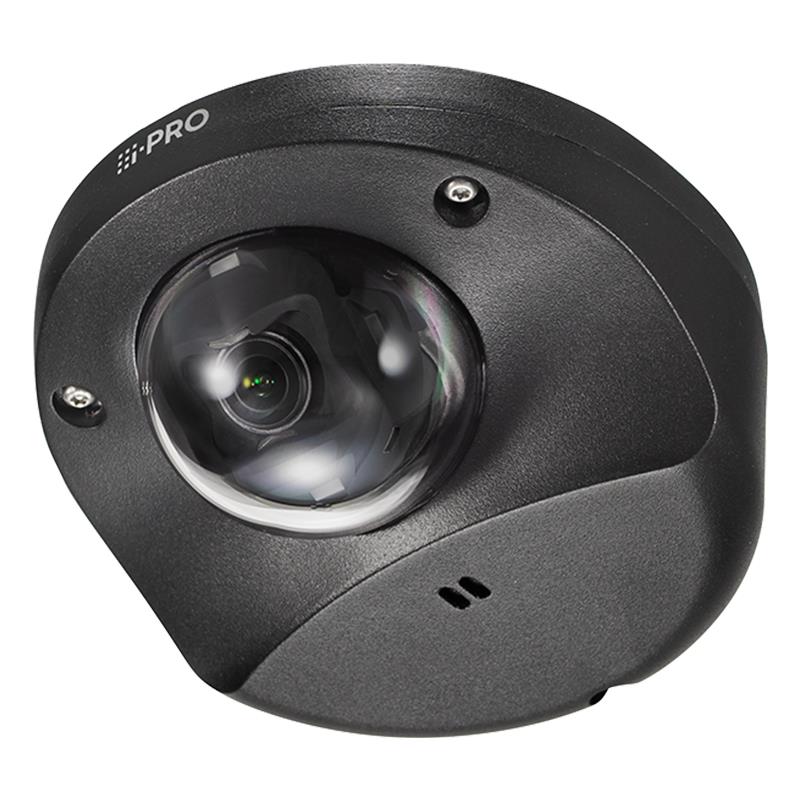

NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-S35402-F2L1 I-PRO

Technical Specifications

• Summary: i-PRO WV-S35402-F2L1. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Black, White, Form factor: Dome, Housing material: Aluminium, Resin. Minimum illumination: 0.06 lx, Lens viewing angle, horizontal: 121°, Lens viewing angle, vertical: 91°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 5.12 x 3.84 pixels. Optical zoom: 4x, Detect distance: 29 m, Observe distance: 11.6 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-s35402-f2l1
• Name: NET CAMERA 4MP DOME OUTDOOR/VANDAL WV-S35402-F2L1 I-PRO
• Category Code: FNC
• Form factor: Dome
• Product colour: Black/White
• Housing material: Aluminium/Resin
• International Protection (IP) code: IP66
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 132
• Certification: UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
• Minimum illumination: 0.06
• Lens viewing angle, horizontal: 121
• Lens viewing angle, vertical: 91
• Tilt angle range: 0 - 90
• Pan range: -45 - 45
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/25
• Number of Privacy masking areas: 8
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Number of effective pixels (H x V): 5.12 x 3.84
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 4
• Number of lenses: 1
• Detect distance: 29
• Observe distance: 11.6
• Recognize distance: 5.8
• Identify distance: 2.9
• Maximum aperture number: 2.1
• Closest focusing distance: 0.7
• Fixed focal length: 2.4
• Night vision: Yes
• Night vision distance: 14
• Maximum resolution: 2688 x 1520
• Total megapixels: 4
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/320 x 180/320 x 288 (QVGA)/640 x 360/640 x 480 (VGA)
• Frame rate: 30
• Noise reduction: Yes
• Gain control type: Auto
• Back Light Compensation (BLC): Yes
• Bit rate control: Constant Bit Rate (CBR),Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726
• Built-in microphone: Yes
• Audio detection: Yes
• Bit rate range: 16 - 128
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.3af
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, LLDP, FTP, SFTP, MQTT. IPv4: TCP/IP, UDP/ IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3
• Number of users: 14
• Card reader integrated: Yes
• Compatible memory cards: MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
• Privacy protection: Yes
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE
• Power consumption: 180
• Power consumption (Power over Ethernet (PoE)): 8.6
• Operating temperature (T-T): -40 - 50
• Operating relative humidity (H-H): 10 - 100
• Mac operating systems supported: Mac OS 8.0
• Width: 109
• Depth: 119
• Height: 53
• Weight: 475
• Compliance certificates: National Defense Authorization Act (NDAA)
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.8
