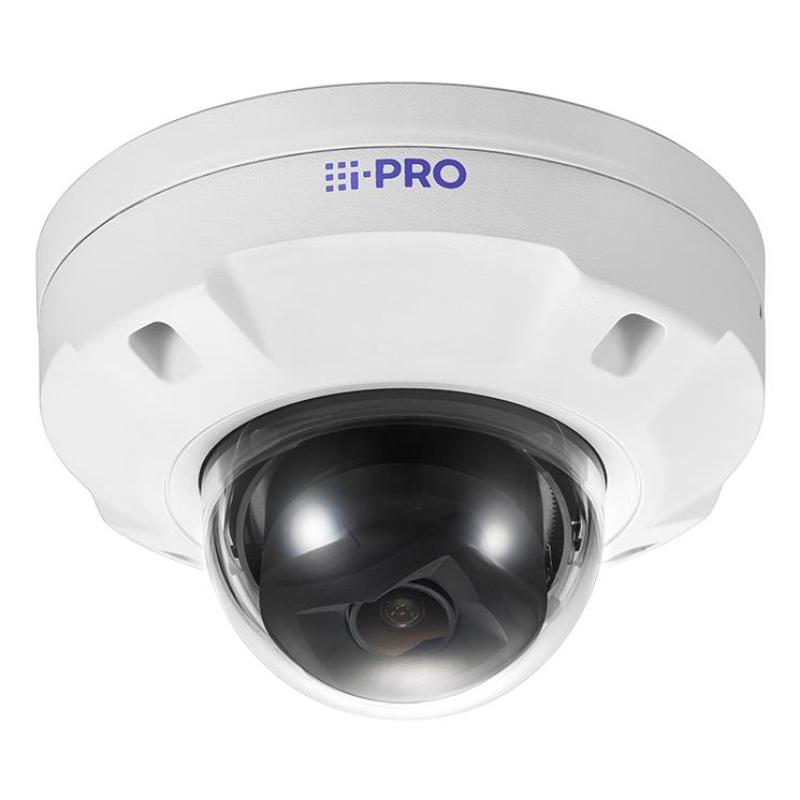

NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO

NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO
NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO
  • Connectivity technology: Wired
  • Maximum resolution: 2560 x 1440
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
30,383ден.
  • Достапност:
  • Бренд: I-PRO
  • Шифра: 443693
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: i-PRO WV-U25551-V3L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -30 - 85°, Pan range: -105 - 255°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.2x, Digital zoom: 12.8x, Focal length range: 3.2 - 10.2 mm
  • Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u25551-v3l
  • Name: NET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Corrosion resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Dynamic range: 120
  • Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
  • Number of languages: 9
  • Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
  • Minimum illumination: 0.07
  • Tilt angle range: -30 - 85
  • Pan range: -105 - 255
  • White balance: ATW/AWC
  • Camera shutter speed: 1/10000 - 1/30
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Optical zoom: 3.2
  • Digital zoom: 12.8
  • Focal length range: 3.2 - 10.2
  • Focus: Motorized
  • Maximum aperture number: 3.2
  • Minimum aperture number: 1.6
  • Detect distance (tele): 205.4
  • Detect distance (wide): 43.7
  • Identify distance (tele): 20.5
  • Identify distance (wide): 4.4
  • Normal focusing range: 2
  • Observe distance (tele): 82.1
  • Observe distance (wide): 17.5
  • Recognize distance (tele): 41.1
  • Recognize distance (wide): 8.7
  • Night vision: Yes
  • Night vision distance: 28
  • LED type: IR
  • Maximum resolution: 2560 x 1440
  • Total megapixels: 5
  • Video formats supported: H.264/H.265
  • Frame rate: 30
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Highlight Compensation (HLC): Yes
  • Image quality adjustment: Automatic gain control (AGC)
  • Audio formats supported: AAC-LC/G.711/G.726
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
  • Number of users: 14
  • Streaming method: Multicast/Unicast
  • Card reader integrated: Yes
  • Compatible memory cards: Memory Stick (MS)/MicroSDHC/MicroSDXC
  • Maximum memory card size: 512
  • Ethernet LAN (RJ-45) ports: 1
  • Alert notification type: E-mail
  • Security algorithms: FIPS 140-3
  • Video motion detection: Yes
  • Web browser: Yes
  • Behavior analysis: Scene change detection
  • Power source type: PoE
  • Power consumption: 200
  • Power consumption (typical): 9.6
  • DC output voltage: 48
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -20 - 50
  • Operating relative humidity (H-H): 10 - 100
  • Mobile operating systems supported: Android/iOS
  • Width: 154
  • Depth: 154
  • Height: 105
  • Weight: 1000
  • Compliance certificates: cUL/National Defense Authorization Act (NDAA)/UL
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001734
  • Unit Calculated Weight: 1.5
Specifications
Alarm input/outputYes
Alert notification typeE-mail
Audio formats supportedAAC-LC/G.711/G.726
Back Light Compensation (BLC)Yes
Behavior analysisScene change detection
Camera shutter speed1/10000 - 1/30
Card reader integratedYes
CertificationUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Compatible memory cardsMemory Stick (MS)/MicroSDHC/MicroSDXC
Compliance certificatescUL/National Defense Authorization Act (NDAA)/UL
Connectivity technologyWired
Day/night modeYes
DC output voltage48
Depth154
Detect distance (tele)205.4
Detect distance (wide)43.7
Digital zoom12.8
Dynamic range120
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range3.2 - 10.2
FocusMotorized
Form factorDome
Frame rate30
Height105
Highlight Compensation (HLC)Yes
Housing materialAluminium/Polycarbonate (PC)
Identify distance (tele)20.5
Identify distance (wide)4.4
IK codeIK10
Image quality adjustmentAutomatic gain control (AGC)
International Protection (IP) codeIP66
Languages supportEnglish/French/German/Italian/Japanese/Portuguese/Russian/Spanish
LED typeIR
Maximum aperture number3.2
Maximum memory card size512
Maximum resolution2560 x 1440
Minimum aperture number1.6
Minimum illumination0.07
Mobile operating systems supportedAndroid/iOS
Mounting typeCeiling
Night visionYes
Night vision distance28
Noise reductionYes
Normal focusing range2
Number of cameras1
Number of languages9
Number of users14
Observe distance (tele)82.1
Observe distance (wide)17.5
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Optical zoom3.2
Pan range-105 - 255
Placement supportedOutdoor
Power consumption (typical)9.6
Power source typePoE
Product colourBlack/White
Protection featuresCorrosion resistant
Recognize distance (tele)41.1
Recognize distance (wide)8.7
Security algorithmsFIPS 140-3
Sensor typeCMOS
Storage temperature (T-T)-20 - 50
Streaming methodMulticast/Unicast
Summaryi-PRO WV-U25551-V3L. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.07 lx, Tilt angle range: -30 - 85°, Pan range: -105 - 255°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3.2x, Digital zoom: 12.8x, Focal length range: 3.2 - 10.2 mm
Supported network protocolsIPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
Tilt angle range-30 - 85
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265
Video motion detectionYes
Web browserYes
Weight1000
White balanceATW/AWC
Width154
Specs
Category CodeFNC
Description

5MP AI Outdoor IR Dome Camera (3.2x zoom)

  • 5MP Outdoor vandal dome camera
  • AI-based image analytics using AI-VMD app
  • Audio recording
  • 3.2x optical zoom
  • Built-in IR LED (28m/92ft)
  • IP66, IK10 certified
  • Built-in FIPS 140-3 Level 3 Certified SecureElement (EdgeLock® SE052F NXP® Semiconductors)
  • NDAA Compliant

NameNET CAMERA 5MP DOME AI OUTDOOR/VANDAL WV-U25551-V3L I-PRO
PictureUrlhttps://static.elko.cloud/ProductImages/fbc35571-2259-4901-9bac-1ae16223927f.Jpeg
Power consumption200
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/fbc35571-2259-4901-9bac-1ae16223927f.Jpeg
Unit Calculated Volume0.001734
Unit Calculated Weight1.5
Units per Shipping Box1
Vendor Homepagehttps://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-u25551-v3l
