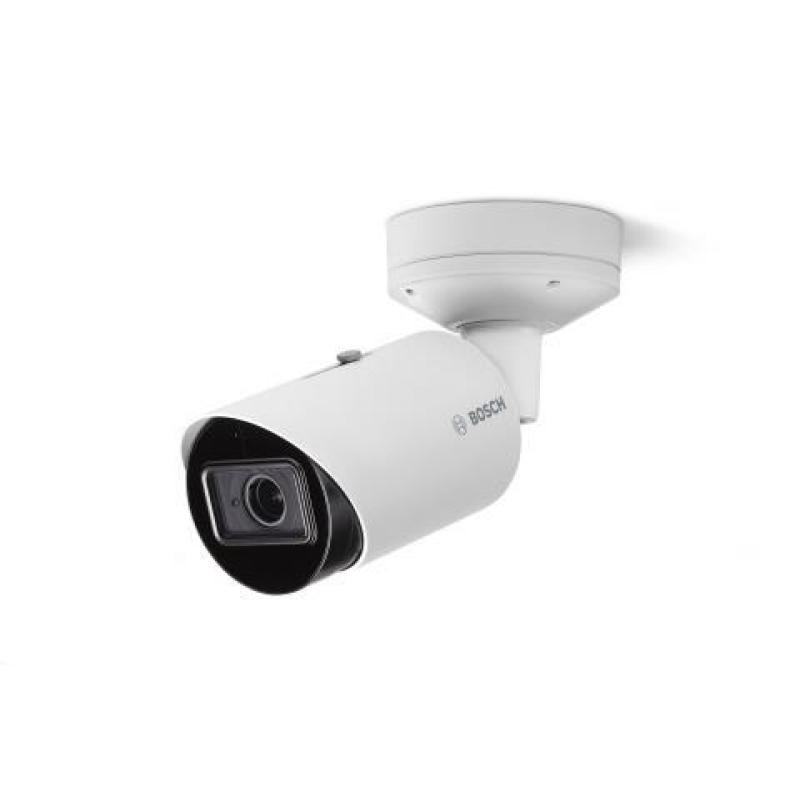

NET CAMERA 5MP IP BULLET/NBE-3503-AL BOSCH

NET CAMERA 5MP IP BULLET/NBE-3503-AL BOSCH
NET CAMERA 5MP IP BULLET/NBE-3503-AL BOSCH
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
32,786ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 304046
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch DINION IP 3000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.015 lx, White balance: Auto, Manual, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.2 - 10 mm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 5MP IP BULLET/NBE-3503-AL BOSCH
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Protection features: Impact resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Minimum illumination: 0.015
  • White balance: Auto/Manual
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/15000 - 1/25
  • Number of sensors: 1
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Focal length range: 3.2 - 10
  • Focus adjustment: 1.8
  • Night vision: Yes
  • Night vision distance: 30
  • LED type: IR
  • Number of illumination LEDs: 2
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/3072 x 1728/640 x 480 (VGA)/720 x 480/768 x 432
  • Frame rate: 25
  • Video streaming: Yes
  • Noise reduction: Yes
  • Privacy masking: Yes
  • Signal-to-Noise Ratio (SNR): 50
  • Audio detection: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP),
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Ethernet LAN (RJ-45) ports: 1
  • DC-in jack: Yes
  • Security algorithms: 128-bit AES/256-bit AES/TLS
  • Video motion detection: Yes
  • Power source type: DC
  • DC output voltage: 12
  • Operating temperature (T-T): -30 - 50
  • Height: 307
  • Diameter: 101.5
  • Weight: 1630
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01308
  • Unit Calculated Weight: 2.7
Specifications
Alarm input/outputYes
Audio detectionYes
Camera shutter speed1/15000 - 1/25
Camera shutter typeElectronic
Card reader integratedYes
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC output voltage12
DC-in jackYes
Diameter101.5
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range3.2 - 10
Focus adjustment1.8
Form factorBullet
Frame rate25
Height307
IK codeIK10
Infra-red wavelength850
International Protection (IP) codeIP66
LED typeIR
Maximum resolution1920 x 1080
Minimum illumination0.015
Mounting typeCeiling/wall
Night visionYes
Night vision distance30
Noise reductionYes
Number of cameras1
Number of illumination LEDs2
Number of sensors1
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Placement supportedOutdoor
Power source typeDC
Privacy maskingYes
Product colourWhite
Protection featuresImpact resistant
Security algorithms128-bit AES/256-bit AES/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)50
SummaryBosch DINION IP 3000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.015 lx, White balance: Auto, Manual, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3.2 - 10 mm
Supported graphics resolutions1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/3072 x 1728/640 x 480 (VGA)/720 x 480/768 x 432
Supported network protocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP),
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video motion detectionYes
Video streamingYes
Weight1630
White balanceAuto/Manual
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

The DINION IP 3000i IR is built for high quality, 24/7 performance, with a range of reliable surveillance features, including Essential Video Analytics, and is designed for easy installation.
The compact and minimalist design provides high installation flexibility and offers various mounting options.

Essential Video Analytics
The built-in video analysis reinforces the Intelligenceat-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges. The system reliably detects, tracks, and analyzes
objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic
evidence or to optimize business processes based on people counting or crowd density information.

High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF)
analysis according to IEC 62676 Part 5.

Intelligent streaming
Each of these streams can be adapted independently to deliver high quality video, perfectly tailored to purpose, while reducing bit rate by up to 90% compared to a standard camera.
Smart encoding capabilities, together with Intelligent Dynamic Noise Reduction technology and analytics, reduce the bandwidth consumption to extremely low levels. Only relevant information in the scene, like motion, or objects found with the analytics, need to be encoded.
The camera is capable of triple streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring via constrained bandwidths.

  • Fully configurable H.265 multi-streaming
  • 1080p and 5MP resolutions
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Easy to install with zoom/focus lens
  • Built-in IR illuminator with 30 m (98 ft) viewing distance
