NET CAMERA 5MP IP BULLET/NBE-5503-AL BOSCH

NET CAMERA 5MP IP BULLET/NBE-5503-AL BOSCH
NET CAMERA 5MP IP BULLET/NBE-5503-AL BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 3072 x 1728
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
51,501ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 249202
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch DINION IP 5000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.035 lx, White balance: Manual, Sodium lamp, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"), Number of effective pixels (H x V): 3072 x 1728 pixels. Focal length range: 2.7 - 12 mm
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 5MP IP BULLET/NBE-5503-AL BOSCH
  • Category Code: FNC
  • Form factor: Bullet
  • Mounting type: Ceiling/wall
  • Product colour: White
  • Protection features: Impact resistant
  • International Protection (IP) code: IP67
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Certification: CE, FCC, UL, cUL, C-tick, CB, VCCI, EAC
  • Minimum illumination: 0.035
  • White balance: Manual/Sodium lamp
  • Camera shutter type: Electronic
  • Optical sensor size: 1/2.9
  • Progressive scan: Yes
  • Number of effective pixels (H x V): 3072 x 1728
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Focal length range: 2.7 - 12
  • Auto focus: Yes
  • Night vision: Yes
  • Night vision distance: 60
  • LED type: IR
  • Number of illumination LEDs: 4
  • Infra-red wavelength: 850
  • Maximum resolution: 3072 x 1728
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1512/3072 x 1728/320 x 240/640 x 480 (VGA)
  • Frame rate: 30
  • Analog signal format system: NTSC/PAL/SECAM
  • Video streaming: Yes
  • Noise reduction: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation
  • Privacy masking: Yes
  • Region of Interest (ROI) encoding: Yes
  • Time stamp overlay: Yes
  • Signal-to-Noise Ratio (SNR): 50
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3at
  • Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Maximum memory card size: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • BNC output ports: 1
  • Alert notification type: Text alert message
  • Digital watermark: Yes
  • Security algorithms: MD5/SHA-1/SHA-256
  • Web browser: Yes
  • Power source type: PoE
  • Power consumption: 850
  • Power over Ethernet (PoE): Yes
  • Operating temperature (T-T): -40 - 60
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 20 - 90
  • Storage relative humidity (H-H): 0 - 93
  • Width: 271
  • Depth: 90
  • Height: 90
  • Weight: 1300
  • Number of cameras: 1
  • Screws included: Yes
  • Quick installation guide: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0132
  • Unit Calculated Weight: 3
Specifications
Alarm input/outputYes
Alert notification typeText alert message
Analog signal format systemNTSC/PAL/SECAM
Auto focusYes
BNC output ports1
Camera shutter typeElectronic
Card reader integratedYes
CertificationCE, FCC, UL, cUL, C-tick, CB, VCCI, EAC
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Depth90
Digital watermarkYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Focal length range2.7 - 12
Form factorBullet
Frame rate30
Height90
Image quality adjustmentBrightness/Contrast/Saturation
Infra-red wavelength850
International Protection (IP) codeIP67
LED typeIR
Maximum memory card size2000
Maximum resolution3072 x 1728
Minimum illumination0.035
Mounting typeCeiling/wall
Networking standardsIEEE 802.3at
Night visionYes
Night vision distance60
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)3072 x 1728
Number of illumination LEDs4
Operating relative humidity (H-H)20 - 90
Operating temperature (T-T)-40 - 60
Optical sensor size1/2.9
Placement supportedOutdoor
Power over Ethernet (PoE)Yes
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
Protection featuresImpact resistant
PTZ controlYes
Quick installation guideYes
Region of Interest (ROI) encodingYes
Screws includedYes
Security algorithmsMD5/SHA-1/SHA-256
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)50
Storage relative humidity (H-H)0 - 93
Storage temperature (T-T)-40 - 70
SummaryBosch DINION IP 5000i IR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.035 lx, White balance: Manual, Sodium lamp, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"), Number of effective pixels (H x V): 3072 x 1728 pixels. Focal length range: 2.7 - 12 mm
Supported graphics resolutions1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1512/3072 x 1728/320 x 240/640 x 480 (VGA)
Supported network protocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP
Time stamp overlayYes
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Video streamingYes
Web browserYes
Weight1300
White balanceManual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Width271
Zoom capabilityYes
Specs
Category CodeFNC
Description

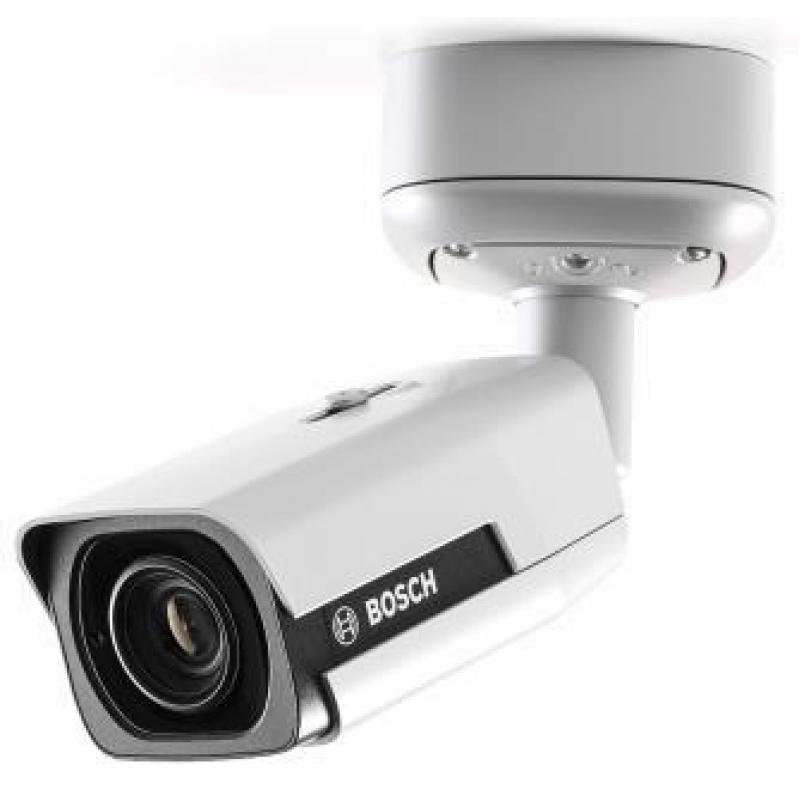

The 5MP infrared bullet from Bosch is a professional surveillance camera that provides high quality images for demanding security and surveillance network requirements.
This robust bullet camera is a true day/night camera offering excellent performance day or night. The builtin infrared LEDs provides quality night time monitoring with 60 m (196 ft) viewing distance in darkness.
Outdoor bullet camera with Automatic Varifocal lens
The robust aluminum housing provides high installation flexibility. The camera resists both water and dust ingress in tough environments and is rated to IP67 standards. The 2.7 to 12 mm AVF (Automatic Varifocal) lens allows you to choose the coverage area remotely.
The automatic zoom/focus lens wizard makes it easy for an installer to accurately zoom and focus the camera for both day and night operation. The wizard is activated from the PC or from the on-board camera push button making it easy to choose the workflow that suits best.
The AVF (Automatic Varifocal) feature means that the zoom can be changed without opening the camera. The automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is always accurately focused.

  • 5MP resolution with image quality up to 30 fps for highly detailed images
  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable H.265 multi-streaming
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • High Dynamic Range mode (120 dB) to see details in bright and dark areas simultaneously
