NET CAMERA 5MP IP DOME/NDE-5503-A BOSCH

NET CAMERA 5MP IP DOME/NDE-5503-A BOSCH
NET CAMERA 5MP IP DOME/NDE-5503-A BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
58,139ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 378538
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch FLEXIDOME IP 5000i. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 99°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"), Number of effective pixels (H x V): 3072 x 1944 pixels. Focal length range: 3 - 10 mm, Focus: Motorized
  • Vendor Homepage: https://www.boschsecurity.com/
  • Name: NET CAMERA 5MP IP DOME/NDE-5503-A BOSCH
  • Category Code: FNC
  • Model: NDE-5503-A
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Impact resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Fog proof: Yes
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Alarm input/output: Yes
  • Colour temperature: 3100
  • Dynamic range: 120
  • Light exposure modes: Auto/Manual
  • Minimum illumination: 0.03
  • Angle of rotation: 350
  • Lens viewing angle, horizontal: 99
  • Lens viewing angle, vertical: 53
  • Tilt angle range: 0 - 130
  • Pan range: 0 - 350
  • White balance: Manual/Sodium lamp
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/25 to 1/15000
  • Adjustment shutter speed: Auto/Manual
  • Optical sensor size: 1/2.9
  • Number of effective pixels (H x V): 3072 x 1944
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Focal length range: 3 - 10
  • Focus: Motorized
  • Maximum resolution: 1920 x 1080
  • Video compression formats: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1512/3072 x 1728/320 x 240/640 x 480 (VGA)
  • Frame rate: 30
  • Analog signal format system: NTSC
  • Noise reduction: Yes
  • Back Light Compensation (BLC): Yes
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Region of Interest (ROI) encoding: Yes
  • Audio system full duplex: Yes
  • Audio formats supported: G.711/LC-AAC
  • Sample rate: 16
  • Signal-to-Noise Ratio (SNR): 55
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
  • Supported network protocols: IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), D
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Ethernet LAN (RJ-45) ports: 1
  • DC-in jack: Yes
  • Digital watermark: Yes
  • Security algorithms: 128-bit AES/256-bit AES/TLS
  • Web-based management: Yes
  • Web browser: Yes
  • Firmware upgradeable: Yes
  • Power source type: DC,PoE
  • Power consumption (max): 7.15
  • Power consumption (Power over Ethernet (PoE)): 7
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 5 - 100
  • Height: 130.5
  • Diameter: 145
  • Weight: 1102
  • Number of cameras: 1
  • Screws included: Yes
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0015
  • Unit Calculated Weight: 1.3
Specifications
Adjustment shutter speedAuto/Manual
Alarm input/outputYes
Analog signal format systemNTSC
Angle of rotation350
Audio formats supportedG.711/LC-AAC
Audio system full duplexYes
Back Light Compensation (BLC)Yes
Camera shutter speed1/25 to 1/15000
Camera shutter typeElectronic
Card reader integratedYes
Colour temperature3100
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
DC-in jackYes
Diameter145
Digital watermarkYes
Dynamic range120
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Firmware upgradeableYes
Flip & mirrorYes
Focal length range3 - 10
FocusMotorized
Fog proofYes
Form factorDome
Frame rate30
Height130.5
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
International Protection (IP) codeIP66
Lens viewing angle, horizontal99
Lens viewing angle, vertical53
Light exposure modesAuto/Manual
Maximum resolution1920 x 1080
Minimum illumination0.03
Mounting typeCeiling
Networking standardsIEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
Noise reductionYes
Number of cameras1
Number of effective pixels (H x V)3072 x 1944
Number of lenses1
Operating relative humidity (H-H)5 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.9
Pan range0 - 350
Placement supportedOutdoor
Power consumption (max)7.15
Power consumption (Power over Ethernet (PoE))7
Power source typeDC,PoE
Privacy maskingYes
Product colourBlack/White
Protection featuresImpact resistant
Region of Interest (ROI) encodingYes
Sample rate16
Screws includedYes
Security algorithms128-bit AES/256-bit AES/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)55
Storage temperature (T-T)-40 - 70
SummaryBosch FLEXIDOME IP 5000i. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 99°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"), Number of effective pixels (H x V): 3072 x 1944 pixels. Focal length range: 3 - 10 mm, Focus: Motorized
Supported graphics resolutions1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2304 x 1296/2688 x 1512/3072 x 1728/320 x 240/640 x 480 (VGA)
Supported network protocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), D
Tilt angle range0 - 130
TypeIP security camera
Video compression formatsH.264/H.265/HEVC/M-JPEG
Web browserYes
Web-based managementYes
Weight1102
White balanceManual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

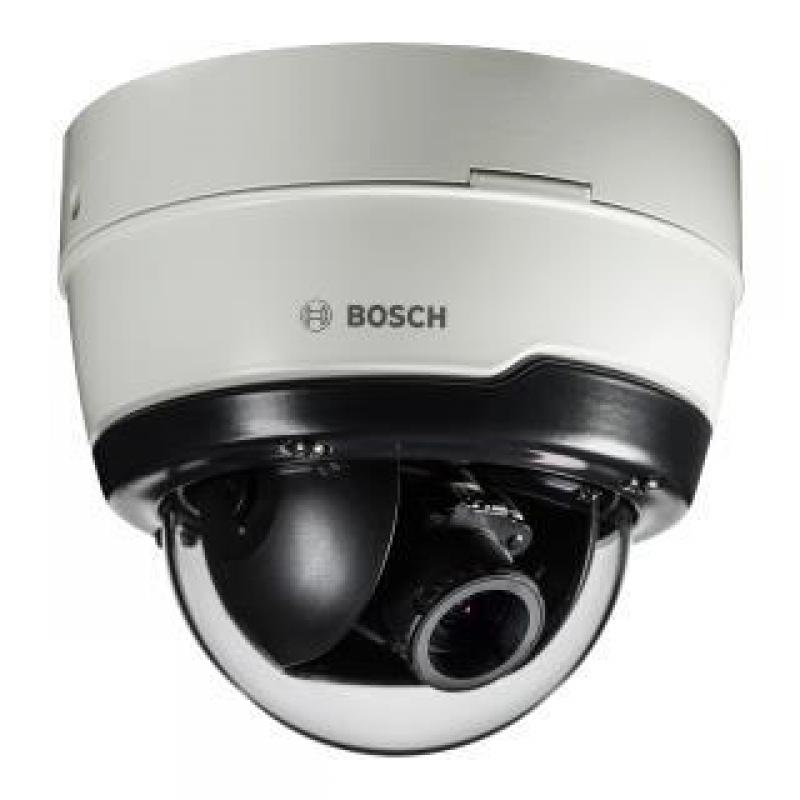

The 5MP outdoor dome cameras from Bosch are professional surveillance cameras that provide high quality images for demanding security and surveillance network requirements. These robust domes are true day/night cameras offering excellent performance day or night.

  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable H.265 multi-streaming
  • 5MP resolution with image quality up to 30 fps for highly detailed images
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Extended Dynamic Range mode to see details in bright and dark areas simultaneously

ModelNDE-5503-A
NameNET CAMERA 5MP IP DOME/NDE-5503-A BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/b2d1bf6d-6d62-4c02-b846-e041f4286312.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/b2d1bf6d-6d62-4c02-b846-e041f4286312.Jpeg
Unit Calculated Volume0.0015
Unit Calculated Weight1.3
Units per Shipping Box1
Vendor Homepagehttps://www.boschsecurity.com/
