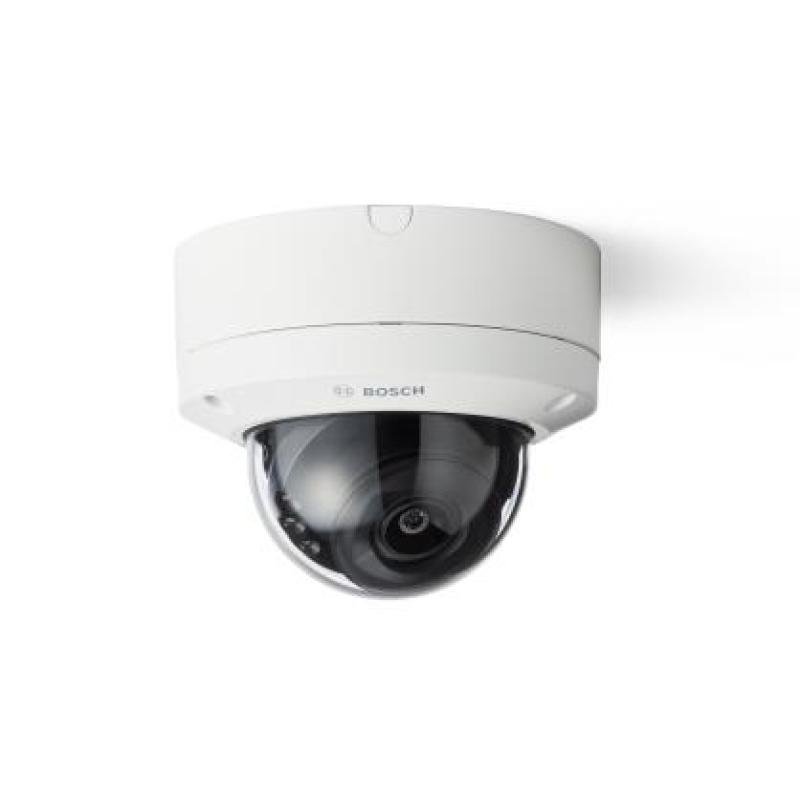

NET CAMERA 5MP IR DOME/NDE-3703-AL-IO BOSCH

NET CAMERA 5MP IR DOME/NDE-3703-AL-IO BOSCH
NET CAMERA 5MP IR DOME/NDE-3703-AL-IO BOSCH
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
44,942ден.
  • Достапност: Има залиха
  • Бренд: BOSCH
  • Шифра: 454416
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch FLEXIDOME NDE-3703-AL-IO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 30.1 - 101.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 77 m, Observe distance: 31 m, Recognize distance: 15 m
  • Vendor Homepage: https://commerce.keenfinity.tech/xl/en/Dome-5MP-3-3-10-2mm-IP66-IK10-IR-I-O/p/F.01U.427.710/
  • Name: NET CAMERA 5MP IR DOME/NDE-3703-AL-IO BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Scratch resistant/Vandal proof
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Weatherproof: Yes
  • Fog proof: Yes
  • Country of origin: Thailand
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Colour temperature: 10000
  • Minimum illumination: 0.03
  • Angle of rotation: 355
  • Lens viewing angle, horizontal: 30.1 - 101.4
  • Lens viewing angle, vertical: 21.8 - 59.6
  • Tilt angle range: 0 - 85
  • Pan range: 0 - 355
  • White balance: Manual/Sodium lamp
  • Camera shutter type: Electronic
  • Camera shutter speed: 1/15000 - 1/25
  • Number of Privacy masking areas: 8
  • Number of sensors: 1
  • Optical sensor size: 1/2.7
  • Number of effective pixels (H x V): 2592 x 1944
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Number of lenses: 1
  • Detect distance: 77
  • Observe distance: 31
  • Recognize distance: 15
  • Focal length range: 3.3 - 10.2
  • Identify distance: 8
  • Maximum aperture number: 3.29
  • Minimum aperture number: 1.6
  • Night vision: Yes
  • Night vision distance: 30
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2592 x 1944
  • Total megapixels: 5
  • Video formats supported: H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 2592 x 1456/2592 x 1944/320 x 240/512 x 288
  • Frame rate: 30
  • Video streaming: Yes
  • Back Light Compensation (BLC): Yes
  • Flip & mirror: Yes
  • Image quality adjustment: Brightness/Saturation
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC/G.711
  • Signal-to-Noise Ratio (SNR): 60
  • Built-in microphone: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSD
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC/SD
  • Maximum memory card size: 2000
  • Flash memory: 8192
  • RAM capacity: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Active tampering alarm: Yes
  • Digest authentication: Yes
  • Digital watermark: Yes
  • HTTPS encryption: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Abandoned object/Line crossing detection
  • Pixel counter: Yes
  • Security algorithms: 128-bit AES/256-bit AES/256-bit AES-CBC/SHA-1/SHA-256/TLS
  • Firmware upgradeable: Yes
  • Power source type: AC,PoE
  • AC input voltage: 24
  • Power consumption (typical): 2.1
  • Power consumption (max): 8.2
  • Power consumption (Power over Ethernet (PoE)): 7.9
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -50 - 70
  • Operating relative humidity (H-H): 5 - 95
  • Storage relative humidity (H-H): 5 - 100
  • Width: 137
  • Depth: 137
  • Height: 111
  • Weight: 789.5
  • Compliance certificates: CE/Federal Communications Commission (FCC)/RCM/UKCA/UL/VCCI/WEEE
  • Number of cameras: 1
  • Drilling template included: Yes
  • Manual: Yes
  • Doesnt contain: PVC
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.003808
  • Unit Calculated Weight: 0.8
Specifications
AC input voltage24
Active tampering alarmYes
Angle of rotation355
Audio formats supportedAAC-LC/G.711
Audio system full duplexYes
Auto-trackingYes
Back Light Compensation (BLC)Yes
Built-in microphoneYes
Camera shutter speed1/15000 - 1/25
Camera shutter typeElectronic
Card reader integratedYes
Colour temperature10000
Compatible memory cardsMicroSDHC/MicroSDXC/SD
Compliance certificatesCE/Federal Communications Commission (FCC)/RCM/UKCA/UL/VCCI/WEEE
Connectivity technologyWired
Country of originThailand
Day/night modeYes
Depth137
Detect distance77
Digest authenticationYes
Digital watermarkYes
Doesn\'t containPVC
Drilling template includedYes
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Firmware upgradeableYes
Flash memory8192
Flip & mirrorYes
Focal length range3.3 - 10.2
Fog proofYes
Form factorDome
Frame rate30
Height111
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
Human and vehicle targets classificationYes
Identify distance8
IK codeIK10
Image quality adjustmentBrightness/Saturation
Infra-red wavelength850
Intelligent Video Surveillance (IVS) system featuresAbandoned object/Line crossing detection
International Protection (IP) codeIP66
LED typeIR
Lens viewing angle, horizontal30.1 - 101.4
Lens viewing angle, vertical21.8 - 59.6
ManualYes
Maximum aperture number3.29
Maximum memory card size2000
Maximum resolution2592 x 1944
Minimum aperture number1.6
Minimum illumination0.03
Mounting typeCeiling
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance30
Number of cameras1
Number of effective pixels (H x V)2592 x 1944
Number of lenses1
Number of Privacy masking areas8
Number of sensors1
Observe distance31
Operating relative humidity (H-H)5 - 95
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.7
Pan range0 - 355
Pixel counterYes
Placement supportedOutdoor
Power consumption (max)8.2
Power consumption (Power over Ethernet (PoE))7.9
Power consumption (typical)2.1
Power source typeAC,PoE
Product colourBlack/White
Protection featuresScratch resistant/Vandal proof
PTZ controlYes
Quality of Service (QoS) supportYes
RAM capacity2048
Recognize distance15
Security algorithms128-bit AES/256-bit AES/256-bit AES-CBC/SHA-1/SHA-256/TLS
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)60
Storage relative humidity (H-H)5 - 100
Storage temperature (T-T)-50 - 70
Streaming methodMulticast
SummaryBosch FLEXIDOME NDE-3703-AL-IO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 30.1 - 101.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 77 m, Observe distance: 31 m, Recognize distance: 15 m
Supported graphics resolutions2592 x 1456/2592 x 1944/320 x 240/512 x 288
Supported network protocolsIPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSD
Tilt angle range0 - 85
Total megapixels5
TypeIP security camera
Video formats supportedH.264/H.265/HEVC/M-JPEG
Video streamingYes
WeatherproofYes
Weight789.5
White balanceManual/Sodium lamp
Wide Dynamic Range (WDR)Yes
Width137
Zoom capabilityYes
Specs
Category CodeFNC
Description

NDE-3703-AL-IO

Dome 5MP 3.3-10.2mm IP66 IK10 IR I/O
5 MP for highly detailed images
IVA Pro Buildings brings reliable deep-learning based detection of persons and vehicles
Alarm and audio inputs and outputs
Built-in Secure Element with Trusted Platform Module (TPM) to ensure the highest level of security for device access and data transport
Built-in IR illuminator with up to 30 m (98 ft) viewing distance

NameNET CAMERA 5MP IR DOME/NDE-3703-AL-IO BOSCH
PictureUrlhttps://static.elko.cloud/ProductImages/d66020fe-8e0c-465a-afe5-9eda1925daf0.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/d66020fe-8e0c-465a-afe5-9eda1925daf0.Jpeg
Unit Calculated Volume0.003808
Unit Calculated Weight0.8
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://commerce.keenfinity.tech/xl/en/Dome-5MP-3-3-10-2mm-IP66-IK10-IR-I-O/p/F.01U.427.710/
