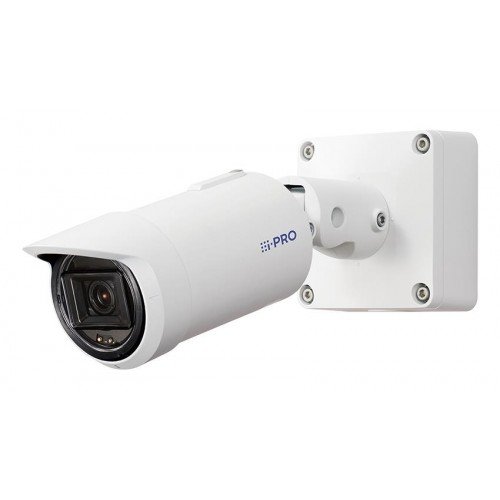

NET CAMERA 6MP BULLET AI OUTD./VANDAL WV-X15600-V2LN I-PRO

Technical Specifications

• Summary: i-PRO X-series bullet camera with powerful cutting edge AI. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.002 lx, Lens viewing angle, horizontal: 104°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2x, Focal length range: 4.3 - 8.6 mm, Normal focusing range: 1 m
• Vendor Homepage: https://i-pro.com/products_and_solutions/en/surveillance/products/wv-x15600-v2ln
• Name: NET CAMERA 6MP BULLET AI OUTD./VANDAL WV-X15600-V2LN I-PRO
• Category Code: FNC
• Form factor: Bullet
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Corrosion resistant/Dust resistant/Water resistant/Wind resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Dynamic range: 132
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Simplified Chinese/Spanish
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.002
• Lens viewing angle, horizontal: 104
• Lens viewing angle, vertical: 56
• Tilt angle range: 0 - 100
• Pan range: -180 - 180
• White balance: ATW/AWC
• Camera shutter speed: 1/4000 - 16/30
• Number of Privacy masking areas: 8
• Optical sensor size: 1/1.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2
• Focal length range: 4.3 - 8.6
• Maximum aperture number: 1.5
• Detect distance (tele): 133.5
• Detect distance (wide): 52
• Identify distance (tele): 13.3
• Identify distance (wide): 5.2
• Normal focusing range: 1
• Observe distance (tele): 53.4
• Observe distance (wide): 20.8
• Recognize distance (tele): 26.7
• Recognize distance (wide): 10.4
• Night vision: Yes
• Night vision distance: 70
• LED type: IR
• Maximum resolution: 3328 x 1872
• Total megapixels: 6
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/320 x 180/640 x 360
• Video recording: Yes
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Image stabilizer: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3,
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Interface: RJ-45
• Alert notification type: E-mail
• Intelligent Video Surveillance (IVS) system features: Face detection/Human detection/Scene change/Vehicle detection
• Privacy protection: Yes
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Power source type: PoE+,DC
• Power consumption (typical): 14.2
• Power consumption (Power over Ethernet (PoE)): 14
• DC output voltage: 12
• DC output current: 1.2
• Operating temperature (T-T): -40 - 55
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 10 - 95
• Mobile operating systems supported: Android/iOS/iOS 8.0/iPadOS
• Width: 133
• Depth: 383
• Height: 133
• Weight: 2500
• Compliance certificates: CE/cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UKCA/UL/WEEE
• Number of cameras: 1
• Audio input: 3.5mm
• Audio output: 3.5mm
• Browser supported: Microsoft Edge Firefox Google Chrome
• Data transfer rate: 100
• Number of simultaneous users: 14
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0153
• Unit Calculated Weight: 3
