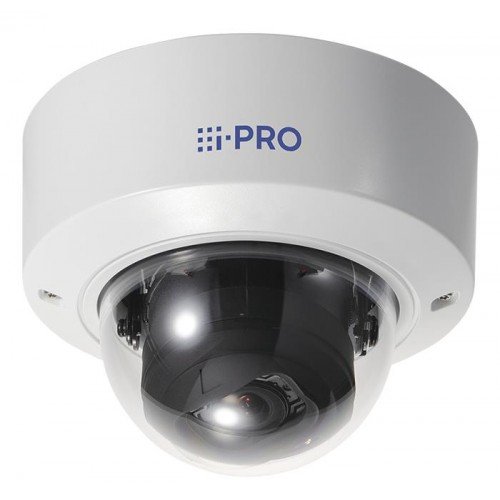

NET CAMERA 6MP DOME AI OUTDOOR/VANDAL WV-X22600-V2L I-PRO

Technical Specifications

• Summary: i-PRO WV-X22600-V2L. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Tilt angle range: -30 - 85°, Pan range: -240 - 120°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2x, Focal length range: 4.3 - 8.6 mm, Focus: Motorized
• Vendor Homepage: https://i-pro.com/products_and_solutions/us-en/surveillance/products/wv-x22600-v2l
• Name: NET CAMERA 6MP DOME AI OUTDOOR/VANDAL WV-X22600-V2L I-PRO
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Vandal proof
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• Infrared (IR) cut-off filter: Yes
• Alarm input/output: Yes
• Dynamic range: 132
• Languages support: English/French/German/Italian/Japanese/Portuguese/Russian/Spanish
• Number of languages: 9
• Certification: UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
• Minimum illumination: 0.04
• Tilt angle range: -30 - 85
• Pan range: -240 - 120
• White balance: ATW/AWC
• Camera shutter speed: 1/10000 - 16/30
• Optical sensor size: 1/1.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2
• Focal length range: 4.3 - 8.6
• Focus: Motorized
• Maximum aperture number: 2.4
• Minimum aperture number: 1.5
• Detect distance (tele): 136.5
• Detect distance (wide): 54.9
• Identify distance (tele): 13.6
• Identify distance (wide): 5.5
• Normal focusing range: 1
• Observe distance (tele): 54.6
• Observe distance (wide): 21.9
• Recognize distance (tele): 27.3
• Recognize distance (wide): 11
• LED type: IR
• Maximum resolution: 3328 x 1872
• Total megapixels: 6
• Video compression formats: H.264/H.265
• Frame rate: 60
• Noise reduction: Yes
• Back Light Compensation (BLC): Yes
• Bit rate control: Variable Bit Rate (VBR)
• Highlight Compensation (HLC): Yes
• Image quality adjustment: Automatic gain control (AGC)
• Image stabilizer: Yes
• Privacy masking: Yes
• Audio formats supported: AAC-LC/G.711/G.726
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3at
• Supported network protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UP
• Number of users: 14
• Streaming method: Multicast/Unicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Maximum memory card size: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• Security algorithms: FIPS 140-2/HTTPS
• Video motion detection: Yes
• Web browser: Yes
• Behavior analysis: Scene change detection
• Smartphone/tablet remote support: Yes
• Power source type: PoE
• Power consumption: 260
• Power consumption (typical): 14
• DC output voltage: 12,54
• Operating temperature (T-T): -10 - 50
• Storage temperature (T-T): 0 - 50
• Operating relative humidity (H-H): 10 - 90
• Mobile operating systems supported: Android/iOS
• Width: 129.5
• Depth: 129.5
• Height: 102.5
• Weight: 820
• Compliance certificates: cUL/Federal Communications Commission (FCC)/National Defense Authorization Act (NDAA)/UL
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00608
• Unit Calculated Weight: 1
