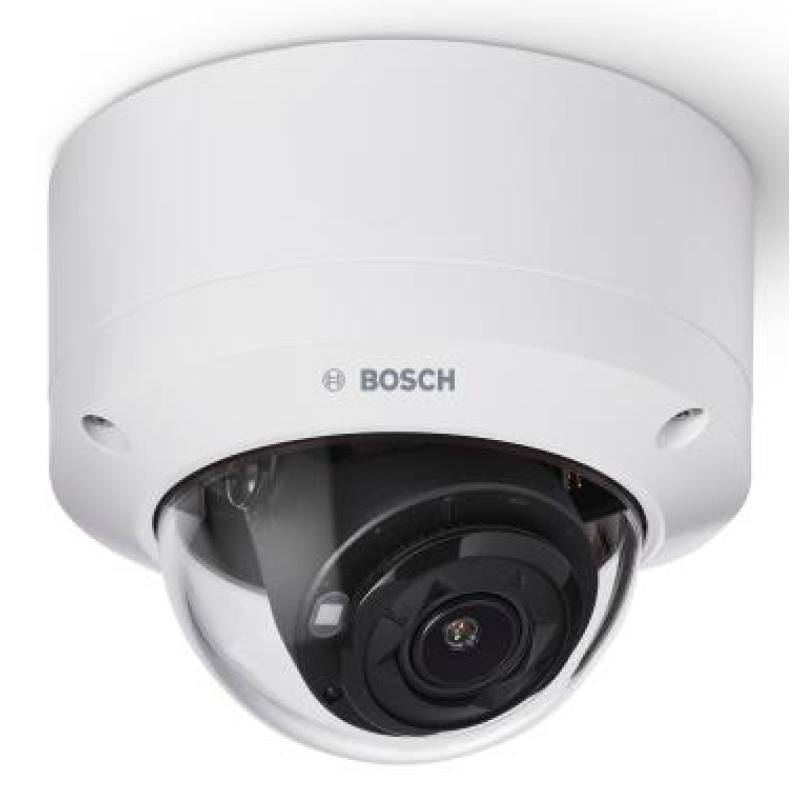

NET CAMERA 8MP IR DOME/NDE-5704-AL BOSCH

NET CAMERA 8MP IR DOME/NDE-5704-AL BOSCH
NET CAMERA 8MP IR DOME/NDE-5704-AL BOSCH
  • Connectivity technology: Wired
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
87,105ден.
  • Достапност:
  • Бренд: BOSCH
  • Шифра: 416692
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Bosch NDE-5704-AL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Lens viewing angle, vertical: 105 - 31°, Lens viewing angle, diagonal: 57 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 3864 x 2192 pixels. Lens diameter: 1.05 cm
  • Name: NET CAMERA 8MP IR DOME/NDE-5704-AL BOSCH
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • Protection features: Impact resistant
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Country of origin: Thailand
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • Wide Dynamic Range (WDR): Yes
  • Dynamic range: 120
  • Certification: CE, FCC, UL, WEEE, RCM, VCCI, UKCA, China RoHS, BIS
  • Lens viewing angle, vertical: 105 - 31
  • Lens viewing angle, diagonal: 57 - 18
  • Number of Privacy masking areas: 8
  • Optical sensor size: 1/2.8
  • Number of effective pixels (H x V): 3864 x 2192
  • Sensor type: CMOS
  • Number of lenses: 1
  • Lens diameter: 10.5
  • Night vision: Yes
  • Night vision distance: 40
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 3840 x 2160
  • Total megapixels: 8
  • Video formats supported: H.264/H.265/HEVC/M-JPEG
  • Supported video modes: 1080p/4320p/720p
  • Frame rate: 30
  • Signal-to-Noise Ratio (SNR): 50
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.3af
  • Supported network protocols: IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/ TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, noip.com); SMTP;
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSDHC/MicroSDXC
  • Maximum memory card size: 2000
  • Ethernet LAN (RJ-45) ports: 1
  • USB port: Yes
  • Power source type: AC,DC,PoE
  • AC input voltage: 24
  • Power consumption (typical): 5.62
  • Power consumption (max): 8.22
  • Power consumption (Power over Ethernet (PoE)): 8.9
  • Operating temperature (T-T): -40 - 55
  • Storage temperature (T-T): -30 - 70
  • Operating relative humidity (H-H): 5 - 93
  • Storage relative humidity (H-H): 0 - 98
  • Height: 122
  • Diameter: 148
  • Weight: 1130
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: PVC
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01102
  • Unit Calculated Weight: 1.5
Specifications
AC input voltage24
Card reader integratedYes
CertificationCE, FCC, UL, WEEE, RCM, VCCI, UKCA, China RoHS, BIS
Compatible memory cardsMicroSDHC/MicroSDXC
Connectivity technologyWired
Country of originThailand
Diameter148
Doesn\'t containPVC
Dynamic range120
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Form factorDome
Frame rate30
Height122
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Infra-red wavelength850
International Protection (IP) codeIP66
LED typeIR
Lens diameter10.5
Lens viewing angle, diagonal57 - 18
Lens viewing angle, vertical105 - 31
ManualYes
Maximum memory card size2000
Maximum resolution3840 x 2160
Mounting typeCeiling
Networking standardsIEEE 802.3af
Night visionYes
Night vision distance40
Number of cameras1
Number of effective pixels (H x V)3864 x 2192
Number of lenses1
Number of Privacy masking areas8
Operating relative humidity (H-H)5 - 93
Operating temperature (T-T)-40 - 55
Optical sensor size1/2.8
Placement supportedOutdoor
Power consumption (max)8.22
Power consumption (Power over Ethernet (PoE))8.9
Power consumption (typical)5.62
Power source typeAC,DC,PoE
Product colourBlack/White
Protection featuresImpact resistant
Sensor typeCMOS
Signal-to-Noise Ratio (SNR)50
Storage relative humidity (H-H)0 - 98
Storage temperature (T-T)-30 - 70
SummaryBosch NDE-5704-AL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Lens viewing angle, vertical: 105 - 31°, Lens viewing angle, diagonal: 57 - 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 3864 x 2192 pixels. Lens diameter: 1.05 cm
Supported network protocolsIPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/ TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, noip.com); SMTP;
Supported video modes1080p/4320p/720p
Total megapixels8
TypeIP security camera
USB portYes
Video formats supportedH.264/H.265/HEVC/M-JPEG
Weight1130
Wide Dynamic Range (WDR)Yes
