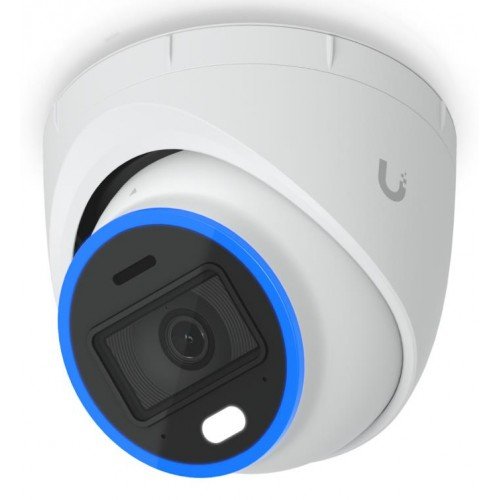

NET CAMERA AI TURRET/WHITE UVC-AI-TURRET-W UBIQUITI

Technical Specifications

• Summary: Ubiquiti AI Turret. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 109.9°, Lens viewing angle, vertical: 56.7°. Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Night vision distance: 40 m, LED type: IR
• Vendor Homepage: https://eu.store.ui.com/eu/en/products/uvc-ai-turret
• Name: NET CAMERA AI TURRET/WHITE UVC-AI-TURRET-W UBIQUITI
• Category Code: FNC
• Model: UVC-AI-TURRET-W
• Form factor: Turret
• Mounting type: Ceiling/wall
• Product colour: White
• LED indicators: Yes
• Housing material: Aluminium/Polycarbonate (PC)
• Protection features: Vandal proof
• International Protection (IP) code: IP66
• IK code: IK08
• Weatherproof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• Infrared (IR) cut-off filter: Yes
• Remote viewing: Yes
• Built-in light: Yes
• Luminous flux: 400
• Built-in processor: Yes
• Processor model: ARM Cortex-A53
• Camera pan control: Yes
• Camera tilt control: Yes
• Angle of rotation: 360
• Lens viewing angle, horizontal: 109.9
• Lens viewing angle, vertical: 56.7
• Lens viewing angle, diagonal: 134.1
• Tilt angle range: 0 - 70
• Pan range: 0 - 360
• Optical sensor size: 1/1.8
• Number of lenses: 1
• Night vision: Yes
• Night vision distance: 40
• LED type: IR
• Maximum resolution: 3840 x 2160
• Total megapixels: 8
• Supported video modes: 2160p
• Frame rate: 30
• Image quality adjustment: Brightness/Colour depth/Contrast/DNR/HDR/Sharpness
• Privacy masking: Yes
• Text caption overlay: Yes
• Built-in speaker(s): Yes
• Audio system: 2-way
• Built-in microphone: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• Ethernet LAN (RJ-45) ports: 1
• Light sensor: Yes
• Web-based management: Yes
• Reset button: Yes
• Smartphone/tablet remote support: Yes
• Power source type: DC,PoE
• Power consumption (max): 20
• DC output voltage: 42.5,57
• Operating temperature (T-T): -30 - 50
• Operating relative humidity (H-H): 10 - 90
• Mobile operating systems supported: Android/iOS
• Height: 111
• Diameter: 118
• Weight: 990
• Cable length: 0.3
• License plate recognition: Yes
• Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
• Number of cameras: 1
• Mounting kit: Yes
• Screws included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 6
• Unit Calculated Volume: 0.007476
• Unit Calculated Weight: 1.39
