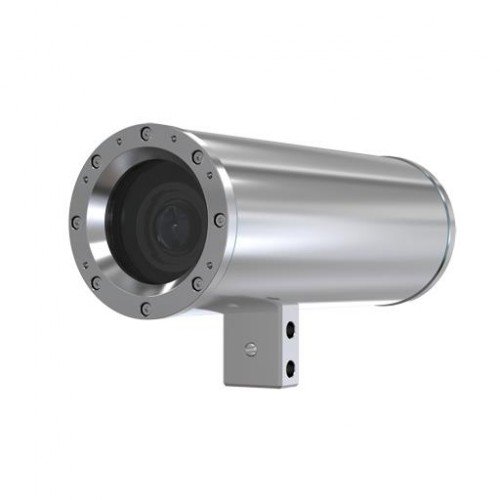

NET CAMERA EXCAM XF P1377 5MP/01929-001 AXIS

Technical Specifications

• Summary: Axis 01929-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Stainless steel, Form factor: Bullet. Lens viewing angle, horizontal: 75 - 31°, Lens viewing angle, vertical: 55 - 23°, Camera shutter speed: WDR: 1/33500 s to 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2.6x, Focal length range: 3.9 - 10 mm
• Vendor Homepage: https://www.axis.com/products/excam-xf-p1377
• Name: NET CAMERA EXCAM XF P1377 5MP/01929-001 AXIS
• Category Code: FNC
• Model: 01929-001
• Form factor: Bullet
• Mounting type: Ceiling/wall
• Product colour: Stainless steel
• Housing material: Stainless steel
• Protection features: Explosion proof
• International Protection (IP) code: IP68
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Remote viewing: Yes
• Processor model: ARTPEC-7
• Built-in heater: Yes
• Dynamic range: 120
• Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 12
• Certification: EMC EN 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 Environment IEC/EN 60529 IP68 Network NIST SP500-267 Explosion EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, TR CU 012/2011, GOST R IEC 60079-0, GOST IEC 60079-1, GO
• Lens viewing angle, horizontal: 75 - 31
• Lens viewing angle, vertical: 55 - 23
• Camera shutter speed: WDR: 1/33500 s to 1/5 s
• Optical sensor size: 1/2.7
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.6
• Number of lenses: 1
• Focal length range: 3.9 - 10
• Focus adjustment: 1.5
• Night vision: Yes
• Maximum resolution: 2592 x 1944
• Total megapixels: 5
• Video formats supported: H.264/H.265
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 1280 x 720 (HD 720)/2592 x 1944/2688 x 1520
• Supported video modes: 720p
• Video recording: Yes
• Frame rate: 180
• Video streaming: Yes
• Image stabilizer: Yes
• Ethernet LAN: Yes
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnPT, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH,
• Card reader integrated: Yes
• Compatible memory cards: MicroSDXC
• Maximum memory card size: 128
• Flash memory: 512
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• Pixel counter: Yes
• Security algorithms: EAP-TLS/HTTPS
• Power source type: PoE
• Power consumption (max): 10.7
• Power consumption (Power over Ethernet (PoE)): 5.4
• Operating temperature (T-T): -60 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Height: 160.5
• Diameter: 113
• Length: 334
• Weight: 7800
• Number of cameras: 1
• Memory card included: MicroSDXC
• Included memory card size: 128
• Packaging content: Installation Guide, Windows decoder 1-user license, SKDP03-T Cable ExCam 5 meter, AXIS Surveillance microSDXC Card 128 GB
• Doesnt contain: BFR/PVC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.07148
• Unit Calculated Weight: 13.1
