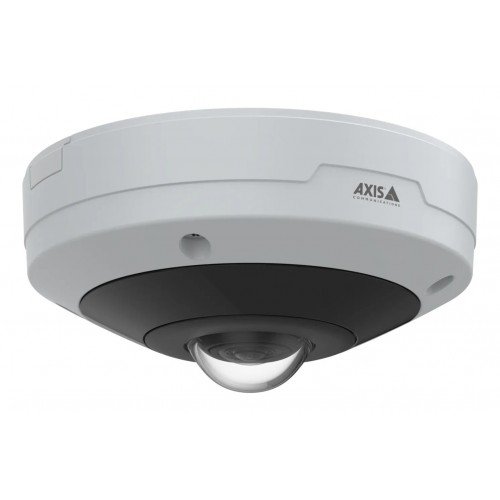

NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS

Technical Specifications

• Summary: Axis M4348-PLVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 185°, Lens viewing angle, vertical: 185°, Camera pixel size: 2 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 1.6 mm (1 / 1.6"). Fixed focal length: 1.7 mm, Closest focusing distance: 0.1 m
• Vendor Homepage: https://www.axis.com/products/axis-m4348-plve
• Name: NET CAMERA FISHEYE DOME/M4348-PLVE 03133-001 AXIS
• Category Code: FNC
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ/Preset point
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Processor model: ARTPEC-9
• Dynamic range: 120
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Minimum illumination: 0
• Lens viewing angle, horizontal: 185
• Lens viewing angle, vertical: 185
• Camera pixel size: 2
• Camera shutter speed: 1/111000 - 2
• Number of sensors: 1
• Optical sensor size: 1/1.6
• Progressive scan: Yes
• Sensor type: CMOS
• Number of lenses: 1
• Maximum aperture number: 2
• Closest focusing distance: 0.1
• Fixed focal length: 1.7
• Night vision: Yes
• Night vision distance: 20
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 3536 x 3536
• Total megapixels: 12
• Video compression formats: AV1/H.264/H.265/M-JPEG/MPEG4
• Frame rate: 30
• Video streaming: Yes
• Gain control type: Auto
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Mirror/Saturation/White balance
• Privacy masking: Yes
• Built-in speaker(s): Yes
• Audio formats supported: AAC/AAC-LC/G.711/G.726/LPCM/OPUS
• Signal-to-Noise Ratio (SNR): 55
• Built-in microphone: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3at
• Supported network protocols: Pv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8000
• Internal memory: 4000
• Ethernet LAN (RJ-45) ports: 1
• Terminal block port: Yes
• Privacy protection: Yes
• Security algorithms: 802.1x RADIUS/AES/EAP-TLS/FIPS 140-2/FIPS 140-3/HTTPS/MSCHAPv2/PEAP/TLS
• Web-based management: Yes
• Cloud-managed: Yes
• Power source type: PoE,DC
• Power consumption (typical): 7.1
• Power consumption (max): 16.7
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Height: 70
• Diameter: 149
• Weight: 880
• Compliance certificates: CE/cUL/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/UL/VCCI
• Number of cameras: 1
• Doesnt contain: Brominated Flame Retardant (BFR)/CFR/PVC
• Iris: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.002743
• Unit Calculated Weight: 1.07
