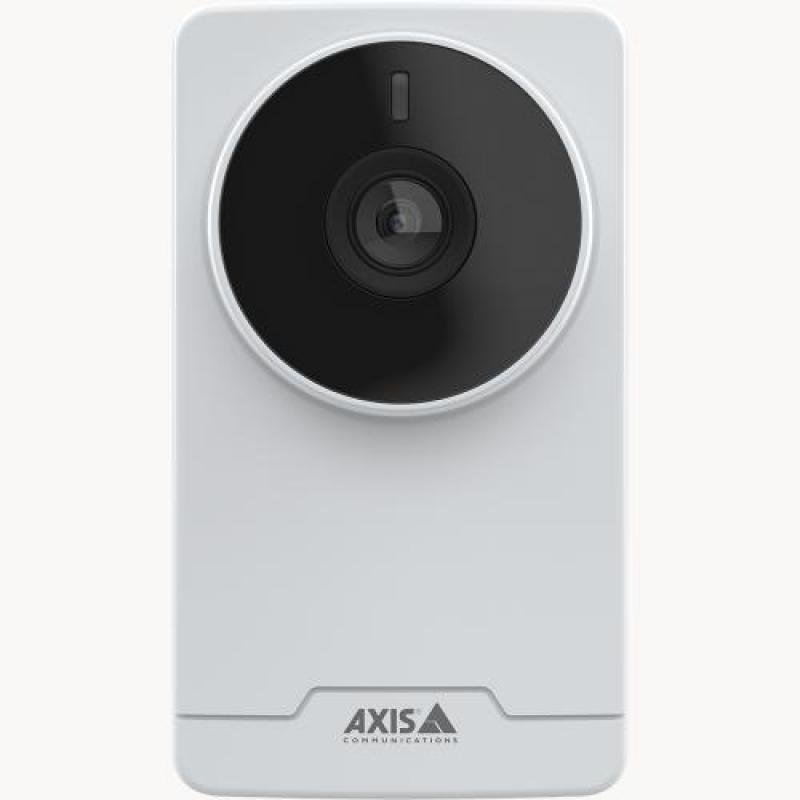

NET CAMERA M1055-L H.264/HDTV 02349-001 AXIS

NET CAMERA M1055-L H.264/HDTV 02349-001 AXIS
NET CAMERA M1055-L H.264/HDTV 02349-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
22,877ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 392055
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 02349-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.16 mm
  • Vendor Homepage: https://www.axis.com/
  • Name: NET CAMERA M1055-L H.264/HDTV 02349-001 AXIS
  • Category Code: FNC
  • Model: M1055-L
  • Form factor: Box
  • Mounting type: Ceiling/wall
  • Product colour: White
  • LED indicators: Yes
  • Housing material: Aluminium/Plastic
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
  • Number of languages: 12
  • Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
  • Minimum illumination: 0.03
  • Lens viewing angle, horizontal: 103
  • Lens viewing angle, vertical: 55
  • Camera shutter speed: 1/19000
  • Number of sensors: 1
  • Optical sensor size: 1/2.9
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focal length: 3.16
  • Night vision: Yes
  • Maximum resolution: 1920 x 1080
  • Video compression formats: AVC/H.264/H.265/HEVC/M-JPEG
  • Supported graphics resolutions: 1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360
  • Supported video modes: 1080p
  • Frame rate: 30
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Colour depth/Contrast/Saturation/Sharpness
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQ
  • Quality of Service (QoS) support: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC
  • Flash memory: 512
  • Ethernet LAN (RJ-45) ports: 1
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS/HTTPS/SNMP
  • Power source type: PoE
  • Power consumption (typical): 2.2
  • Power consumption (max): 4.3
  • Power consumption (Power over Ethernet (PoE)): 4.3
  • DC output voltage: 12
  • DC output current: 2.5
  • Operating temperature (T-T): 0 - 35
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Width: 60
  • Depth: 93
  • Height: 105
  • Weight: 137
  • Number of cameras: 1
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00117
  • Unit Calculated Weight: 0.21
Specifications
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/19000
CertificationEN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC
Connectivity technologyWired
Day/night modeYes
DC output current2.5
DC output voltage12
Depth93
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length3.16
Flash memory512
Form factorBox
Frame rate30
Height105
Housing materialAluminium/Plastic
Image quality adjustmentBrightness/Colour depth/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
IP address filteringYes
Languages supportEnglish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
LED indicatorsYes
Lens viewing angle, horizontal103
Lens viewing angle, vertical55
Maximum resolution1920 x 1080
Minimum illumination0.03
Mounting typeCeiling/wall
Networking standardsIEEE 802.1x
Night visionYes
Number of cameras1
Number of languages12
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 35
Optical sensor size1/2.9
Placement supportedIndoor & outdoor
Power consumption (max)4.3
Power consumption (Power over Ethernet (PoE))4.3
Power consumption (typical)2.2
Power source typePoE
Privacy maskingYes
Product colourWhite
Quality of Service (QoS) supportYes
Security algorithmsEAP-TLS/HTTPS/SNMP
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis 02349-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.16 mm
Supported graphics resolutions1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQ
Supported video modes1080p
Text caption overlayYes
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/M-JPEG
Video intelligence analyticYes
Video streamingYes
Weight137
Wide Dynamic Range (WDR)Yes
Width60
Specs
Category CodeFNC
Description

Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network

  • AXIS Object Analytics preinstalled; Built-in privacy features; Day-and-night with IR illumination; I/O port with 1 input/1 output

ModelM1055-L
NameNET CAMERA M1055-L H.264/HDTV 02349-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/0aa8d541-45ad-4194-a3df-e0d188cfd03b.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/0aa8d541-45ad-4194-a3df-e0d188cfd03b.Jpeg
Unit Calculated Volume0.00117
Unit Calculated Weight0.21
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/
