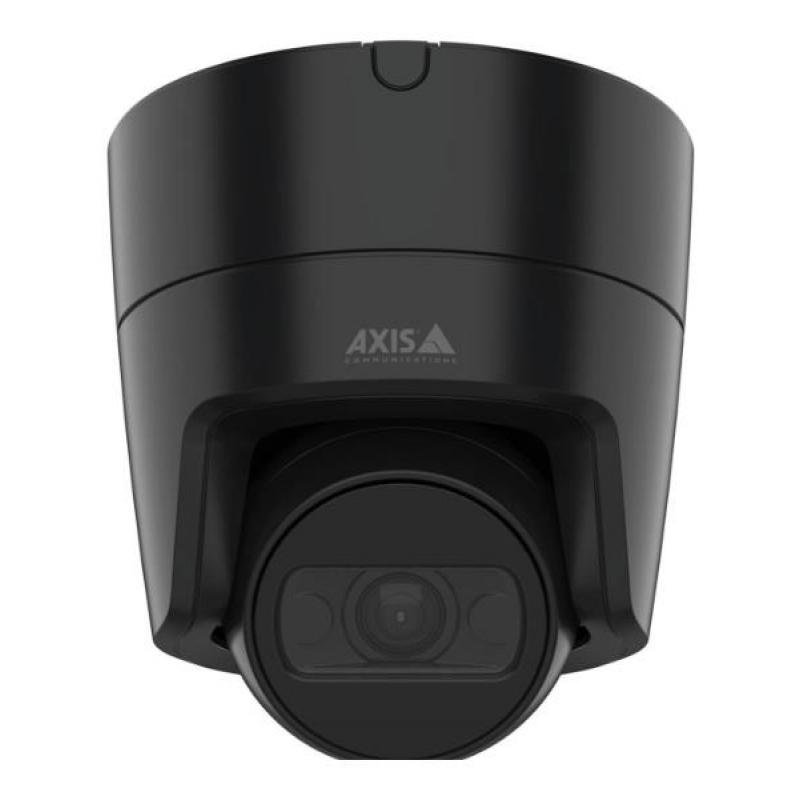

NET CAMERA M3126-LVE 4MP DOME/BLACK 02919-001 AXIS

NET CAMERA M3126-LVE 4MP DOME/BLACK 02919-001 AXIS
NET CAMERA M3126-LVE 4MP DOME/BLACK 02919-001 AXIS
  • Connectivity technology: Wired
  • Zoom capability: No
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
37,949ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 441545
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M3126-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 73°. Sensor type: CMOS, Optical sensor size: 50.8 / 7 mm (2 / 7"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
  • Vendor Homepage: https://www.axis.com/products/axis-m3126-lve#technical-specifications
  • Name: NET CAMERA M3126-LVE 4MP DOME/BLACK 02919-001 AXIS
  • Category Code: FNC
  • Model: 02919-001
  • Form factor: Dome
  • Mounting type: Wall
  • Product colour: Black
  • Housing material: Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK08
  • Country of origin: Sweden
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Maximum operating distance: 47.4
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Built-in light: Yes
  • Luminous flux: 0.19
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 19
  • Angle of rotation: 95
  • Lens viewing angle, horizontal: 130
  • Lens viewing angle, vertical: 73
  • Tilt angle range: 0 - 60
  • Pan range: 0 - 180
  • Camera pixel size: 2
  • Camera shutter speed: 1/38500
  • Signal-to-Noise Ratio (SNR) (panoramic camera): 55
  • Number of sensors: 1
  • Optical sensor size: 2/7
  • Sensor type: CMOS
  • Number of lenses: 1
  • Detect distance: 47.4
  • Observe distance: 18.8
  • Recognize distance: 9.5
  • Focus: Manual
  • Identify distance: 4.7
  • Closest focusing distance: 0.5
  • Fixed focal length: 2.4
  • Night vision: Yes
  • LED type: IR
  • Number of illumination LEDs: 2
  • Infra-red wavelength: 850
  • Maximum resolution: 2688 x 1512
  • Total megapixels: 4
  • Video compression formats: AVC/H.264/H.265/HEVC/MPEG4
  • Video recording: Yes
  • Frame rate: 30
  • Video intelligence analytic: Yes
  • Video streaming: Yes
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness/White balance
  • Text caption overlay: Yes
  • Built-in speaker(s): Yes
  • Audio system: 2-way
  • Audio input channels: 2.0
  • Audio output channels: 2.0
  • Audio formats supported: AAC-LC/ADPCM/LPCM/OPUS/PCM
  • Sample rate: 48
  • Ethernet LAN: Yes
  • Networking standards: IEEE 802.1AE/IEEE 802.1x
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
  • Wi-Fi: Yes
  • Streaming method: Multicast
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • RAM capacity: 1024
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Password protection type: User
  • Digest authentication: Yes
  • Human and vehicle targets classification: Yes
  • Intelligent Video Surveillance (IVS) system features: Human detection/Line crossing detection/Moving object/Vehicle detection
  • Mirror: Yes
  • Motion sensor: Yes
  • Motion sensor technology: Passive infrared (PIR) sensor
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Video motion detection: Yes
  • Cloud-managed: Yes
  • Management software: AXIS Object Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection, active tampering alarm
  • Power source type: PoE
  • Power consumption (typical): 4
  • Power consumption (Power over Ethernet (PoE)): 10.5
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 46
  • Height: 93
  • Diameter: 101
  • Weight: 390
  • Compliance certificates: BIS/BSMI/CE/cUL/EAC/Electromagnetic Compatibility (EMC)/KC/RCM/Trade Agreements Act (TAA)/UL/VCCI
  • Number of cameras: 1
  • Mounting kit: Yes
  • Doesnt contain: PVC
  • Warranty period: 5
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.001587
  • Unit Calculated Weight: 0.54
Specifications
Angle of rotation95
Audio formats supportedAAC-LC/ADPCM/LPCM/OPUS/PCM
Audio input channels2.0
Audio output channels2.0
Audio system2-way
Bit rate controlVariable Bit Rate (VBR)
Built-in lightYes
Built-in speaker(s)Yes
Camera pixel size2
Camera shutter speed1/38500
Card reader integratedYes
Closest focusing distance0.5
Cloud-managedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesBIS/BSMI/CE/cUL/EAC/Electromagnetic Compatibility (EMC)/KC/RCM/Trade Agreements Act (TAA)/UL/VCCI
Connectivity technologyWired
Country of originSweden
Day/night modeYes
Detect distance47.4
Diameter101
Digest authenticationYes
Doesn\'t containPVC
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.4
Flash memory512
FocusManual
Form factorDome
Frame rate30
Height93
Housing materialPolycarbonate (PC)
Human and vehicle targets classificationYes
Identify distance4.7
IK codeIK08
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness/White balance
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Intelligent Video Surveillance (IVS) system featuresHuman detection/Line crossing detection/Moving object/Vehicle detection
International Protection (IP) codeIP66
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
LED typeIR
Lens viewing angle, horizontal130
Lens viewing angle, vertical73
Luminous flux0.19
Management softwareAXIS Object Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection, active tampering alarm
Maximum operating distance47.4
Maximum resolution2688 x 1512
MirrorYes
Motion sensorYes
Motion sensor technologyPassive infrared (PIR) sensor
Mounting kitYes
Mounting typeWall
Networking standardsIEEE 802.1AE/IEEE 802.1x
Night visionYes
Number of cameras1
Number of illumination LEDs2
Number of languages19
Number of lenses1
Number of sensors1
Observe distance18.8
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size2/7
Pan range0 - 180
Password protectionYes
Password protection typeUser
Pixel counterYes
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))10.5
Power consumption (typical)4
Power source typePoE
Privacy protectionYes
Product colourBlack
PTZ controlYes
PTZ modesDigital PTZ
RAM capacity1024
Recognize distance9.5
Sample rate48
Sensor typeCMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)55
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis M3126-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 73°. Sensor type: CMOS, Optical sensor size: 50.8 / 7 mm (2 / 7"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
Text caption overlayYes
Tilt angle range0 - 60
Total megapixels4
TypeIP security camera
Video compression formatsAVC/H.264/H.265/HEVC/MPEG4
Video intelligence analyticYes
Video motion detectionYes
Video recordingYes
Video streamingYes
Warranty period5
Weight390
Wi-FiYes
Wide Dynamic Range (WDR)Yes
Width46
Specs
Category CodeFNC
Description

This turret-style, AI-powered dome camera delivers great 4 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.

Great image quality
AXIS M3126-LVE offers great 4 MP resolution with 130° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. And Axis Lightfinder technology ensures increased light sensitivity and clear colors in low light.

Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).

  • Great image quality in 4 MP
  • WDR, Lightfinder, and OptimizedIR
  • Available in black or white
  • AI-based video analytics
  • Built-in cybersecurity with Axis Edge Vault
