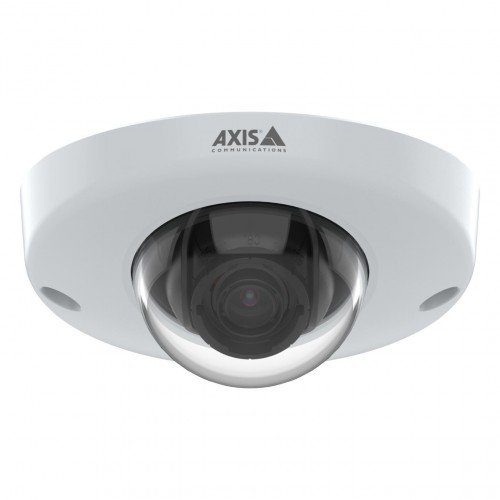

NET CAMERA M3905-R DOME/03118-001 AXIS

Technical Specifications

• Summary: Axis M3905-R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m
• Vendor Homepage: https://www.axis.com/products/axis-m3905-r
• Name: NET CAMERA M3905-R DOME/03118-001 AXIS
• Category Code: FNC
• Model: M3905-R
• Form factor: Dome
• Mounting type: Ceiling
• Product colour: Black/White
• Housing material: Aluminium
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Tour recording: Yes
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Certification: CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, ECE R10 rev.06 (E approval), EN 50498, Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A, Korea: KS C 9835,
• Minimum illumination: 0.02
• Angle of rotation: 350
• Lens viewing angle, horizontal: 107
• Lens viewing angle, vertical: 56
• Tilt angle range: 15 - 90
• Pan range: -30 - 30
• Camera pixel size: 2.8
• Camera shutter speed: 1/19000 - 1/5
• Number of Privacy masking areas: 32
• Number of sensors: 1
• Optical sensor size: 1/2.9
• Sensor type: CMOS
• Number of lenses: 1
• Detect distance: 21.1
• Observe distance: 7.4
• Recognize distance: 4.2
• Identify distance: 2.1
• Maximum aperture number: 1.2
• Closest focusing distance: 0.3
• Fixed focal length: 2.8
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: H.264/H.265/M-JPEG
• Supported graphics resolutions: 1280 x 800/1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360/640 x 400
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Sharpness
• Privacy masking: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP,
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• Internal memory: 1024
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• Pixel counter: Yes
• Security algorithms: 256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP
• Video motion detection: Yes
• Power source type: PoE
• Power consumption (typical): 2.2
• Power consumption (max): 3.8
• Operating temperature (T-T): -30 - 55
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Width: 110
• Depth: 110
• Height: 50
• Weight: 241
• Compliance certificates: REACH/RoHS
• Number of cameras: 1
• Manual: Yes
• Doesnt contain: CFR/PVC/BFR
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001734
• Unit Calculated Weight: 0.373
