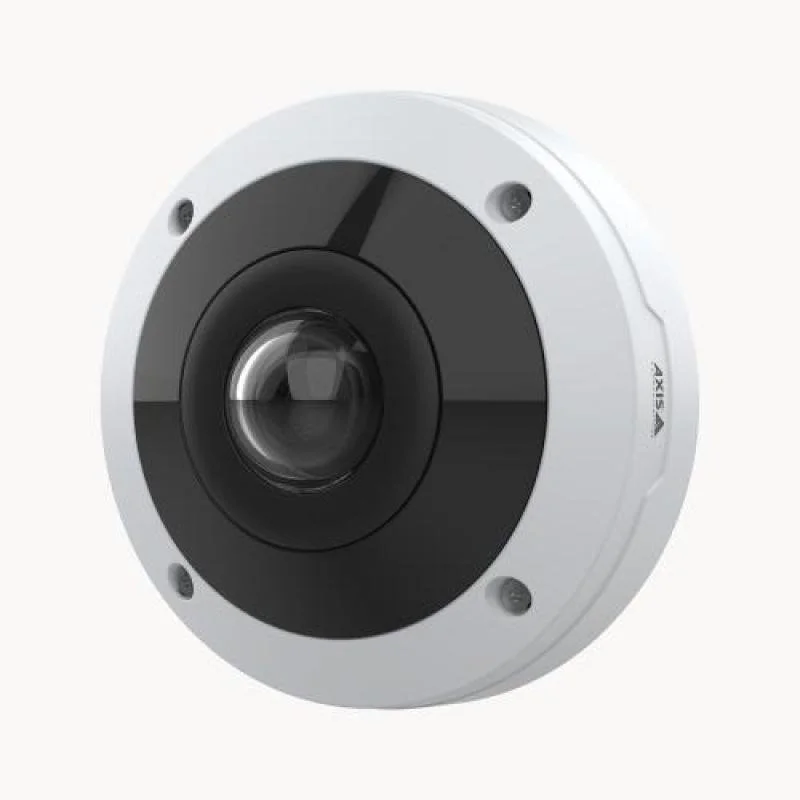

NET CAMERA M4317-PLR DOME/02833-001 AXIS

NET CAMERA M4317-PLR DOME/02833-001 AXIS
NET CAMERA M4317-PLR DOME/02833-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2560 x 1920
  • Total megapixels: 6
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
55,172ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 408686
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M4317-PLR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°, Camera shutter speed: 1/33500 - 0.2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Supported graphics resolutions (panoramic camera): 384 x 288, 2560 x 1440, 2560 x 1920
  • Vendor Homepage: https://www.axis.com/products/axis-m4317-plr
  • Name: NET CAMERA M4317-PLR DOME/02833-001 AXIS
  • Category Code: FNC
  • Model: M4317-PLR
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Outdoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Dynamic range: 120
  • Minimum illumination: 0
  • Lens viewing angle, horizontal: 182
  • Lens viewing angle, vertical: 182
  • Camera shutter speed: 1/33500 - 0.2
  • Sensor type (panoramic camera): CMOS
  • Optical sensor size: 1/1.8
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Supported graphics resolutions (panoramic camera): 2560 x 1440/2560 x 1920/384 x 288
  • Night vision: Yes
  • LED type: IR
  • Maximum resolution: 2560 x 1920
  • Total megapixels: 6
  • Video compression formats: H.264/H.265
  • Supported graphics resolutions: 1920 x 1440/256 x 144/2560 x 1440/2560 x 1920/384 x 288
  • Frame rate: 60
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Privacy masking: Yes
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • IP address filtering: Yes
  • Security algorithms: EAP-TLS/MSCHAPv2/PEAP/TLS
  • Power source type: PoE
  • Power consumption (Power over Ethernet (PoE)): 5.7
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 70
  • Diameter: 149
  • Weight: 860
  • Number of cameras: 1
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.002887
  • Unit Calculated Weight: 1
Specifications
Camera shutter speed1/33500 - 0.2
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter149
Dynamic range120
Ethernet interface typeFast Ethernet
Ethernet LANYes
Flash memory8192
Form factorDome
Frame rate60
Height70
Housing materialAluminium/Polycarbonate (PC)
IK codeIK10
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
LED typeIR
Lens viewing angle, horizontal182
Lens viewing angle, vertical182
Maximum resolution2560 x 1920
Minimum illumination0
Mounting typeCeiling
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/1.8
Placement supportedOutdoor
Power consumption (Power over Ethernet (PoE))5.7
Power source typePoE
Privacy maskingYes
Product colourWhite
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ
Security algorithmsEAP-TLS/MSCHAPv2/PEAP/TLS
Sensor typeCMOS
Sensor type (panoramic camera)CMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
SummaryAxis M4317-PLR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°, Camera shutter speed: 1/33500 - 0.2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Supported graphics resolutions (panoramic camera): 384 x 288, 2560 x 1440, 2560 x 1920
Supported graphics resolutions1920 x 1440/256 x 144/2560 x 1440/2560 x 1920/384 x 288
Supported graphics resolutions (panoramic camera)2560 x 1440/2560 x 1920/384 x 288
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH
Total megapixels6
TypeIP security camera
Video compression formatsH.264/H.265
Video streamingYes
Weight860
Wide Dynamic Range (WDR)Yes
Specs
Category CodeFNC
Description

Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.

360° view with just one camera
Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don’t need to invest in several cameras—with AXIS M4317-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there’s just one camera to install, one cable to drop, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.

Outstanding images
With a stereographic lens and Sharpdome 360, AXIS M4317-PLR delivers greater sharpness at the edges of the image. It features a 6 MP sensor and offers great image quality around the clock, regardless of the light conditions. Forensic WDR provides clarity when there’s both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.

Secure and easy
AXIS M4317-PLR offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with a deep learning processing unit (DLPU), this high-performance camera delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

  • Sharpdome technology
  • Complete 180° and 360° overview
  • Built-in IR with individual IR LEDs
  • Support for advanced analytics
  • Built-in cybersecurity features

ModelM4317-PLR
NameNET CAMERA M4317-PLR DOME/02833-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/819e0caf-4e96-4517-8d24-3e39e1a229e8.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/819e0caf-4e96-4517-8d24-3e39e1a229e8.Jpeg
Unit Calculated Volume0.002887
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m4317-plr
