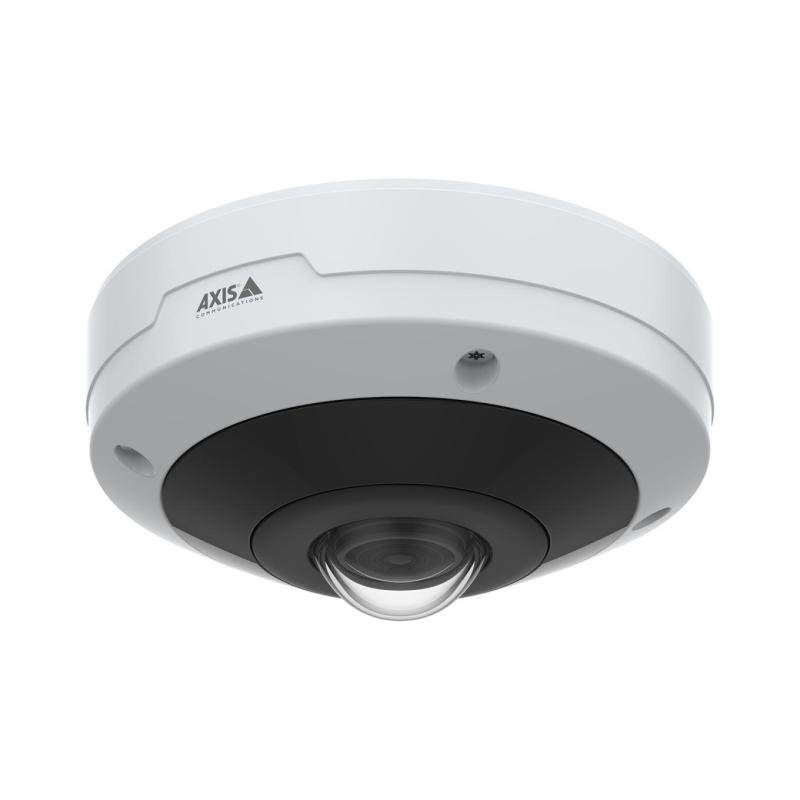

NET CAMERA M4318-PLVE DOME/02511-001 AXIS

NET CAMERA M4318-PLVE DOME/02511-001 AXIS
NET CAMERA M4318-PLVE DOME/02511-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2992 x 2992
  • Total megapixels: 12
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
66,018ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 401820
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M4318-PLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m4318-plve
  • Name: NET CAMERA M4318-PLVE DOME/02511-001 AXIS
  • Category Code: FNC
  • Model: M4318-PLVE
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • LED indicators: Yes
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ/Preset point
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 20
  • Certification: CSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part
  • Minimum illumination: 0.04
  • Lens viewing angle, horizontal: 182
  • Lens viewing angle, vertical: 182
  • Camera shutter speed: 1/8100 - 1/2
  • Number of sensors: 1
  • Optical sensor size: 1/2.3
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focus: Yes
  • Fixed focal length: 2.2
  • Night vision: Yes
  • Night vision distance: 15
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 2992 x 2992
  • Total megapixels: 12
  • Supported graphics resolutions: 2048 x 1536 (QXGA)/256 x 144/2560 x 1920/2880 x 2880/384 x 288/3840 x 2160
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LL
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Human and vehicle targets classification: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/TLS
  • Video motion detection: Yes
  • Behavior analysis: Line crossing detection
  • Power source type: PoE
  • Power consumption (typical): 6.4
  • Power consumption (max): 12.95
  • Operating temperature (T-T): -40 - 50
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Width: 149
  • Depth: 149
  • Height: 70
  • Weight: 860
  • Compliance certificates: RoHS
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: PVC/BFR
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00297
  • Unit Calculated Weight: 1
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio system2-way
Behavior analysisLine crossing detection
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/8100 - 1/2
CertificationCSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesRoHS
Connectivity technologyWired
Day/night modeYes
Depth149
Digest authenticationYes
Doesn\'t containPVC/BFR
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.2
Fixed focusYes
Flash memory8192
Form factorDome
Frame rate30
Height70
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
Human and vehicle targets classificationYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infra-red wavelength850
Infrared (IR) cut-off filterYes
Internal memory2048
International Protection (IP) codeIP66
IP address filteringYes
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
LED indicatorsYes
LED typeIR
Lens viewing angle, horizontal182
Lens viewing angle, vertical182
ManualYes
Maximum resolution2992 x 2992
Minimum illumination0.04
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Night visionYes
Night vision distance15
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of languages20
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-40 - 50
Optical sensor size1/2.3
Password protectionYes
Pixel counterYes
Placement supportedIndoor
Power consumption (max)12.95
Power consumption (typical)6.4
Power source typePoE
Privacy protectionYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ/Preset point
Quality of Service (QoS) supportYes
Security algorithms256-bit AES-XTS/EAP-TLS/TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis M4318-PLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm
Supported graphics resolutions2048 x 1536 (QXGA)/256 x 144/2560 x 1920/2880 x 2880/384 x 288/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LL
Text caption overlayYes
Total megapixels12
TypeIP security camera
Video motion detectionYes
Video streamingYes
Weight860
Wide Dynamic Range (WDR)Yes
Width149
Specs
Category CodeFNC
Description

Sharp images

Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4318-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.

Deep learning on the edge

This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Secure and easy

Built on ARTPEC-8, AXIS M4318-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.



ModelM4318-PLVE
NameNET CAMERA M4318-PLVE DOME/02511-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/bfd7805d-660b-4e5d-b03c-5ff38b959be2.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/bfd7805d-660b-4e5d-b03c-5ff38b959be2.Jpeg
Unit Calculated Volume0.00297
Unit Calculated Weight1
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m4318-plve
