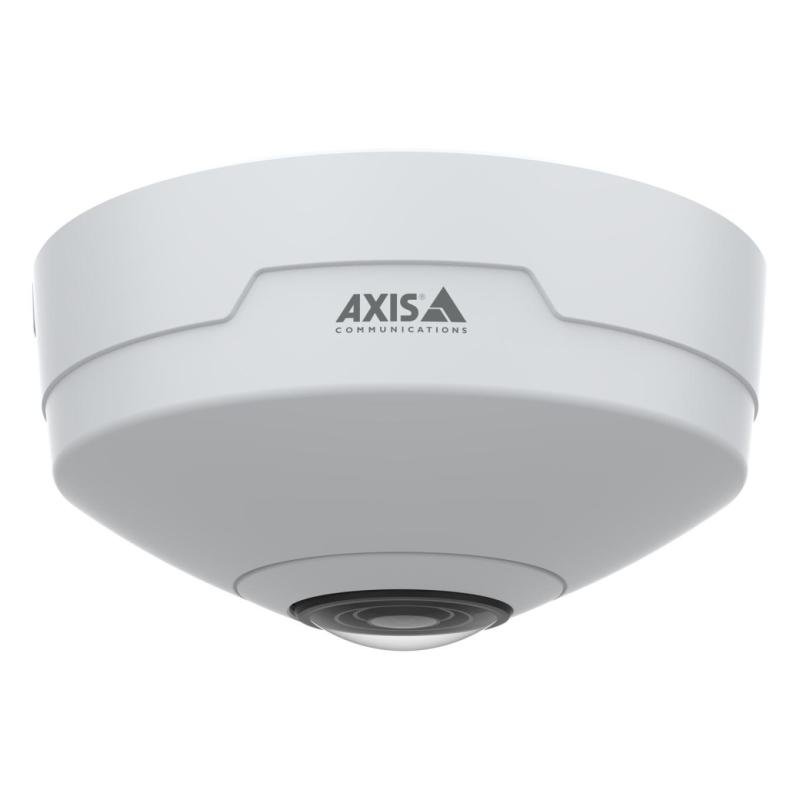

NET CAMERA M4328-P 12MP DOME/02637-001 AXIS

NET CAMERA M4328-P 12MP DOME/02637-001 AXIS
NET CAMERA M4328-P 12MP DOME/02637-001 AXIS
  • Connectivity technology: Wired
  • Maximum resolution: 2992 x 2992
  • Total megapixels: 12
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
53,215ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 403728
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis M4328-P. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm
  • Vendor Homepage: https://www.axis.com/products/axis-m4328-p
  • Name: NET CAMERA M4328-P 12MP DOME/02637-001 AXIS
  • Category Code: FNC
  • Model: M4328-P
  • Form factor: Dome
  • Mounting type: Ceiling/wall
  • Product colour: Black/White
  • LED indicators: Yes
  • Housing material: Plastic
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor
  • PTZ control: Yes
  • PTZ modes: Digital PTZ/Preset point
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
  • Number of languages: 20
  • Certification: CSA, UL/cUL, BIS, UKCA, CE, KC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A
  • Minimum illumination: 0.04
  • Lens viewing angle, horizontal: 182
  • Lens viewing angle, vertical: 182°
  • Camera shutter speed: 1/8100 - 1/2
  • Number of sensors: 1
  • Optical sensor size: 1/2.3
  • Progressive scan: Yes
  • Sensor type: CMOS
  • Number of lenses: 1
  • Fixed focus: Yes
  • Fixed focal length: 2.2
  • Maximum resolution: 2992 x 2992
  • Total megapixels: 12
  • Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
  • Supported graphics resolutions: 2048 x 1536 (QXGA)/256 x 144/2560 x 1920/2880 x 2880/384 x 288/3840 x 2160
  • Frame rate: 30
  • Video streaming: Yes
  • Noise reduction: Yes
  • Noise reduction technology: 2D noise reduction,3D noise reduction
  • Bit rate control: Variable Bit Rate (VBR)
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Text caption overlay: Yes
  • Audio system: 2-way
  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet
  • Networking standards: IEEE 802.3af/IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, C
  • Quality of Service (QoS) support: Yes
  • Streaming method: Multicast
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 8192
  • Internal memory: 2048
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • Active tampering alarm: Yes
  • Alert notification type: E-mail
  • Digest authentication: Yes
  • HTTPS encryption: Yes
  • Human and vehicle targets classification: Yes
  • IP address filtering: Yes
  • Pixel counter: Yes
  • Privacy protection: Yes
  • Security algorithms: 256-bit AES-XTS/EAP-TLS/TLS
  • Video motion detection: Yes
  • Behavior analysis: Line crossing detection
  • Power source type: PoE
  • Power consumption (typical): 3.5
  • Power consumption (max): 5.1
  • Operating temperature (T-T): 0 - 40
  • Storage temperature (T-T): -40 - 65
  • Operating relative humidity (H-H): 10 - 85
  • Storage relative humidity (H-H): 5 - 95
  • Width: 101
  • Depth: 101
  • Height: 51
  • Weight: 300
  • Compliance certificates: RoHS
  • Number of cameras: 1
  • Manual: Yes
  • Doesnt contain: PVC/BFR
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.00132
  • Unit Calculated Weight: 0.43
Specifications
Active tampering alarmYes
Alert notification typeE-mail
Audio system2-way
Behavior analysisLine crossing detection
Bit rate controlVariable Bit Rate (VBR)
Camera shutter speed1/8100 - 1/2
CertificationCSA, UL/cUL, BIS, UKCA, CE, KC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Compliance certificatesRoHS
Connectivity technologyWired
Day/night modeYes
Depth101
Digest authenticationYes
Doesn\'t containPVC/BFR
Ethernet interface typeFast Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Fixed focal length2.2
Fixed focusYes
Flash memory8192
Form factorDome
Frame rate30
Height51
Housing materialPlastic
HTTPS encryptionYes
Human and vehicle targets classificationYes
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Infrared (IR) cut-off filterYes
Internal memory2048
IP address filteringYes
Languages supportCzech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
LED indicatorsYes
Lens viewing angle, horizontal182
Lens viewing angle, vertical182°
ManualYes
Maximum resolution2992 x 2992
Minimum illumination0.04
Mounting typeCeiling/wall
Networking standardsIEEE 802.3af/IEEE 802.3at
Noise reductionYes
Noise reduction technology2D noise reduction,3D noise reduction
Number of cameras1
Number of languages20
Number of lenses1
Number of sensors1
Operating relative humidity (H-H)10 - 85
Operating temperature (T-T)0 - 40
Optical sensor size1/2.3
Password protectionYes
Pixel counterYes
Placement supportedIndoor
Power consumption (max)5.1
Power consumption (typical)3.5
Power source typePoE
Privacy protectionYes
Product colourBlack/White
Progressive scanYes
PTZ controlYes
PTZ modesDigital PTZ/Preset point
Quality of Service (QoS) supportYes
Security algorithms256-bit AES-XTS/EAP-TLS/TLS
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 65
Streaming methodMulticast
SummaryAxis M4328-P. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.04 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"). Fixed focal length: 2.2 mm
Supported graphics resolutions2048 x 1536 (QXGA)/256 x 144/2560 x 1920/2880 x 2880/384 x 288/3840 x 2160
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, C
Text caption overlayYes
Total megapixels12
TypeIP security camera
Video formats supportedAVC/H.264/H.265/HEVC/M-JPEG/MPEG4
Video motion detectionYes
Video streamingYes
Weight300
Wide Dynamic Range (WDR)Yes
Width101
Specs
Category CodeFNC
Description

Great video performance

AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.

Deep learning on the edge

This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before — on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify moving objects in a scene — all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Great look and ease of installation

This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It’s delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview – no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.



ModelM4328-P
NameNET CAMERA M4328-P 12MP DOME/02637-001 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/077ff91d-3214-4864-98eb-4c50407b8552.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/077ff91d-3214-4864-98eb-4c50407b8552.Jpeg
Unit Calculated Volume0.00132
Unit Calculated Weight0.43
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/products/axis-m4328-p
