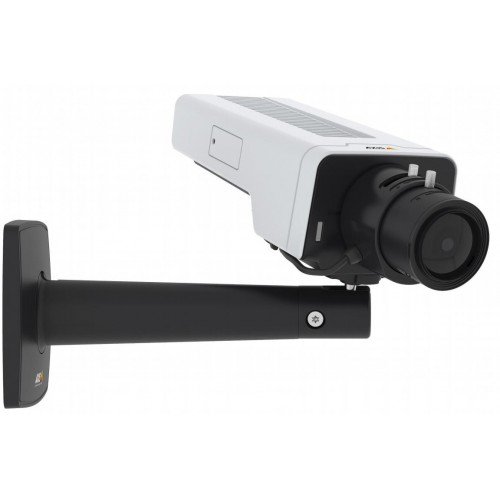

NET CAMERA P1375 2MP/01532-001 AXIS

Technical Specifications

• Summary: Axis 01532-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 121°, Lens viewing angle, vertical: 63°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Maximum resolution: 1920 x 1080 pixels, Total megapixels: 2 MP, Video formats supported: AVC, HEVC, M-JPEG, MPEG4
• Vendor Homepage: https://www.axis.com/products/axis-p1375
• Name: NET CAMERA P1375 2MP/01532-001 AXIS
• Category Code: FNC
• Form factor: Box
• Mounting type: Wall
• Product colour: Black/White
• Housing material: Zinc
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• PTZ control: Yes
• PTZ modes: Digital PTZ
• PTZ protocols: Pelco-D
• Tour recording: Yes
• Wide Dynamic Range (WDR): Yes
• Infrared (IR) cut-off filter: Yes
• Languages support: English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese
• Number of languages: 12
• Certification: EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 60950-1, NIST SP500-267
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.01
• Lens viewing angle, horizontal: 121
• Lens viewing angle, vertical: 63
• Camera shutter speed: 1/66500 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Progressive scan: Yes
• Sensor type: CMOS
• Number of lenses: 1
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: AVC/HEVC/M-JPEG/MPEG4
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 160 x 90/1920 x 1080 (HD 1080)
• Supported video modes: 1080p
• Frame rate: 60
• Video streaming: Yes
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Audio formats supported: ADPCM/G.711/LC-AAC/OPUS/PCM
• Frequency range: 8000 - 48000
• Audio detection: Yes
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 512
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• HTTPS encryption: Yes
• IP address filtering: Yes
• Video motion detection: Yes
• Power source type: DC,PoE
• Power consumption (typical): 5.1
• Power consumption (max): 9.6
• Power consumption (Power over Ethernet (PoE)): 9.6
• Operating temperature (T-T): -10 - 55
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 85
• Width: 80
• Depth: 214
• Height: 57
• Weight: 750
• Number of cameras: 1
• Mounting kit: Yes
• Manual: Yes
• Harmonized System (HS) code: 85258900
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.005356
• Unit Calculated Weight: 1.31
