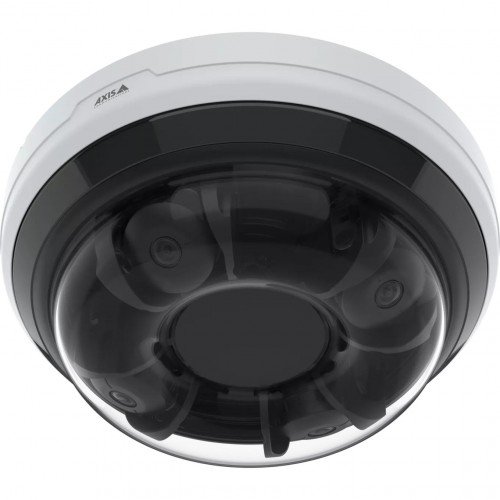

NET CAMERA P3747-PLVE 20MP/02897-001 AXIS

Technical Specifications

• Summary: Axis 02897-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.1 lx, Horizontal field of view (thermal module): 360°, Lens viewing angle, horizontal: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.78 mm (1 / 2.78"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
• Vendor Homepage: https://www.axis.com/products/axis-p3747-plve#part-numbers
• Name: NET CAMERA P3747-PLVE 20MP/02897-001 AXIS
• Category Code: FNC
• Model: 02897-001
• Form factor: Dome
• Mounting type: Ceiling/wall
• Product colour: Black/White
• LED indicators: Activity
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Preset points: Yes
• Maximum operating distance: 20
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Remote viewing: Yes
• Built-in light: Yes
• Languages support: Arabic/Czech/Dutch/English/Finnish/French/Greek/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Camera tilt control: Yes
• Minimum illumination: 0.1
• Horizontal field of view (thermal module): 360
• Lens viewing angle, horizontal: 360
• Lens viewing angle, vertical: 71.5 - 30.0
• Camera pixel size: 2
• Camera shutter speed: 1/19500 - 1
• Sensor type (panoramic camera): CMOS
• Signal-to-Noise Ratio (SNR) (panoramic camera): 55
• Number of sensors: 1
• Optical sensor size: 1/2.78
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Number of lenses: 3
• Focal length range: 3.18 - 7.42
• Fixed focus: Yes
• Focus: Motorized
• Night vision: Yes
• Night vision distance: 20
• LED type: IR
• Number of illumination LEDs: 2
• Infra-red wavelength: 850
• Maximum resolution: 2592 x 1944
• Total megapixels: 5
• Video formats supported: H.264/H.265
• Video compression formats: M-JPEG/MPEG/MPEG4
• Supported graphics resolutions: 2560 x 1440/2592 x 1944/640 x 360/640 x 480 (VGA)
• Video recording: Yes
• Frame rate: 20
• Video intelligence analytic: Yes
• Video streaming: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Mirror/Saturation/Sharpness
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Built-in speaker(s): Yes
• Audio system: 2-way
• Audio system full duplex: Yes
• Audio input channels: 2.0
• Audio output channels: 2.0
• Audio formats supported: RTSP
• Frequency range: 50 - 60
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
• Number of simultaneous live view channels: 4
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• RAM capacity: 4096
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• HTTPS encryption: Yes
• Human and vehicle targets classification: Yes
• Intelligent Video Surveillance (IVS) system features: Human detection/Vehicle detection
• IP address filtering: Yes
• Motion sensor: Yes
• Network access storage (NAS): Yes
• Pixel counter: Yes
• Privacy protection: Yes
• Security algorithms: 256-bit AES-XTS/FIPS 140-2/HTTPS/SNMP
• Video motion detection: Yes
• Remotely operated: Yes
• Power source type: PoE
• Power consumption (typical): 10.8
• Power consumption (max): 23.7
• Operating temperature (T-T): -40 - 50
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 141
• Depth: 220
• Height: 75
• Weight: 3000
• License plate recognition: Yes
• Compliance certificates: BSMI/CE/cUL/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI
• Number of cameras: 1
• Mounting kit: Yes
• Mounting brackets included: Yes
• Memory card included: Yes
• Manual: Yes
• Doesnt contain: BFR/CFR/PVC
• Warranty period: 5
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02082
• Unit Calculated Weight: 3
