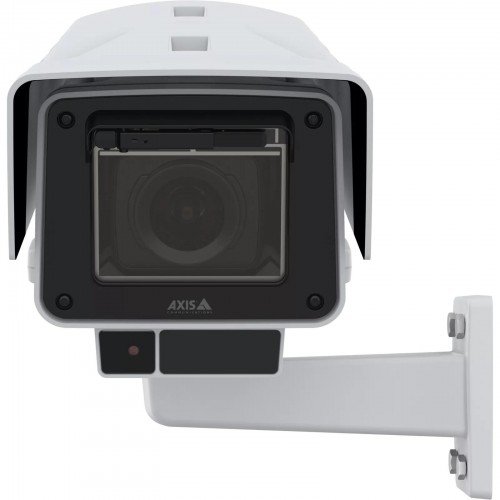

NET CAMERA Q1726-LE BLOCK/03393-001 AXIS

Technical Specifications

• Summary: Axis Q1726-LE Block Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Box. Lens viewing angle, horizontal: 101.8 - 44°, Lens viewing angle, vertical: 54 - 24.6°, Camera pixel size: 2.9 µm. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 2.17x, Focal length range: 4.7 - 10 mm, Focus: Motorized
• Vendor Homepage: https://www.axis.com/products/axis-q1726-le
• Name: NET CAMERA Q1726-LE BLOCK/03393-001 AXIS
• Category Code: FNC
• Form factor: Box
• Mounting type: Ceiling/Wall/Pole
• Product colour: White
• Housing material: Aluminium/Plastic
• Protection features: Vandal proof/Wind resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Fog proof: Yes
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Alarm input/output: Yes
• Dynamic range: 120
• Languages support: Multi
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0
• Lens viewing angle, horizontal: 101.8 - 44
• Lens viewing angle, vertical: 54 - 24.6
• Camera pixel size: 2.9
• Camera shutter speed: 1/49500 - 2
• Optical sensor size: 1/1.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 2.17
• Number of lenses: 1
• Focal length range: 4.7 - 10
• Auto focus: Yes
• Focus: Motorized
• Maximum aperture number: 1.2
• Minimum aperture number: 1.1
• Detect distance (tele): 141
• Detect distance (wide): 65
• Identify distance (tele): 14
• Identify distance (wide): 6.4
• Normal focusing range: 0.5 -
• Observe distance (tele): 56
• Observe distance (wide): 26
• Recognize distance (tele): 28
• Recognize distance (wide): 13
• Night vision: Yes
• Night vision distance: 50
• LED type: IR
• Maximum resolution: 2688 x 1512
• Total megapixels: 4
• Video compression formats: AV1/H.264/H.265
• Supported graphics resolutions: 2688 x 1512
• Supported video modes: 1512p
• Frame rate: 120
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Image quality adjustment: Contrast
• Image stabilizer: Yes
• Signal-to-Noise Ratio (SNR): 55
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
• Cabling technology: 10/100/1000Base-T(X)
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDXC/MiniSDHC
• Flash memory: 8
• Internal memory: 4
• Ethernet LAN (RJ-45) ports: 1
• RS-422 ports: 1
• RS-485 ports: 1
• Microphone in: Yes
• DC-in jack: Yes
• Alarm input channels: 4
• Alarm output channels: 4
• Active tampering alarm: Yes
• HTTPS encryption: Yes
• Privacy protection: Yes
• Video motion detection: Yes
• Power source type: PoE,DC
• Power consumption (typical): 6.9
• Power consumption (max): 25.5
• Power consumption (Power over Ethernet (PoE)): 7.7
• DC output voltage: 10,28
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 178
• Depth: 441
• Height: 303
• Weight: 4844
• Compliance certificates: CE/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UL/VCCI
• Number of cameras: 1
• Doesnt contain: Cadmium/Lead/Mercury
• Iris: Yes
• Suitable for outdoor use: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.03024
• Unit Calculated Weight: 5.85
