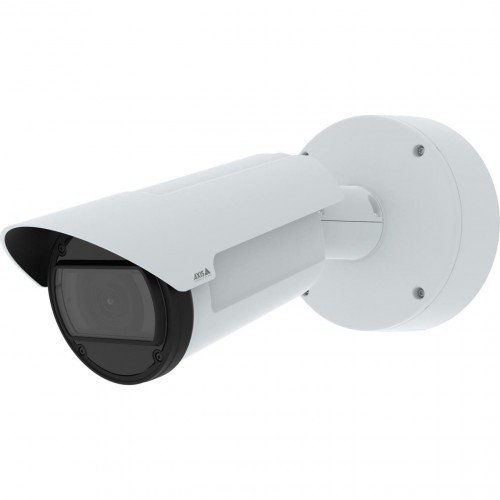

NET CAMERA Q1805-LE 2MP BULLET/02504-001 AXIS

Technical Specifications

• Summary: Axis Q1805-LE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.01 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 60 - 2.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Focal length range: 4.3 - 137 mm, Detect distance (wide): 60.5 m
• Vendor Homepage: https://www.axis.com/products/axis-q1805-le
• Name: NET CAMERA Q1805-LE 2MP BULLET/02504-001 AXIS
• Category Code: FNC
• Model: Q1805-LE
• Form factor: Bullet
• Mounting type: Wall
• Product colour: Black/White
• Housing material: Aluminium/Glass
• Protection features: Impact resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Indoor & outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Preset points: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Certification: UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
• Minimum illumination: 0.01
• Angle of rotation: 360
• Lens viewing angle, horizontal: 60 - 2.3
• Lens viewing angle, vertical: 39 - 1.3
• Tilt angle range: 0 - 90
• Pan range: -180 - 180
• Camera pixel size: 2.9
• Camera shutter speed: 1/111000 - 2
• Number of sensors: 1
• Optical sensor size: 1/2.8
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 32
• Number of lenses: 1
• Focal length range: 4.3 - 137
• Maximum aperture number: 4
• Minimum aperture number: 1.4
• Closest focusing distance: 1.2
• Detect distance (tele): 1884.2
• Detect distance (wide): 60.5
• Identify distance (tele): 188.4
• Identify distance (wide): 6
• Observe distance (tele): 747.7
• Observe distance (wide): 24
• Recognize distance (tele): 376.8
• Recognize distance (wide): 12.1
• Night vision: Yes
• Night vision distance: 100
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Total megapixels: 2
• Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Supported graphics resolutions: 1400 x 1050 (SXGA+)/160 x 120/1920 x 1080 (HD 1080)/320 x 180
• Supported video modes: 1080p
• Frame rate: 90
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
• Image stabilizer: Yes
• Privacy masking: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/PCM
• Sample rate: 48
• Signal-to-Noise Ratio (SNR): 55
• Audio detection: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Fast Ethernet/Gigabit Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LL
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• ROM capacity: 2048
• Ethernet LAN (RJ-45) ports: 1
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Password protection: Yes
• Active tampering alarm: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• Intelligent Video Surveillance (IVS) system features: Human detection/Line crossing detection/Moving object/Vehicle detection
• Pixel counter: Yes
• Video motion detection: Yes
• Remotely operated: Yes
• Power source type: PoE
• Power consumption (typical): 12.6
• Power consumption (max): 51
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Width: 183
• Depth: 411
• Height: 183
• Weight: 3200
• Compliance certificates: REACH/RoHS
• Number of cameras: 1
• Cables included: LAN (RJ-45)
• Manual: Yes
• Doesnt contain: PVC/BFR
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01852
• Unit Calculated Weight: 3
