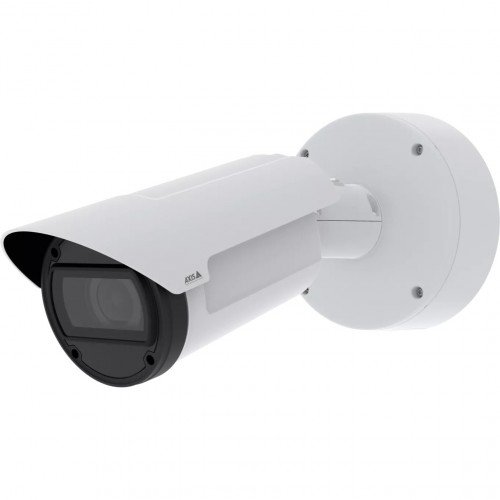

NET CAMERA Q1809-LE 41MP/03019-001 AXIS

Technical Specifications

• Summary: Axis Q1809-LE 150mm. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.04 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 21 - 7°. Sensor type: CMOS, Optical sensor size: 101.6 / 3 mm (4 / 3"). Focal length range: 50 - 150 mm, Focus: Motorized, Detect distance (wide): 853.8 m
• Vendor Homepage: https://www.axis.com/products/axis-q1809-le
• Name: NET CAMERA Q1809-LE 41MP/03019-001 AXIS
• Category Code: FNC
• Model: 03019-001
• Form factor: Bullet
• Mounting type: Ceiling/wall
• Product colour: Black/White
• Housing material: Aluminium/Glass
• Protection features: Impact resistant
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• PTZ modes: Digital PTZ
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Certification: CSA, UL/cUL, CE, EAC, VCCI, RCM
• Minimum illumination: 0.04
• Angle of rotation: 270
• Lens viewing angle, horizontal: 21 - 7
• Lens viewing angle, vertical: 12 - 4
• Tilt angle range: 0 - 90
• Pan range: -180 - 180
• Camera pixel size: 2.315
• Camera shutter speed: 1/15500 - 2
• Number of sensors: 1
• Optical sensor size: 4/3
• Sensor type: CMOS
• Zoom capability: Yes
• Number of lenses: 1
• Focal length range: 50 - 150
• Focus: Motorized
• Maximum aperture number: 4
• Closest focusing distance: 5
• Detect distance (tele): 2551.6
• Detect distance (wide): 853.8
• Identify distance (tele): 255.2
• Identify distance (wide): 85.4
• Observe distance (tele): 1012.6
• Observe distance (wide): 338.8
• Recognize distance (tele): 510.2
• Recognize distance (wide): 170.8
• Night vision: Yes
• LED type: IR
• Infra-red wavelength: 900
• Maximum resolution: 7680 x 4320
• Total megapixels: 41
• Video formats supported: AVC/H.264/H.265/HEVC/M-JPEG/MPEG4
• Video compression formats: H.264/H.265
• Supported graphics resolutions: 1280 x 800/160 x 120/160 x 90/3840 x 2160
• Frame rate: 30
• Video streaming: Yes
• Noise reduction: Yes
• Noise reduction technology: 2D noise reduction,3D noise reduction
• Gain control type: Auto
• Bit rate control: Variable Bit Rate (VBR)
• Image quality adjustment: Brightness/Contrast/Mirror/Sharpness
• Image stabilizer: Yes
• Text caption overlay: Yes
• Audio formats supported: AAC-LC/ADPCM/G.711/G.726/LPCM/PCM
• Sample rate: 48
• Signal-to-Noise Ratio (SNR): 55
• Ethernet LAN: Yes
• Networking standards: IEEE 802.1AE/IEEE 802.1x
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd , HTTP/2, TLSd , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v
• Quality of Service (QoS) support: Yes
• Streaming method: Multicast
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• ROM capacity: 4096
• Microphone in: Yes
• Terminal block port: Yes
• DC-in jack: Yes
• Password protection: Yes
• Alert notification type: E-mail
• Digest authentication: Yes
• Pixel counter: Yes
• Security algorithms: EAP-TLS/HTTPS
• Cloud-managed: Yes
• Remotely operated: Yes
• Power source type: DC,PoE
• Power consumption (typical): 17.6
• Power consumption (max): 35
• Power consumption (Power over Ethernet (PoE)): 18.9
• Operating temperature (T-T): -40 - 55
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Depth: 411
• Height: 183
• Diameter: 183
• Weight: 3200
• Compliance certificates: REACH/RoHS
• Number of cameras: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01659
• Unit Calculated Weight: 4.01
