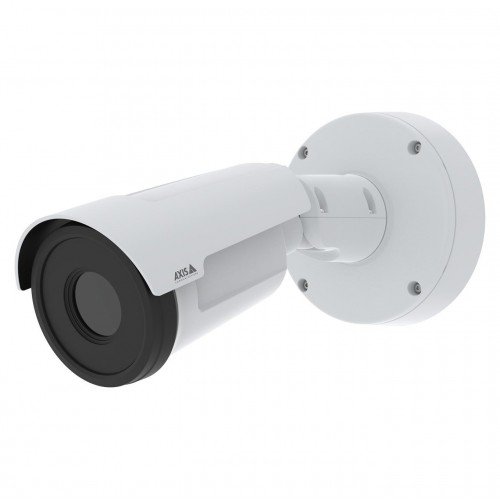

NET CAMERA Q1961-TE 7MM 30FPS/THERMAL 02174-001 AXIS

Technical Specifications

• Summary: Axis 02174-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm
• Vendor Homepage: https://www.axis.com/products/axis-q1961-te
• Name: NET CAMERA Q1961-TE 7MM 30FPS/THERMAL 02174-001 AXIS
• Category Code: FNC
• Model: Q1961-TE
• Form factor: Bullet
• Mounting type: Wall
• Product colour: White
• Housing material: Aluminium/Polycarbonate (PC)
• International Protection (IP) code: IP66, IP67
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• Thermal module: Yes
• Built-in processor: Yes
• Processor model: ARTPEC-8
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 19
• Thermal sensitivity (NETD): 40
• Certification: CSA, UL/cUL, UKCA, CE, KC
• Lens viewing angle, horizontal: 55
• Camera pixel size: 17
• Sensor type (thermal module): Noise equivalent temperature difference (NETD)
• Sensor type: Microbolometer
• Lens diameter: 7
• Maximum aperture number: 1.18
• Maximum resolution: 384 x 288
• Video compression formats: H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 30
• Video streaming: Yes
• Gain control type: Auto
• Privacy masking: Yes
• Audio system: 1-way
• Audio input channels: 1.0
• Audio output channels: 1.0
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
• Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
• Flash memory: 8192
• Internal memory: 2048
• Ethernet LAN (RJ-45) ports: 1
• Headphone outputs: 1
• Terminal block port: Yes
• DC-in jack: Yes
• Temperature sensor: Yes
• Temperature measurement accuracy: 5
• Temperature measurement range: -40 - 350
• Fire detection: Yes
• Password protection: Yes
• Active tampering alarm: Yes
• Digest authentication: Yes
• IP address filtering: Yes
• Mirror: Yes
• Network access storage (NAS): Yes
• Pixel counter: Yes
• Video motion detection: Yes
• Power source type: DC,PoE
• Power consumption (typical): 4.1
• Power consumption (max): 12.95
• Power consumption (Power over Ethernet (PoE)): 4.3
• DC output voltage: 10,12,15,16,24,28
• Operating temperature (T-T): -40 - 60
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Storage relative humidity (H-H): 5 - 95
• Diameter: 132
• Length: 272
• Weight: 1400
• Number of cameras: 1
• Manual: Yes
• Packaging content: Drill template, TORX L-keys, terminal block connectors, connector guard, cable gaskets, owner authentication key
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.005824
• Unit Calculated Weight: 2
