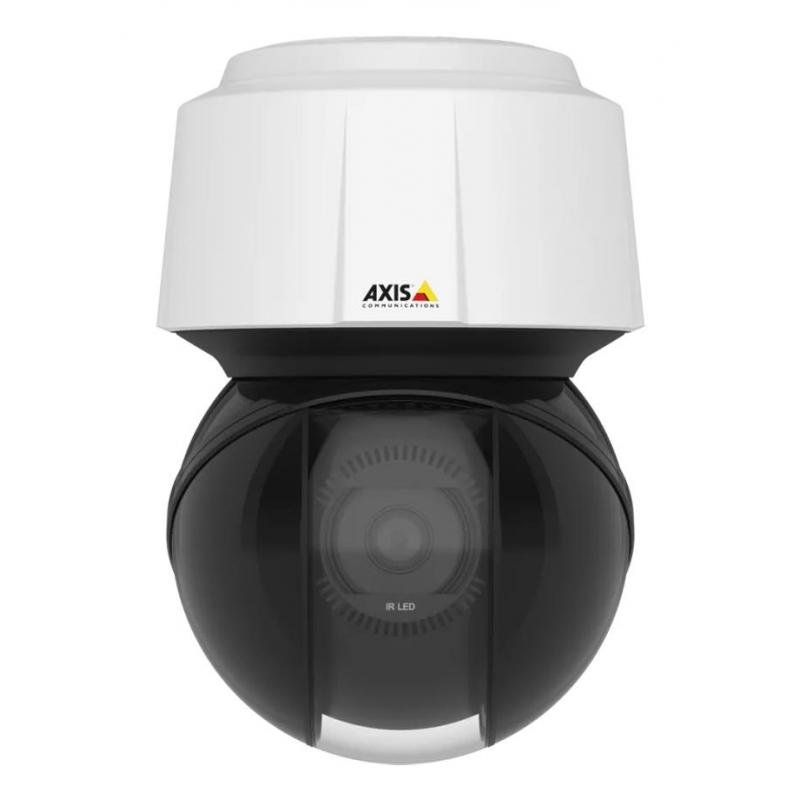

NET CAMERA Q6135-LE 50HZ/PTZ DOME HDTV 01958-002 AXIS

NET CAMERA Q6135-LE 50HZ/PTZ DOME HDTV 01958-002 AXIS
NET CAMERA Q6135-LE 50HZ/PTZ DOME HDTV 01958-002 AXIS
  • Connectivity technology: Wired
  • Zoom capability: Yes
  • Maximum resolution: 1920 x 1080
  • Ethernet LAN: Yes
Врз основа на 0 коментари. - Напиши коментар
172,622ден.
  • Достапност:
  • Бренд: AXIS
  • Шифра: 320715
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Axis 01958-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Tilt angle range: 20 - 90°, Tilt speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x
  • Vendor Homepage: https://www.axis.com/en-us/products/axis-q6135-le
  • Name: NET CAMERA Q6135-LE 50HZ/PTZ DOME HDTV 01958-002 AXIS
  • Category Code: FNC
  • Form factor: Dome
  • Mounting type: Ceiling
  • Product colour: Black/White
  • Housing material: Aluminium/Polycarbonate (PC)
  • International Protection (IP) code: IP66
  • IK code: IK10
  • Type: IP security camera
  • Connectivity technology: Wired
  • Placement supported: Indoor & outdoor
  • PTZ control: Yes
  • Tour recording: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.01
  • Tilt angle range: 20 - 90
  • Tilt speed: 500
  • Pan range: 0 - 360
  • Pan speed: 700
  • Camera shutter speed: 1/66500 s to 2s
  • Optical sensor size: 1/2.8
  • Sensor type: CMOS
  • Zoom capability: Yes
  • Optical zoom: 32
  • Digital zoom: 12
  • Auto focus: Yes
  • Maximum aperture number: 4
  • Minimum aperture number: 1.4
  • Night vision: Yes
  • Night vision distance: 250
  • LED type: IR
  • Infra-red wavelength: 850
  • Maximum resolution: 1920 x 1080
  • Video formats supported: H.264/H.265/M-JPEG
  • Supported graphics resolutions: 1920 x 1080 (HD 1080)/320 x 180
  • Supported video modes: 1080p
  • Video streaming: Yes
  • Image quality adjustment: Brightness/Contrast/Saturation/Sharpness
  • Image stabilizer: Yes
  • Privacy masking: Yes
  • Text caption overlay: Yes
  • Ethernet LAN: Yes
  • Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC
  • Flash memory: 512
  • Internal memory: 1204
  • Ethernet LAN (RJ-45) ports: 1
  • Password protection: Yes
  • HTTPS encryption: Yes
  • IP address filtering: Yes
  • Power source type: AC,PoE
  • AC input voltage: 100-240
  • Power consumption (typical): 13.5
  • Power consumption (max): 51
  • Power consumption (Power over Ethernet (PoE)): 37
  • Operating temperature (T-T): -30 - 50
  • Storage temperature (T-T): -40 - 70
  • Operating relative humidity (H-H): 10 - 100
  • Storage relative humidity (H-H): 5 - 95
  • Height: 241
  • Diameter: 165
  • Weight: 3000
  • Number of cameras: 1
  • Harmonized System (HS) code: 85258900
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.01767
  • Unit Calculated Weight: 4.31
Specifications
AC input voltage100-240
Auto focusYes
Camera pan controlYes
Camera shutter speed1/66500 s to 2s
Camera tilt controlYes
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)/MicroSDHC/MicroSDXC
Connectivity technologyWired
Day/night modeYes
Diameter165
Digital zoom12
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Flash memory512
Form factorDome
Harmonized System (HS) code85258900
Height241
Housing materialAluminium/Polycarbonate (PC)
HTTPS encryptionYes
IK codeIK10
Image quality adjustmentBrightness/Contrast/Saturation/Sharpness
Image stabilizerYes
Infra-red wavelength850
Internal memory1204
International Protection (IP) codeIP66
IP address filteringYes
LED typeIR
Maximum aperture number4
Maximum resolution1920 x 1080
Minimum aperture number1.4
Minimum illumination0.01
Mounting typeCeiling
Night visionYes
Night vision distance250
Number of cameras1
Operating relative humidity (H-H)10 - 100
Operating temperature (T-T)-30 - 50
Optical sensor size1/2.8
Optical zoom32
Pan range0 - 360
Pan speed700
Password protectionYes
Placement supportedIndoor & outdoor
Power consumption (max)51
Power consumption (Power over Ethernet (PoE))37
Power consumption (typical)13.5
Power source typeAC,PoE
Privacy maskingYes
Product colourBlack/White
PTZ controlYes
Sensor typeCMOS
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)-40 - 70
SummaryAxis 01958-002. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Tilt angle range: 20 - 90°, Tilt speed: 500 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x
Supported graphics resolutions1920 x 1080 (HD 1080)/320 x 180
Supported network protocolsIPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Sy
Supported video modes1080p
Text caption overlayYes
Tilt angle range20 - 90
Tilt speed500
Tour recordingYes
TypeIP security camera
Video formats supportedH.264/H.265/M-JPEG
Video streamingYes
Weight3000
Wide Dynamic Range (WDR)Yes
Zoom capabilityYes
Specs
Category CodeFNC
Description

AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.

  • Autotracking 2 and orientation aid; HDTV 1080p with 32x optical zoom; Lightfinder 2.0; OptimizedIR (250 m/820 ft range); TPM, FIPS 140-2 level 2 certified

NameNET CAMERA Q6135-LE 50HZ/PTZ DOME HDTV 01958-002 AXIS
PictureUrlhttps://static.elko.cloud/ProductImages/92e72155-193d-4707-925b-36aec9aebdb5.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/92e72155-193d-4707-925b-36aec9aebdb5.Jpeg
Unit Calculated Volume0.01767
Unit Calculated Weight4.31
Units per Shipping Box1
Vendor Homepagehttps://www.axis.com/en-us/products/axis-q6135-le
