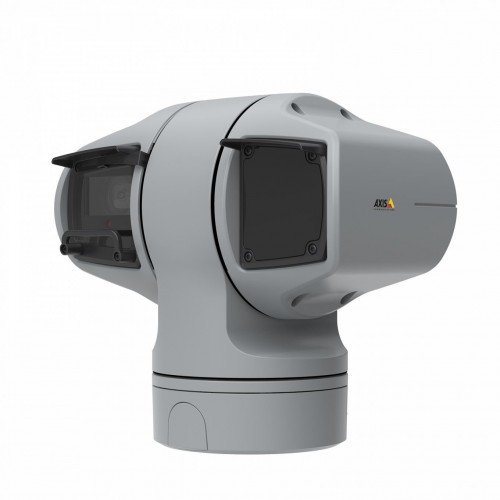

NET CAMERA Q6225-LE PTZ 50HZ/02316-002 AXIS

Technical Specifications

• Summary: Axis 02316-002. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Grey, Form factor: Box. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 63.8°, Lens viewing angle, vertical: 37°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 31x, Digital zoom: 12x, Focal length range: 6.91 - 214.64 mm
• Vendor Homepage: https://www.axis.com/products/axis-q6225-le
• Name: NET CAMERA Q6225-LE PTZ 50HZ/02316-002 AXIS
• Category Code: FNC
• Form factor: Box
• Mounting type: Wall
• Product colour: Grey
• Housing material: Aluminium
• International Protection (IP) code: IP66, IP68
• IK code: IK10
• Type: IP security camera
• Connectivity technology: Wired
• Placement supported: Outdoor
• PTZ control: Yes
• Auto-tracking: Yes
• Tour recording: Yes
• Wide Dynamic Range (WDR): Yes
• Day/night mode: Yes
• Infrared (IR) cut-off filter: Yes
• Built-in processor: Yes
• Processor model: ARTPEC-7
• Languages support: Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese
• Number of languages: 18
• Certification: EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
• Camera pan control: Yes
• Camera tilt control: Yes
• Minimum illumination: 0.05
• Lens viewing angle, horizontal: 63.8
• Lens viewing angle, vertical: 37
• Tilt angle range: -90 - 90
• Tilt speed: 150
• Pan speed: 150
• Camera shutter speed: 1/111000 - 1/2
• Optical sensor size: 1/2
• Progressive scan: Yes
• Sensor type: CMOS
• Zoom capability: Yes
• Optical zoom: 31
• Digital zoom: 12
• Focal length range: 6.91 - 214.64
• Auto focus: Yes
• Maximum aperture number: 4.6
• Minimum aperture number: 1.36
• Night vision: Yes
• Night vision distance: 400
• LED type: IR
• Infra-red wavelength: 850
• Maximum resolution: 1920 x 1080
• Video compression formats: H.264/H.265/M-JPEG
• Video recording: Yes
• Frame rate: 50
• Video streaming: Yes
• Privacy masking: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Networking standards: IEEE 802.1x/IEEE 802.3bt
• Supported network protocols: IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS
• Quality of Service (QoS) support: Yes
• Card reader integrated: Yes
• Compatible memory cards: SD/SDHC/SDXC
• Flash memory: 512
• Internal memory: 1024
• Ethernet LAN (RJ-45) ports: 1
• Password protection: Yes
• Digest authentication: Yes
• HTTPS encryption: Yes
• IP address filtering: Yes
• Network access storage (NAS): Yes
• Pixel counter: Yes
• Video motion detection: Yes
• Power source type: PoE
• AC input voltage: 100 - 240
• Power consumption (typical): 25
• Power consumption (max): 71
• Operating temperature (T-T): -50 - 55
• Storage temperature (T-T): -40 - 65
• Operating relative humidity (H-H): 10 - 100
• Width: 313
• Depth: 210
• Height: 330
• Weight: 8700
• Number of cameras: 1
• Cables included: LAN (RJ-45)
• Manual: Yes
• Packaging content: Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.04043
• Unit Calculated Weight: 11.6
