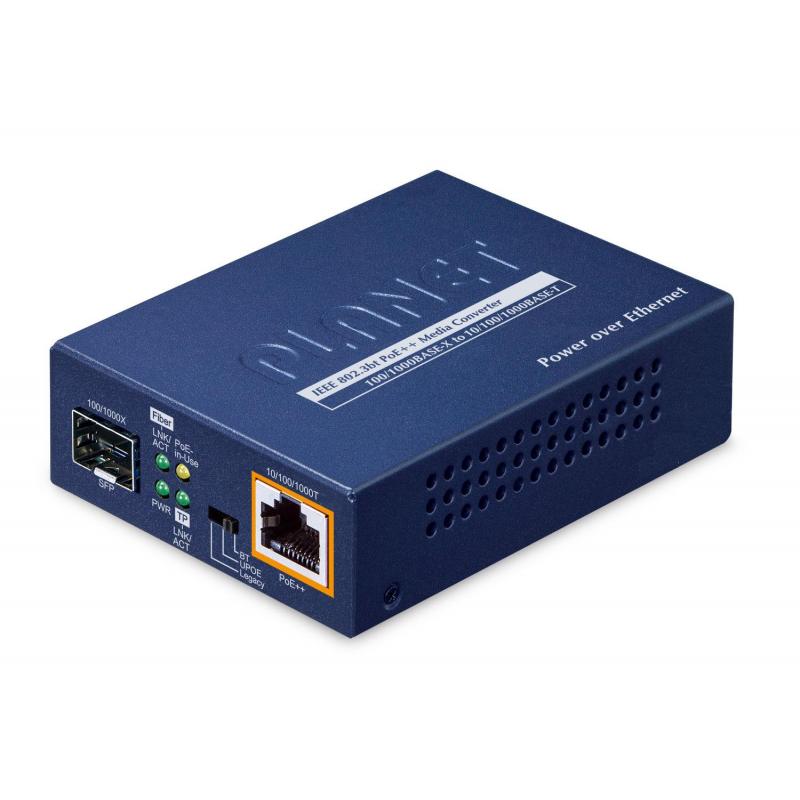

NET MEDIA CONVERTER POE+/GUP-805A-60W PLANET

802.3bt PoE++ 60-watt Power over 4-pair UTP Solution

As PLANET GUP-805A-60W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings

With a total power budget of up to 60 watts for different kinds of PoE applications, the GUP-805A-60W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.


High Performance and Steady Network Communications Guaranteed Despite Distance Extension

The GUP-805A-60W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-60W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications.


802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options

To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-60W provides one DIP switch for multi-PoE operation modes that include 60-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode


BT: This mode fully supports IEEE 802.3af/at/bt standards.
UPOE: This mode fully supports Cisco UPoE standards or PoH standards.
Legacy: The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard. This protects against damage to the PDs as the right PoE mode is applied.



Learn more: https://www.planet.com.tw/en/product/gup-805a-60w

• Physical Port
• ．Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
• ．Copper RJ45 interface with Data + Power output
• ．Copper port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
• ．Fiber media allows
• ．．Multi-mode fiber using LC connector
• ．．Single-mode fiber using LC connector
• Power over Ethernet
• ．Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE
• ．Backward Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
• ．Provides DC 52V~55V power over RJ45 Ethernet cable to devices with Ethernet port
• ．RJ45 PoE++ port with built-in 802.3bt type-4 PoE 60W injector function
• ．Auto detects powered device (PD)
• ．Circuit protection prevents power interference between ports
• ．Remote power feeding up to 100m
• ．IEEE 802.3bt/IEEE 802.3at splitter devices compatibility
• Layer 2 Features
• ．Store-and-Forward mechanism
• ．Non-blocking full wire-speed forwarding rate
• ．IEEE 802.1Q Tag VLAN transparent, multicast pass through
• ．9K jumbo frame
• ．IEEE 802.3x full-duplex and half-duplex back-pressure flow control to eliminate the loss of packets
• Mechanical
• ．Metal case
• ．LED indicators for easy network diagnostics
• ．DIP switch for PoE power feeding options (BT/UPOE/Legacy) selection
• ．DC 52V~55V power input socket
• ．Wall mounting or DIN-rail installation (optional)
• ．Compact in size, easy installation
