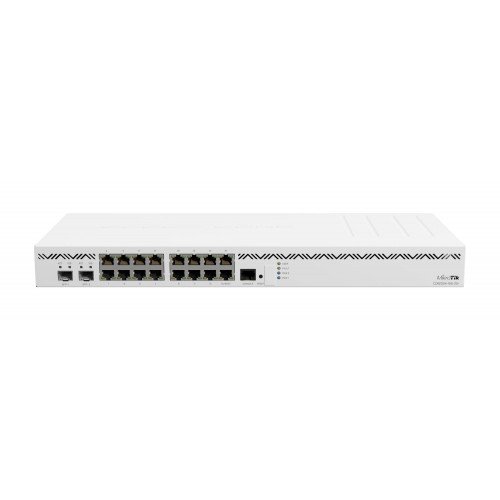

CCR2004-16G-2S+

Technical Specifications

• Summary: Mikrotik CCR2004-16G-2S+. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: RoHS. Processor manufacturer: Annapurna Labs, Processor frequency: 1700 MHz, Flash memory: 128 MB. Product colour: White, Rack capacity: 1U. Power consumption (typical): 48 W, Power source type: AC, AC input voltage: 100 - 240 V
• Vendor Homepage: https://mikrotik.com/product/ccr2004_16g_2s_#fndtn-specifications
• Name: NET ROUTER 1000M 16PORT/CCR2004-16G-2S+ MIKROTIK
• Category Code: ROU
• Product model code: CCR2004-16G-2S+
• Ethernet WAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Cabling technology: 10/100/1000Base-T(X)
• Ethernet LAN data rates: 10/100/1000
• Full duplex: Yes
• Ethernet LAN (RJ-45) ports: 16
• SFP module slots quantity: 2
• Compliance certificates: RoHS
• Built-in processor: Yes
• Processor manufacturer: Annapurna Labs
• Processor frequency: 1700
• Flash memory: 128
• Internal memory: 4096
• Internal memory type: DDR4
• Temperature monitoring: Yes
• Voltage monitoring: Yes
• Mean time between failures (MTBF): 200000
• Certification: CE, EAC, ROHS
• Product colour: White
• Rack mounting: Yes
• Rack capacity: 1U
• Power consumption (typical): 48
• Power source type: AC
• AC input voltage: 100 - 240
• AC input frequency: 50 - 60
• Input current: 0.9
• Operating temperature (T-T): -20 - 60
• Width: 443
• Depth: 44
• Height: 210
• Harmonized System (HS) code: 85176990
• Units per Pallet: 0
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.009864
• Unit Calculated Weight: 2.82
