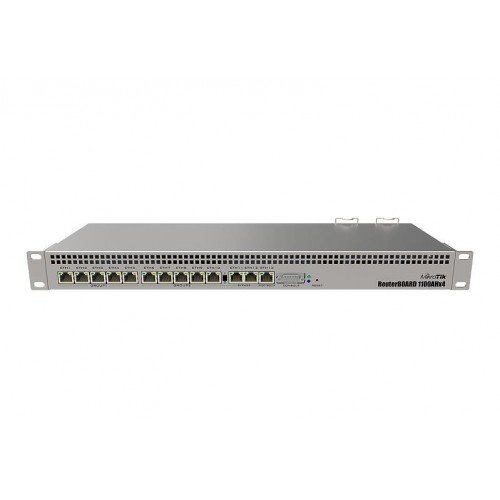

RB1100AHx4

Technical Specifications

• Summary: Mikrotik RB1100AHx4. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Cables included: AC. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz, Storage media: Flash. Product colour: Stainless steel, Rack capacity: 1U, LED indicators: Activity, Fault. Power consumption (typical): 20 W, Power source type: AC, DC, PoE, AC input voltage: 100 - 240 V
• Vendor Homepage: https://mikrotik.com/product/rb1100ahx4#fndtn-specifications
• Name: NET ROUTER 10/100/1000M 13PORT/RB1100X4 MIKROTIK
• Category Code: ROU
• Product model code: RB1100AHx4
• Ethernet WAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Ethernet LAN: Yes
• Cabling technology: 10/100/1000Base-T(X)
• Ethernet LAN data rates: 10/100/1000
• Throughput: 7.5
• Web-based management: Yes
• Firmware upgradeable: Yes
• Ethernet LAN (RJ-45) ports: 13
• RS-232 ports: 1
• DC-in jack: Yes
• IP address filtering: Yes
• Cables included: AC
• Built-in processor: Yes
• Processor model: Annapurna Labs Alpine AL21400
• Processor frequency: 1400
• Processor cores: 4
• Storage media: Flash
• Flash memory: 128
• Internal memory: 1000
• Compatible memory cards: MicroSD (TransFlash)
• Temperature monitoring: Yes
• Voltage monitoring: Yes
• Operating system installed: RouterOS
• Product colour: Stainless steel
• Rack mounting: Yes
• Rack capacity: 1U
• LED indicators: Activity/Fault
• Antenna type: Not supported
• Power consumption (typical): 20
• Power source type: AC,DC,PoE
• AC input voltage: 100 - 240
• Power over Ethernet (PoE): Yes
• Operating temperature (T-T): -40 - 70
• Width: 444
• Depth: 148
• Height: 47
• Harmonized System (HS) code: 85176990
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.006486
• Unit Calculated Weight: 1.8
