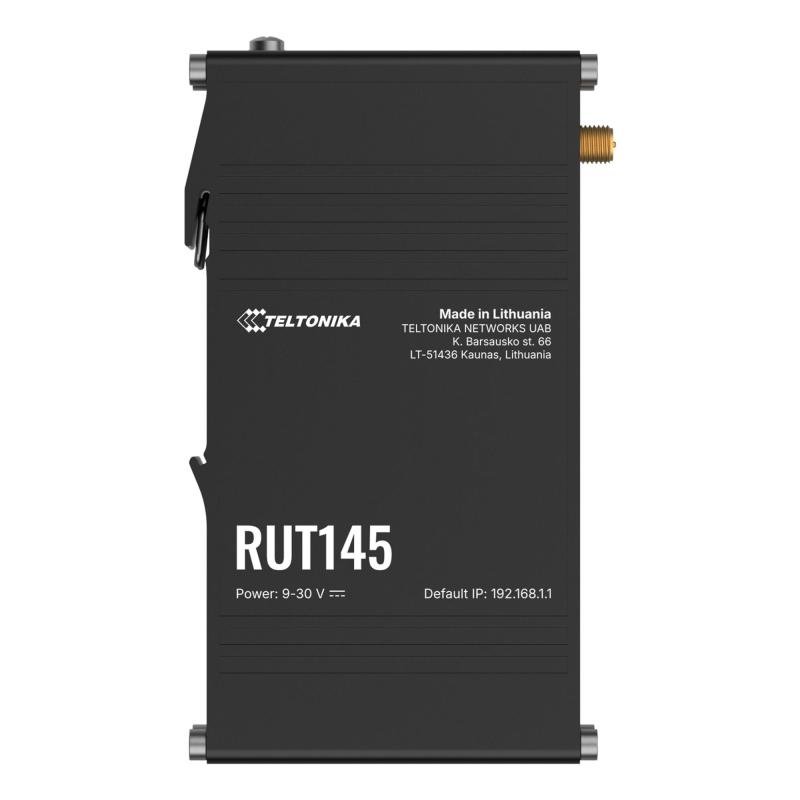

RUT145 Industrial router

RUT145 Industrial router
RUT145 Industrial router
  • Wi-Fi band: Single-band (2.4 GHz)
  • Top Wi-Fi standard: Wi-Fi 4 (802.11n)
  • Ethernet LAN data rates: 10/100
  • Ethernet LAN (RJ-45) ports: 2
  • USB port: No
Врз основа на 0 коментари. - Напиши коментар
5,182ден.
  • Достапност: Има залиха
  • Бренд: TELTONIKA
  • Шифра: 460157
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
Во кошничка
Листа на желби Спореди
1

Technical Specifications

  • Summary: Teltonika RUT145. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS. Product type: Industrial router, Product colour: Black, Housing material: Aluminium
  • Vendor Homepage: https://www.teltonika-networks.com/products/routers/rut145
  • Name: NET ROUTER 10/100M 2PORTS/RUT145 TELTONIKA
  • Category Code: WRO
  • Model name: RUT145
  • Wi-Fi band: Single-band (2.4 GHz)
  • Top Wi-Fi standard: Wi-Fi 4 (802.11n)
  • Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)
  • Ethernet WAN: Yes
  • WAN connection type: RJ-45
  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Fast Ethernet
  • Ethernet LAN data rates: 10/100
  • Cabling technology: 10/100Base-T(X)
  • Networking standards: IEEE 802.11e/IEEE 802.11k/IEEE 802.11r/IEEE 802.11s/IEEE 802.11v/IEEE 802.11w/IEEE 802.1x/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Port forwarding: Yes
  • Load balancing system: Yes
  • Dynamic DNS (DDNS): Yes
  • Policy-based routing: Yes
  • Static route: Yes
  • Ethernet LAN (RJ-45) ports: 2
  • RS-485 ports: 1
  • Web-based management: Yes
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Quality of Service (QoS) support: Yes
  • Wake-on-LAN ready: Yes
  • Reset button: Yes
  • Cloud-managed: Yes
  • Backup function: Yes
  • Security algorithms: AES-CCMP/EAP-TLS/OWE/TKIP/WPA2-Enterprise-PEAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK
  • Firewall: Yes
  • DoS attack prevention: Yes
  • MAC address filtering: Yes
  • URL filtering: Yes
  • System event log: Yes
  • DMZ support: Yes
  • Network address translation (NAT): Yes
  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Product colour: Black
  • Housing material: Aluminium
  • International Protection (IP) code: IP30
  • LED indicators: WAN,LAN,Power
  • Product type: Industrial router
  • Cables included: Power
  • Quick start guide: Yes
  • Compliance certificates: CB/CE/EAC/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA/WEEE
  • Antenna design: External
  • Antenna connector type: RP-SMA
  • Antennas quantity: 1
  • Built-in processor: Yes
  • Processor manufacturer: MediaTek
  • Processor architecture: MIPS 24KEc
  • Processor frequency: 580
  • Internal memory: 128
  • Internal memory type: DDR2
  • Flash memory: 16
  • Number of simultaneously connected devices (max): 50
  • Operating system installed: RutOS
  • Firmware upgradeable: Yes
  • Power source type: DC
  • Output voltage: 9 - 30
  • Power over Ethernet (PoE): Yes
  • Operating relative humidity (H-H): 10 - 90
  • Operating temperature (T-T): -40 - 75
  • Depth: 68.6
  • Height: 25
  • Weight: 140
  • Width: 113.1
  • Number of products included: 1
  • Harmonized System (HS) code: 851762
  • Units per Pallet: 0
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.000357
  • Unit Calculated Weight: 0.1
Specifications
Antenna connector typeRP-SMA
Antenna designExternal
Antennas quantity1
Auto MDI/MDI-XYes
Backup functionYes
Built-in processorYes
Cables includedPower
Cabling technology10/100Base-T(X)
Cloud-managedYes
Compliance certificatesCB/CE/EAC/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA/WEEE
Depth68.6
DHCP clientYes
DHCP serverYes
DMZ supportYes
DoS attack preventionYes
Dynamic DNS (DDNS)Yes
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10/100
Ethernet LAN interface typeFast Ethernet
Ethernet WANYes
FirewallYes
Firmware upgradeableYes
Flash memory16
Harmonized System (HS) code851762
Height25
Housing materialAluminium
Internal memory128
Internal memory typeDDR2
International Protection (IP) codeIP30
LED indicatorsWAN,LAN,Power
Load balancing systemYes
MAC address filteringYes
Network address translation (NAT)Yes
Networking standardsIEEE 802.11e/IEEE 802.11k/IEEE 802.11r/IEEE 802.11s/IEEE 802.11v/IEEE 802.11w/IEEE 802.1x/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
Number of products included1
Number of simultaneously connected devices (max)50
Operating relative humidity (H-H)10 - 90
Operating system installedRutOS
Operating temperature (T-T)-40 - 75
Output voltage9 - 30
Policy-based routingYes
Port forwardingYes
Power over Ethernet (PoE)Yes
Power source typeDC
Processor architectureMIPS 24KEc
Processor frequency580
Processor manufacturerMediaTek
Product colourBlack
Quality of Service (QoS) supportYes
Quick start guideYes
Reset buttonYes
RS-485 ports1
Security algorithmsAES-CCMP/EAP-TLS/OWE/TKIP/WPA2-Enterprise-PEAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK
Static routeYes
SummaryTeltonika RUT145. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS. Product type: Industrial router, Product colour: Black, Housing material: Aluminium
System event logYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Universal Plug and Play (UPnP)Yes
URL filteringYes
Wake-on-LAN readyYes
WAN connection typeRJ-45
Web-based managementYes
Weight140
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi Multimedia (WMM)/(WME)Yes
Wi-Fi standards802.11b/802.11g/Wi-Fi 4 (802.11n)
Width113.1
Specs
Category CodeWRO
Description

The RUT145 is an industrial router with RS485 communication for manufacturing and automation, specifically designed to bridge the communication gap between RS485 field devices and IP networks. It provides seamless Ethernet/Wi-Fi connectivity combined with a native RS485 multi-drop interface. The device, running on RutOS, offers powerful network security and industrial data collection tools. Its narrow, DIN-rail-mountable design and integration with the RMS platform ensure secure remote and cost-efficient remote management at scale.

Model nameRUT145
NameNET ROUTER 10/100M 2PORTS/RUT145 TELTONIKA
PictureUrlhttps://static.elko.cloud/ProductImages/2b6d408d-2731-496c-9bc9-c021aae0ac41.Jpeg
Product TypeIndustrial router
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/2b6d408d-2731-496c-9bc9-c021aae0ac41.Jpeg
Unit Calculated Volume0.000357
Unit Calculated Weight0.1
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.teltonika-networks.com/products/routers/rut145
