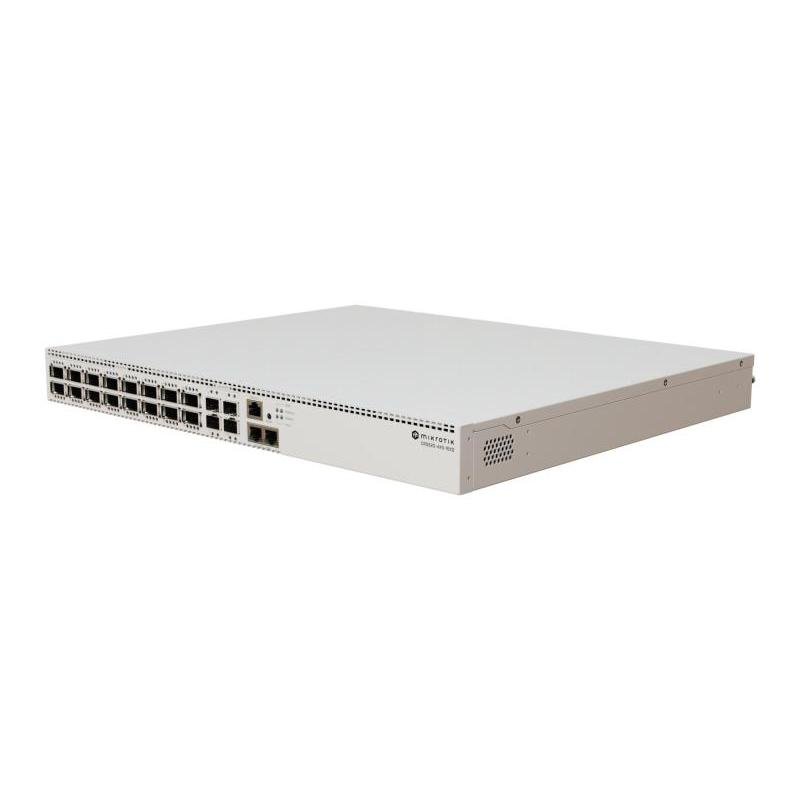

NET ROUTER/SWITCH 16PORT SFP28/CRS520-4XS-16XQ-RM MIKROTIK

NET ROUTER/SWITCH 16PORT SFP28/CRS520-4XS-16XQ-RM MIKROTIK
достава за 24h
NET ROUTER/SWITCH 16PORT SFP28/CRS520-4XS-16XQ-RM MIKROTIK
136,049ден.
  • Достапност: Има залиха
  • Бренд: MIKROTIK
  • Шифра: 420526
  • Гарантен рок: 12 месеци
  • Достава: 13-16 дена
1

Technical Specifications

  • Summary: Mikrotik CRS520-4XS-16XQ-RM. Console port: RJ-45. Rack mounting
  • Vendor Homepage: https://mikrotik.com/product/crs520_4xs_16xq_rm#fndtn-specifications
  • Name: NET ROUTER/SWITCH 16PORT SFP28/CRS520-4XS-16XQ-RM MIKROTIK
  • Category Code: SWI
  • Model name: CRS520-4XS-16XQ-RM
  • 10G Ethernet (copper) ports quantity: 2
  • Console port: RJ-45
  • QSFP28 ports quantity: 16
  • SFP28 ports quantity: 4
  • 10G support: Yes
  • Rack mounting: Yes
  • Operating system installed: RouterOS
  • Built-in processor: Yes
  • Processor frequency: 2000
  • Memory type: Flash
  • Internal memory: 4000
  • Flash memory: 128
  • Mean time between failures (MTBF): 200000
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240
  • AC input frequency: 50/60
  • Power consumption (max): 150
  • Operating temperature (T-T): -20 - 50
  • Width: 443
  • Depth: 367
  • Height: 44
  • Compliance certificates: CE/EAC/RoHS
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.02977
  • Unit Calculated Weight: 6.85
Specifications
10G Ethernet (copper) ports quantity2
10G supportYes
AC input frequency50/60
AC input voltage100 - 240
Built-in processorYes
Compliance certificatesCE/EAC/RoHS
Console portRJ-45
Depth367
Flash memory128
Height44
Internal memory4000
Mean time between failures (MTBF)200000
Memory typeFlash
Operating system installedRouterOS
Operating temperature (T-T)-20 - 50
Power consumption (max)150
Power supply includedYes
Processor frequency2000
QSFP28 ports quantity16
Rack mountingYes
SFP28 ports quantity4
SummaryMikrotik CRS520-4XS-16XQ-RM. Console port: RJ-45. Rack mounting
Width443
Specs
Category CodeSWI
Description

Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!

Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:

1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;

2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.

Model nameCRS520-4XS-16XQ-RM
NameNET ROUTER/SWITCH 16PORT SFP28/CRS520-4XS-16XQ-RM MIKROTIK
PictureUrlhttps://static.elko.cloud/ProductImages/4cef5229-83ba-409b-8389-50c59522efcb.Jpeg
Power sourceAC
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/4cef5229-83ba-409b-8389-50c59522efcb.Jpeg
Unit Calculated Volume0.02977
Unit Calculated Weight6.85
Units per Shipping Box1
Vendor Homepagehttps://mikrotik.com/product/crs520_4xs_16xq_rm#fndtn-specifications
